Can you convert RA to RZ?
Can you convert RA to RZ?

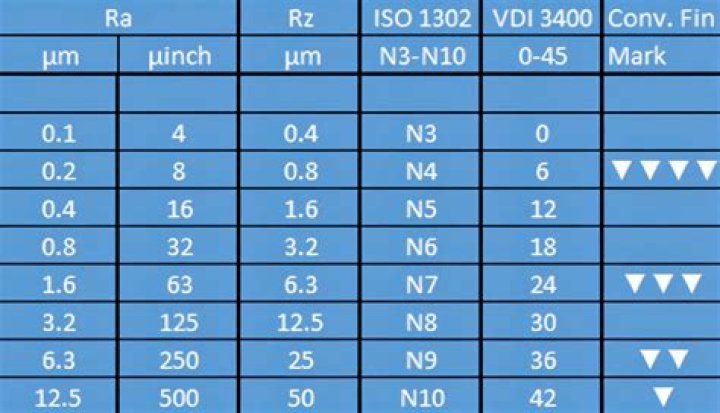

If you measured the Rz you might divide by 4-7 for an estimate of Ra (in the same units), but if you measured Ra you might multiply by 10-15 or more to estimate the Rz.
What is RA and RZ in surface roughness?
Ra and Rz are different parameters of roughness. Ra is the average roughness of a surface. Rz is the difference between the tallest “peak” and the deepest “valley” in the surface.
What is RA & RZ value?
According to doctor blades manufacturer Swedev’s website, “Ra is the arithmetical average value of all absolute distances of the roughness profile from the center line within the measuring length. Rz is the average maximum peak to valley of five consecutive sampling lengths within the measuring length.
What is RA in surface roughness?
1, Ra is the arithmetic average of the absolute values of the profile height deviations from the mean line, recorded within the evaluation length. Simply put, Ra is the average of a set of individual measurements of a surfaces peaks and valleys.
What is RA RT RZ?
Ra: Ra is the arithmetic average of the absolute values of the roughness profile ordinates. Rz: Rz is the arithmetic mean value of the single roughness depths of consecutive sampling lengths. Z is the sum of the height of the highest peaks and the lowest valley depth within a sampling length.
What is RA RZ Rmax?
The Single Roughness Depth (Rzi) is the vertical distance between the highest peak and the deepest valley within a sampling length. The Maximum Roughness Depth (Rmax) is the largest single roughness depth within the evaluation length. The units of Rz are micrometres or microinches.
What is difference between RZ and RT?
Rt – total height of the roughness profile: Difference between height Zp of the highest peak and depth Zv of the deepest valley within the evaluation length ln (Figure 7). Rz – mean roughness depth: Mean value of the five Rz i values from the five sampling lengths lr i within the evaluation length ln.
What is meant by RZ?
RZ (return-to-zero) refers to a form of digital data transmission in which the binary low and high states, represented by numerals 0 and 1, are transmitted by voltage pulses having certain characteristics. The signal state is determined by the voltage during the first half of each data binary digit .
What is RZ surface finish?
Surface Finish Definitions: Rz: Rz is the arithmetic mean value of the single roughness depths of consecutive sampling lengths. Z is the sum of the height of the highest peaks and the lowest valley depth within a sampling length.
How do you measure RZ surface finish?
Ten-point mean roughness (Rz) The distance between the peaks and valleys of the sampled line is measured in the y direction. Then, the average peak is obtained among 5 tallest peaks (Yp), as is the average valley between 5 lowest valleys(Yv). The sum of these two values is expressed in micrometres (µm).
What is the difference between Rmax and RZ?
The Mean Roughness Depth (Rz) is the arithmetic mean value of the single roughness depths of consecutive sampling lengths. The Maximum Roughness Depth (Rmax) is the largest single roughness depth within the evaluation length.
What is RZ din?
Rz DIN (Mean Roughness Depth)—also known as Rtm—is the mean of 5 maximum peak-to-valley roughness depths in 5 successive sampling lengths. Figure 2. Figure 2. Rz as Maximum Roughness Depth is determined by the sum of the largest peak height and the largest valley depth within a sampling length from a roughness profile.
