Can you move the clutch fork by hand?

You can’t move the pivot rod by hand, it’s supposed to take hundreds of lbs of pressure(hence why the car uses hydraulics to multiply the force your leg makes). It sounds like you need to PROPERLY bleed the clutch system.

How do you disengage a clutch fork?

The clutch fork and connecting linkage convert the movement of the clutch pedal to the back and forth movement of the clutch throw-out bearing. To disengage the clutch, the release bearing is moved toward the flywheel by the clutch fork.

Should there be play in the clutch fork?

The play allows the throwout bearing to be pulled away from the clutch fingers when the clutch pedal is not being pushed. Helps prevent the bearing from riding on the fingers, especially at higher RPM’s. Actually, mine has more as I have 1/4″ fork play at the bearing (which in my case is the minimum recommended.

How far does a clutch fork move?

The release fork moves about 1 inch using the slave cylinder on a new clutch. As the Clutch disc wearsout the pressure plate fingers will begin to protrude towards the release fork, then the release fork will have a lesser range of freeplay by finger.

What is a clutch pilot bearing?

The clutch pilot bearing connects the manual transmission input shaft to the engine crankshaft. The bearing allows the input shaft to rotate independently of the crankshaft.

What are the symptoms of a bad clutch release bearing?

Bad Throwout Bearing Symptoms

Strange Noises When Engaging The Clutch Pedal. Regular odd noise or throw-out bearing squeak is one of the primary symptoms of a bad throw-out bearing.
Compromised Clutch Pedal Feel.
Difficulty Changing Gears.
Total Clutch Failure.

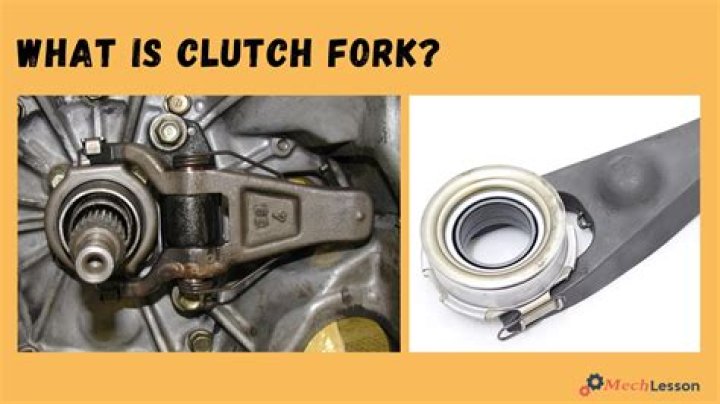

What is Release fork?

The release fork is a central element of the clutch system. The cylinder’s push rod operates the release fork which moves in a specified direction at the same time due to the membrane spring of the pressure plate through the release bearing (released or pressed clutch). This means that the driving plate can run freely.

How far should a clutch pressure plate move?

1/4 MM or . 010″ is fine. Plus; look at the clutch arm play, should be between 3/16″ to 3/8″ ‘arc’ play or movement prior to engagement with the heavy duty Clutch kit in place.

What are the signs of a bad pilot bearing?

A worn or damaged pilot bearing will make a whining or grinding noise. It will be very loud if the bearing is completely damaged….When a pilot bearing/bushing fails, a vehicle may exhibit:

No release;
The transmission may pop out of gear;
Noise;
Vibration; and.
Catastrophic failure of the transmission if not fixed.

Where is the pilot bearing?

crankshaft
The pilot bearing sits in a hole at the end of the engine’s crankshaft. Pilot bearings have three different designs: roller bearing, needle bearing, and.

What does a bad clutch bearing sound like?

You depress the clutch pedal and hear a loud grinding, rattling, whirling noise. You ease off the clutch pedal, and the noise starts to dissipate. This likely means a bad throwout bearing, which can negatively impact your vehicle clutch function.

What noise does a clutch release bearing make?

The clutch release or throwout bearing contains a collared bearing that spins along with the spinning pressure plate as the clutch pedal is depressed. A worn release bearing makes a squealing or growling sound heard from the transmissions clutch housing when the clutch pedal is depressed.

How to troubleshoot a Ford manual clutch?

The thicker the clutch or the better the condition of the clutch, the more the pedal must be depressed to release the clutch; conversely, the worse the clutch, the less the pedal must be pressed to release it. Press the pedal all the way to the floor.

Where is the clutch slave cylinder located on a clutch fork?

A clutch slave cylinder is a member of the clutch system that provides leverage assistance to the clutch fork. The clutch slave cylinder operates just like a hydraulic cylinder on a boom lift. The cylinder is connected to the clutch master cylinder located on the firewall next to the brake master cylinder through a hose.

What happens when the clutch is forced down on a Ford?

When these arms are forced down, they allow the pressure plate to move in the opposite direction and release tension on the clutch, releasing it.

Do you need to replace the Throwout bearing on a clutch?

When replacing the clutch assembly it is highly advised to replace the throwout bearing because it has a high failure rate. Some throwout bearings are attached to the clutch slave cylinder which should be replaced as a unit. 8.

How do you reattach a clutch fork?

After you’ve marked it accurately, use the fine tooth saw to cut the ball stud. After cutting it carefully, replace the ball stud back into the bell housing. After you’ve secured the ball stud into the bell-housing, apply some grease on it and reattach the clutch fork to it.

What’s the slave cylinder on a clutch fork?

The slave cylinder is a small cylinder on the transmission and it pushes onto the clutch fork. Remove the bolts on the slave cylinder using your wrench and take the cylinder off. Do not push on the clutch pedal from the car after you have performed this step. Follow correct procedure for your vehicle to remove transmission.

Do you have to put clutch fork in bell housing?

Now you will need to insert the clutch fork ball into the bell housing. After you do this, some part of the excess ball stud will be protruding fro the bell-housing. Don’t worry when you see this. This is normal and this is how your clutch fork installation process will work.

How to troubleshoot a hydraulic clutch on a Ford truck?

newer truck out of a junk yard. Pull the pin. Take the push rod off the drop down arm. Inspect the plastic bushing and replace it if it looks at all worn. rod from a junkyard. Just a tiny little bit of slop at this critical cylinder. could cause clutch slippage. All you need to do is take out all the slop
