Can you use AutoCAD for electrical drawings?

Can you use AutoCAD for electrical drawings?

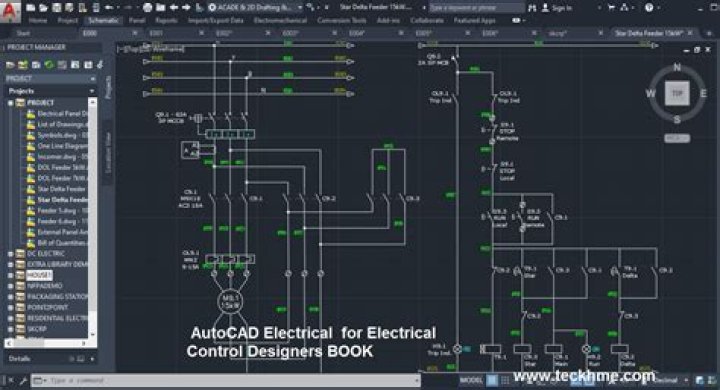

Subscribe to AutoCAD or AutoCAD LT and efficiently create electrical drawings. AutoCAD subscriptions include the AutoCAD Electrical toolset, made especially for electrical design.

Where is Project properties in AutoCAD?

In the project selector, select the project for which to define the settings, right-click, and click Project Properties. The Project Properties dialog box is displayed. Under General define or change the following properties as needed. The project name is defined when you create the project.

Can I use AutoCAD as AutoCAD Electrical?

Many AutoCAD Electrical functions are powerful AutoCAD macros, and other functions use AutoCAD programming languages to create electrical industry-specific commands. It automates the drawing process. You can edit AutoCAD Electrical drawings with AutoCAD or AutoCAD LT without corrupting AutoCAD Electrical functionality.

Which tab S allows you to set project properties?

The following steps are for setting project properties….To Set Project or Drawing Properties

• Click Project tab Project Tools panel Manager.
• In the Project Manager, right-click the project name, and select Properties.

How do you make electrical symbols in AutoCAD?

Symbol Builder works in the AutoCAD block editor environment. Use the Symbol Builder Attribute Editor palette to insert the necessary attributes for the selected symbol type. Draw the graphics needed for the symbol. Follow the AutoCAD Electrical toolset naming conventions when saving a schematic symbol.

How can I use AutoCAD Electrical in AutoCAD 2021?

Follow these steps to install content from these manufacturers.

1. Open the Add or Remove Programs tool in your Control Panel.
2. Select AutoCAD Electrical toolset.
3. Click Change/Remove.
4. Click Add/Remove Features.
5. Click Next on the first screen.
6. Select AB and Siemens on the Manufacturer Contents Selection screen and click Next.

How do I set properties in Autocad?

To set drawing properties, open the Project Manager, then right-click the drawing name and select Properties Drawing Properties, or click the Drawing Properties tool. In the Project Manager, right-click the project name, and select Properties. Note: You can also set project properties when you create a project.

How do you plan an electrical layout?

How to Draft an Electrical Plan?

1. Step 1: Know Your Layout. Either use a software or a graph paper and make a scale drawing of the different rooms.
2. Step 2: Plan it in Advance. After finalizing your layout, focus on your electrical plan.
3. Step 3: Use Interior Layout as Your Starting Point.
4. Step 4: Walk Through Your Plan.

How do I create an electrical library in AutoCAD?

On the AutoCAD Electrical toolset Installation Wizard, click Add or Remove Features. On the Add/Remove Features page, click Next. On the Manufacturer Content Selection page, click Next. On the Select Symbol Libraries page, select the libraries you wish to install and click Next.
