Does DMSO show up on NMR?
Does DMSO show up on NMR?

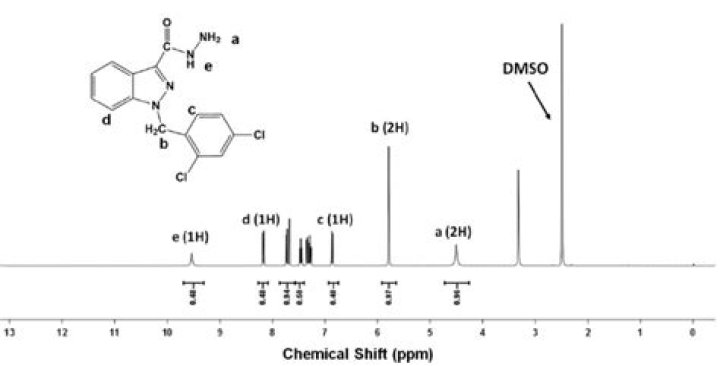

Use in NMR spectroscopy Pure deuterated DMSO shows no peaks in 1H NMR spectroscopy and as a result is commonly used as an NMR solvent. However commercially available samples are not 100% pure and a residual DMSO-d5 1H NMR signal is observed at 2.50ppm (quintet, JHD=1.9Hz).
Does boron couple to hydrogen?
The coupled 11B NMR spectra generally shows a B-H coupling, unless there is a fast exchange of the hydrogens on the NMR time scale. Since the spin of hydrogen is 1/2, the number of peaks in the multiplet is one greater than the number of hydrogens attached to the boron.
What is the N 1 rule?
The (n+1) Rule, an empirical rule used to predict the multiplicity and, in conjunction with Pascal’s triangle, splitting pattern of peaks in 1H and 13C NMR spectra, states that if a given nucleus is coupled (see spin coupling) to n number of nuclei that are equivalent (see equivalent ligands), the multiplicity of the …
Is boron NMR active?
Boron has two naturally occurring NMR active nuclei. Both nuclei have spins of greater than ½ and are quadrupolar. Regular NMR tubes are made of borosilicate glass and therefore contain boron. As a result there is a broad signal in the spectrum arising from the tube.
Why DMSO-d6 NMR peak?
As dmso is highly miscible with water, during handling DMSO-d6 absorbs moisture and the peak at 3.33 is due to the moisture present. If the DMSO-d6 is being used for long time, usually the water peak comes bigger than the residual solvent peak in NMR.
Why does DMSO show Quintet NMR?
In DMSO-d5, the hydrogen atom is adjacent to two deuterium atoms (NMR active nucleus with I=1). Hence, the multiplicity of its signal in an NMR spectrum is, 2(1)(2)+1=5. Agreed, the 2 adjacent deuteriums with spin I=1 are causing the quintet multiplicity.
What can boron combine with?
Boron reacts vigorously with the halogens fluorine, F2, chlorine, Cl2, bromine, Br2 to to form the trihalides boron(III) fluoride, BF3, boron(III) chloride, BCl3, and boron(III) bromide, BBr3 respectively.
What elements does boron bond with?
Boron also forms important compounds with two other elements, carbon and nitrogen. Boron carbide (B 4 C) and boron nitride (BN) are important compounds because of their hardness.
What is DDD in NMR?
Description: A doublet of doublets of doublets (ddd) is a pattern of up to eight lines that results from coupling to three protons (or other spin 1/2 nuclei). If the two smaller coupling constants are the same, a doublet of triplets (dt) occurs.
What is the frequency of boron?
32.084 MHz
NMR Periodic Table: Boron NMR. A typical reference sample is BF3. OEt2 (absolute frequency of 32.084 MHz with respect to 100.00 MHz).
What is NMR atom?
Nuclear magnetic resonance (NMR) is a physical phenomenon in which nuclei in a strong constant magnetic field are perturbed by a weak oscillating magnetic field (in the near field) and respond by producing an electromagnetic signal with a frequency characteristic of the magnetic field at the nucleus.
