How a radio works step by step?

How a radio works step by step?

What is radio?

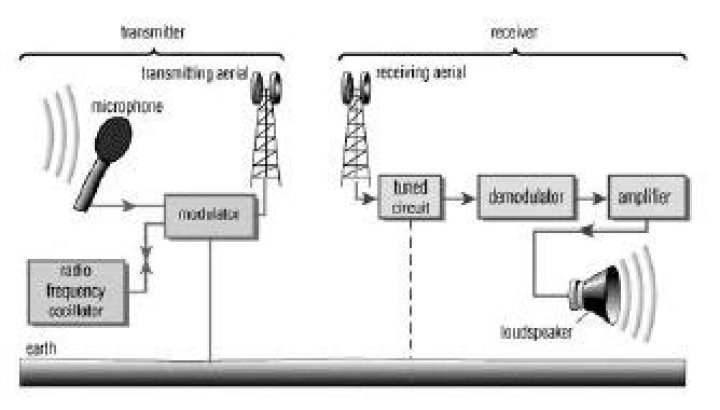

1. Electrons rush up and down the transmitter, shooting out radio waves.
2. The radio waves travel through the air at the speed of light.
3. When the radio waves hit a receiver, they make electrons vibrate inside it, recreating the original signal.

How does radio broadcasting work?

Beginning with basics, radio broadcasting performs as a single transmission that is carried through radio waves with the intention of reaching an audience. An interesting component to radio is that there are different signal waves that can be transmitted; this is where AM and FM radio is derived.

What are the parts of a radio?

Today’s radio consists of an antenna, printed circuit board, resistors, capacitors, coils and transformers, transistors, integrated circuits, and a speaker. All of these parts are housed in a plastic case. An internal antenna consists of small-diameter insulated copper wire wound around a ferrite core.

How do radio waves transmit information?

How do radio waves carry information? At one end, a transmitter “encodes” or modulates messages by varying the amplitude or frequency of the wave – a bit like Morse code. At the other, a receiver tuned to the same wavelength picks up the signal and ‘decodes’ it back to the desired form: sounds, images, data, etc.

How does a transistor radio work?

The function of transistors in radios is straightforward. Sounds are recorded through a microphone and turned into electrical signals. Those signals travel through a circuit, and the transistor amplifies the signal, which is subsequently much louder when it reaches a speaker.

How does an FM transmitter work?

How do FM transmitters work? An FM transmitter acts like a basic radio transmitter, similar to high-powered versions radio stations use. It sends a signal to a specific frequency. On the other end, it connects wirelessly to a smart device so data is transferred without the need for a cord.

What does a radio wave look like?

A radio wave is not like an invisible string with a sinusoidal shape that moves at the speed of light. A radio wave is made of an electric field and a magnetic field. Think of that as a property of the space. For instance, the property “color” of a banana is “yellow”.

What is radio broadcast journalism?

Broadcast journalism is the field of news and journals which are broadcast by electronic methods instead of the older methods, such as printed newspapers and posters. It works on radio (via air, cable, and Internet), television (via air, cable, and Internet) and the World Wide Web.

How did radio evolve?

Guglielmo Marconi developed an early version of the wireless radio. In fact, long-distance electronic communication has existed since the middle of the 19th century. Early radios acted as devices for naval ships to communicate with other ships and with land stations; the focus was on person-to-person communication.

How was the radio created?

In the mid 1890s, building on techniques physicists were using to study electromagnetic waves, Guglielmo Marconi developed the first apparatus for long distance radio communication. On 23 December 1900, the Canadian inventor Reginald A. By 1910, these various wireless systems had come to be called “radio”.

What is an IF transformer?

What are IF amplifier filters? IF amplifier transformers are simply tunable inductors, usually with an integral fixed capacitor, and are typically used inside cheaper transistor radios. Mostly they are used as “synchronously tuned filters” because each stage is coupled by an active device.

What is the difference between transistor and radio?

A transistor is a semiconductor device used in electronic circuits as to function as “on” and “off” switching and amplifying device in the electronic circuits. Radio is a device which transmit and amplifies signals. The modern radio uses transistor since it is smaller in size.
