How an ATS works automatic transfer switch?
How an ATS works automatic transfer switch?

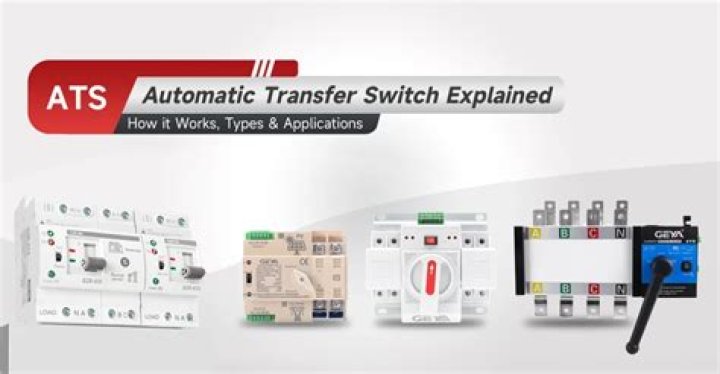

How Does an Automatic Transfer Switch Work? An automatic transfer switch, or ATS switch, connects your standby generator to your home. When the transfer switch detects a power outage, it switches your home to generator power. Afterward, it detects when the power is restored and switches your home back to utility power.
What is the difference between an ATS and an STS?
A Static Transfer Switch (STS) utilizes a static electronic component (SCR), which permits a transfer in less than four milliseconds (1/4 of an electrical cycle). On the other hand, an Automatic Transfer Switch (ATS) relies on moving parts, and makes a significantly slower transfer than Static Transfer Switches.
What is the application of ATS automatic transfer switch )?
An automatic transfer switch (ATS) is a device that transfers a power supply from its primary source automatically to a backup generator when it senses a failure or outage occurring in the primary source until utility power is restored.
What are the components of ATS?
The three (3) functional components of a transfer switch are:
- Power switching device to shift the load circuits to and from the power source.
- Transfer Logic Controller to monitor the condition of the power sources and provide the control signals to the power-switching device.
How do I choose an automatic transfer switch?
The automatic transfer switch you select should be capable of supplying maximum current for up to 3 or, even more, hours. The current should be carried continuously from the power source. The current ratings usually range between 30 and 400 Amps. It is important that the rating matches the use by the main breaker.
What are the two types of automatic transfer switches?
There are two types of automatic transfer switches, circuit breaker and contactor. The circuit breaker type has two interlocked circuit breakers, so only one breaker can be closed any anytime. The contactor type is simpler design that is electrically operated and mechanically held.
What is ATS control panel?
What is a Automatic Transfer Switch ATS panel? An Automatic transfer switch panel, or ATS panel, is a type of transfer panel used with a diesel generator to automatically switch between the mains and generator in the event of a power failure. The generator will start / stop automatically depending on the mains supply.
What is a STS in a data center?
Static Transfer Switch (STS) is Static Electric device which designed to automatically transfer load for preferred power source to standby power source connected to its input in case of disruption in former and visa versa without any interruption of server room load.
How do you make ATS?
How to Create an ATS Resume (Step-By-Step)
- Step 1: Pick the right resume format.
- Step 2: Choose the appropriate file type.
- Step 3: Use an ATS Resume Template.
- Step 4: Use a simple layout*
- Step 5: Label your sections right.
- Step 6: Tailor your resume with resume keywords.
What UL 1008?
UL 1008 was established in 1970 by Underwriters Laboratories to guard against transfer switch failures and resultant potential fires. A performance standard as well as a design and construction standard, UL 1008 requires transfer switches to undergo rigorous testing by an independent testing and certifica- tion agency.
How does an automatic transfer switch work?
Automatic transfer switches work by switching the load between the power grid and the generator. When these switches sense the available power drop from the power grid, they switch the load to the generator and signal the generator to start.
What are the components of automatic transfer switch?
The automatic transfer switch equipment includes a changeover switch made of two contactrs, an automatic mains failure controller, terminal blocks, power relays and miscellaneous electrical components like fuses, battery charger and electronic interface boards .
How to install a Generac transfer switch?
You should check the area near your panel box. Try to locate an easy installation spot where you can mount the switch into wall.
Where is the automatic transfer switch?
An Automatic Transfer Switch (ATS) is often installed where a backup generator is located, so that the generator may provide temporary electrical power if the utility source fails. As well as transferring the load to the backup generator, an ATS may also command the backup generator to start, based on the voltage monitored on the primary supply.
