How are spherical coordinates written?
How are spherical coordinates written?
In summary, the formulas for Cartesian coordinates in terms of spherical coordinates are x=ρsinϕcosθy=ρsinϕsinθz=ρcosϕ.
What are the three spherical coordinates?

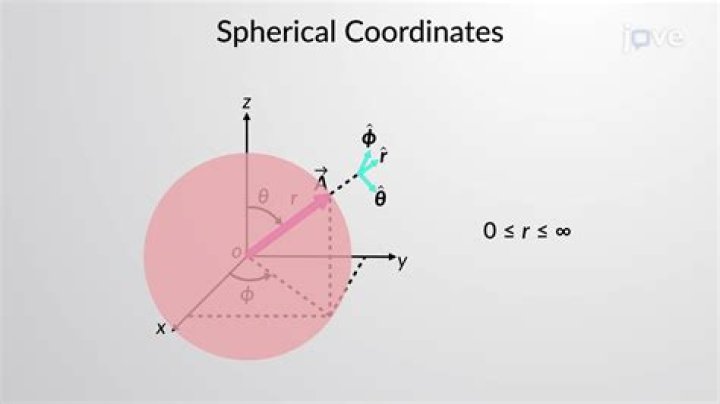

Spherical coordinates (r, θ, φ) as commonly used in physics (ISO 80000-2:2019 convention): radial distance r (distance to origin), polar angle θ (theta) (angle with respect to polar axis), and azimuthal angle φ (phi) (angle of rotation from the initial meridian plane). The symbol ρ (rho) is often used instead of r.
What do spherical coordinates mean?
spherical coordinate system, In geometry, a coordinate system in which any point in three-dimensional space is specified by its angle with respect to a polar axis and angle of rotation with respect to a prime meridian on a sphere of a given radius.
Which of the following is the example of spherical system?
| Q. | Example of spherical system in the following is |
|---|---|
| B. | charge in box |
| C. | charge in dielectric |
| D. | uncharged system |
| Answer» a. charge in space |
Are polar and spherical coordinates the same?
Spherical Coordinates Theta is the same as the angle used in polar coordinates. Phi is the angle between the z-axis and the line connecting the origin and the point.
What is the Z direction in spherical coordinates?
The spherical coordinate system is defined with respect to the Cartesian system in Figure 4.4. 1. The spherical system uses r, the distance measured from the origin; θ, the angle measured from the +z axis toward the z=0 plane; and ϕ, the angle measured in a plane of constant z, identical to ϕ in the cylindrical system.
What is the scale factor of spherical coordinates?
The orthogonal basis vectors are br = (cos θ, sin θ), bθ = (−r sin θ, r cos θ). The scale factors are hr = 1 and hθ= r.
What is the scalar factor of spherical coordinates?
i in spherical coordinates with r = 4m and θ = π/2. Transform the vector (4,-2,-4) at (1,2,3) into spherical coordinates. The scalar factor of Cartesian system is unity. State True/False….
| Q. | The scalar factor of spherical coordinates is |
|---|---|
| A. | 1, r, r sin θ |
| B. | 1, r, r |
| C. | r, r, 1 |
| D. | r, 1, r |
How do you find polar coordinates?
Summary: to convert from Cartesian Coordinates (x,y) to Polar Coordinates (r,θ):
- r = √ ( x2 + y2 )
- θ = tan-1 ( y / x )
