The above eight measurements of Hall voltages V24P, V42P, V13P, V31P, V24N, V42N, V13N, and V31N determine the sample type ( n or p) and the sheet carrier density ns. The Hall mobility can be determined from the sheet density ns and the sheet resistance RS obtained in the resistivity measurement.
How to calculate and solve questions on resistivity?
(2) A wire P has half the diameter and half the length of a wire Q of similar material. The ratio of the length of the resistance of P to that of Q is? (3) The resistance of a 5m uniform wire of cross-sectional area 0.2 x 10 -6 is 0.425 ohms.
How is current density determined by the Hall effect?
There for current density is given by Fig.1 Schematic representation of Hall Effect in a conductor. If the magnetic field is applied along negative z-axis, the Lorentz force moves the charge carriers (say electrons) toward the y-direction. This results in accumulation of charge carriers at the top edge of the sample.
How are conductivity and the Hall effect measured?
CONDUCTIVITY AND THE HALL EFFECT 1. OBJECTIVE The conductivity, σ, of a silicon sample at room temperature will be determined using the van der Pauw method. The Hall Effect voltage, V H , and Hall coefficient, R H , for the same sample will be measured using a magnetic field. These measurements will enable the student to determine: the
The above eight measurements of Hall voltages V24P, V42P, V13P, V31P, V24N, V42N, V13N, and V31N determine the sample type ( n or p) and the sheet carrier density ns. The Hall mobility can be determined from the sheet density ns and the sheet resistance RS obtained in the resistivity measurement.
How to calculate the resistivity of a material?

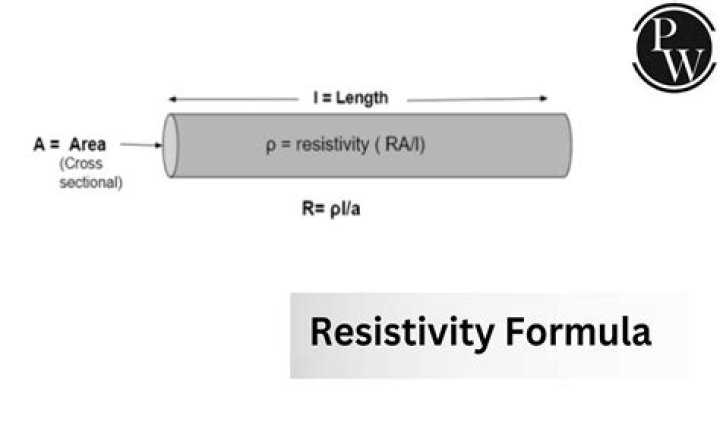

How to calculate resistivity 1 Resistance of the material 2 Length of the material 3 And the cross-sectional area of the material which is
When to use a hall bar for resistance measurement?
Hall bar is a good geometry for making resistance measurements since about half of the voltage applied across the sample appears between the voltage measurement contacts. For this reason, Hall bars of similar geometries are commonly used when measuring magnetoresistance or Hall mobility on samples with low resistances.
How is current flow measured in a hall?
Current flow is one dimensional Current flows between contacts 5 and 6 Hall voltage measured between contacts 1 and 2 or contacts 4 and 3 Resistivity measured between contacts 1 and 4 or contacts 2 and 3
