How can I check SMPS power?
How can I check SMPS power?

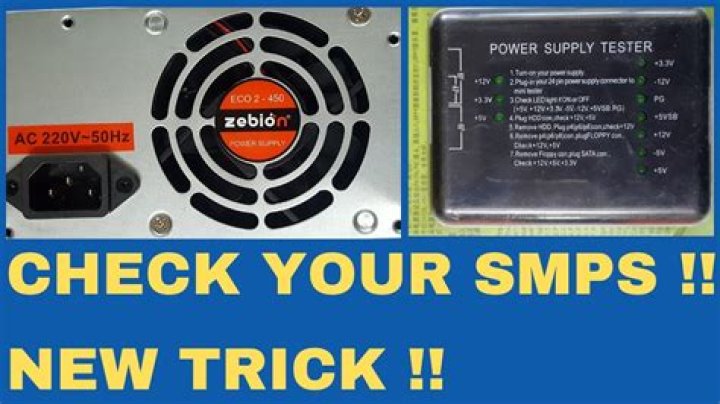

How to test the SMPS (switch-mode power supply) functionality – Lenovo Desktops & All-In-Ones
- Remove the connections that are connected to motherboard from SMPS.
- Use a paper clip and bend it in U shape.
- Connect the Power cable and Power on the SMPS.
- The SMPS Fan Will Spin, if it is working.
What is selection criteria for SMPS?
When selecting an SMPS, you will need to know input voltage, output voltage, maximum current draw, form factor, and purpose (for regulatory reasons) of the power supply.
How do I select SMPS in Control Panel?
Check that the selected SMPS can support parallel and series connection whenever required. Alarm Output: A Relay contact is provided on the SMPS to gauge SMPS condition. Life Expectancy/MTBF Value: More the MTBF value better is the life of the SMPS, so select your SMPS wisely.
What is the power factor of SMPS?
Simplifying Power Factor Correction in SMPS
| Name | Symbol | Value |
|---|---|---|
| Rated output power to PWM | Pout | 650 W |
| Target efficiency | h | 92% + |
| Minimum bus operating voltage | VBUSmin | 300 V |
| Inductor ripple current | IRipple | 20% to 30% IPk |
What is SMPS voltage?
SMPS(Switched Mode Power Supply). It’s a module that consists of multiple inductors, capacitors and semiconductor devices such as diodes and MOSFETs. It converts AC Voltage to DC Voltage. When you change the switching frequency it will change the output voltage.
What is the output voltage of SMPS?
SMPS Power Supply, Output Voltage: Dc 12 V, Input Voltage: Ac 150 To 280 V.
Which topology best SMPS?
If you choose a non-isolated version (since the voltage difference is small now) then a Buck-Boost converter is the best, but remember output voltage polarity will be reversed, so take care in power and feedback connections. A non-isolated version will of course, give the highest efficiency.
Why are transformers used in SMPS?
An SMPS transformer is used in a switching power supply to provide galvanic isolation. The SMPS transformer in an isolated power supply provides a clear barrier that prevents dangerous high voltages from passing to the output, providing safety from electrical shock at the output.
How do I calculate my Plc panel power consumption?
If all channels are “1” you spend 7*32 = 224 mA. Also module electronics consume some power = 15 mA. So current consumption total = 239 mA. At 24V you get 0,239*24 = 5,736 W.
How much power does a PLC use?
The common current ratings for PLC’s are anywhere from 2 to 10 amps for smaller systems and up to 50 amps for larger, more powerful controllers.
What is SMPS and its voltage?
SMPS or switched mode power supply is an electronics device that is used to convert AC to DC, AC to AC, DC to DC and DC to AC voltages. The circuit consists of transformer, rectifier, voltage regulator and a filter. The input supply is turned On and Off by MOSFETs and outputs a high efficiency, regulated voltage.
What is SMPS with block diagram?
Switched Mode Block Diagram 1 shows a block diagram example of a typical SMPS with an AC Mains (line) input and a regulated DC output. The output rectification and filter are isolated from the High Frequency switching section by a high frequency transformer, and voltage control feedback is via an opto isolator.
