How can you tell this is a APIPA address?

How can you tell this is a APIPA address?

Type “ipconfig /all” (without the quotation marks), and then hit the ENTER key. If the ‘Autoconfiguration Enabled’ line says “Yes”, and the ‘Autoconfiguration IP Address’ is 169.254. x.y (where x.y is the client’s unique identifier), then the computer is using APIPA.

What do APIPA addresses start with?

APIPA assigns a class B IP address from 169.254. 0.0 to 169.254. 255.255 to the client when a DHCP server is either permanently or temporarily unavailable.

What is apipa IP address?

Automatic Private IP Addressing (APIPA) is a feature of Windows-based operating systems (included in Windows 98, ME, 2000, and XP) that enables a computer to automatically assign itself an IP address when there is no Dynamic Host Configuration Protocol (DHCP) server available to perform that function.

Is APIPA a link local address?

With APIPA, the HPDU automatically configures a link-local IP address and a link-local host name when it cannot obtain a valid IP address from any DHCP server in the TCP/IP network. Only IT devices connected to the same subnet can access the HPDU using the link-local address/host name.

Can you ping an APIPA address?

APIPA addresses do not fall into any of the private IP address ranges defined by the Internet Protocol standard and are restricted for use on local networks only. Like private IP addresses, ping tests or other connection requests from the internet and other outside networks cannot be made to APIPA devices directly.

Why am I getting an APIPA address?

APIPA stands for Automatic Private IP Addressing (APIPA). It is a feature or characteristic in operating systems (eg. Windows) which enables computers to self-configure an IP address and subnet mask automatically when their DHCP(Dynamic Host Configuration Protocol) server isn’t reachable.

Is a loopback address?

A loopback address is a special IP address, 127.0. 0.1, reserved by InterNIC for use in testing network cards. This IP address corresponds to the software loopback interface of the network card, which does not have hardware associated with it, and does not require a physical connection to a network.

What causes APIPA address?

x.x.x IP address. This address results from a built in feature of windows called automatic private IP address(APIPA). When your computer is unable to find a DHCP server the APIPA service will assign itself a 169. According to Microsoft, the APIPA service checks for a DHCP server every five minutes.

What is bad IP address?

A bad IP means you’re getting a 169. x.x.x address from your modem internet. Which means that your computer knows that internet is connected but for whatever reason it’s not resolving a valid IP. In other words it can’t get out to the world and the world can’t come in.

Is apipa the same as link local?

Link-local addresses are most often assigned automatically with a process known as stateless address autoconfiguration or link-local address autoconfiguration, also known as automatic private IP addressing (APIPA) or auto-IP.

How do I fix my APIPA address?

ISSUE : “169. x.x.x / APIPA IP address problems”

1. Reason:
2. Cause.
3. Releasing the IP address.
4. Disabling the Ethernet Adapter.
5. Check the Ethernet cable.
6. Disable antivirus and firewall applications.
7. Restarting the QoS packet scheduler Protocol.
8. Restarting the DHCP service.

Why would you ping the loopback address?

In a TCP/IP network, the loopback IP address is 127.0. 0.1, and pinging this address will always return a reply unless the firewall prevents it. The loopback address allows a network administrator to treat the local machine as if it were a remote machine.

How does APIPA check for unique IP address?

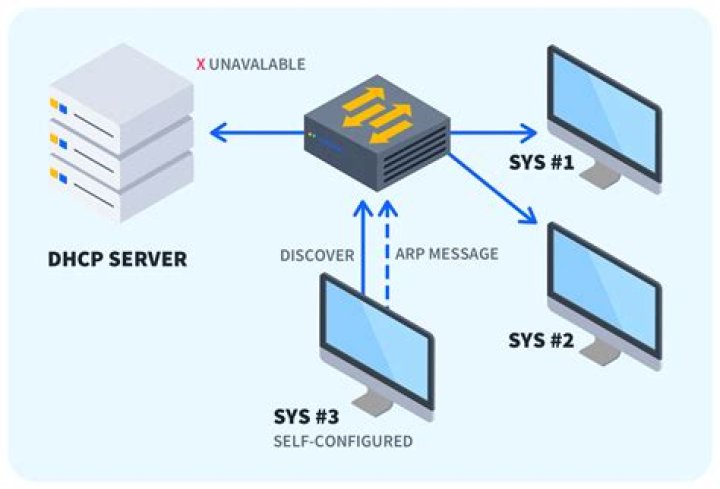

After an IP address is obtained using APIPA, the client will then verify that their IP address is a unique one on the LAN. This is done utilizing ARP. According to Microsoft guidelines, APIPA will also check regularly to see whether the DHCP servers are available.

How to enable APIPA on a wireless network?

Type address of the device into your web browser. Make sure that your device name is shown at the upper left. Press the Right arrow key. Click on the Network tab. Click Wired LAN or Wireless. Click TCP/IP. Uncheck Enable APIPA. Click Submit.

What is the IPv4 address for APIPA?

APIPA address is a Class B IPv4 address in the range of 169.254.0.1 to 169.254.255.254. The subnet mask used is Class B default subnet mask of 255.255.0.0.

When do I need to use APIPA for DHCP?

It is a Microsoft’s terminology for the address auto configuration as it allows a Local Area Network (LAN) computer to give itself a unique IP address when Dynamic Host Configuration Protocol (DHCP) is unavailable. With APIPA, DHCP clients can obtain IP addresses when DHCP servers are non functional.

How many IP addresses are there for APIPA?

The IP address range for APIPA is (169.254.0.1 to 169.254.255.254) having 65, 534 usable IP addresses, with the subnet mask of 255.255.0.0.

Where can I find APIPA on my computer?

APIPA exists in all modern versions of windows except Windows NT. It is enabled on all DHCP clients in Windows unless the computer’s Registry is modified to disable it. APIPA can also be enabled on individual network adaptors. It is also called DHCP failover mechanism (for local networks) or Auto-IP or AutoNet.

It is a Microsoft’s terminology for the address auto configuration as it allows a Local Area Network (LAN) computer to give itself a unique IP address when Dynamic Host Configuration Protocol (DHCP) is unavailable. With APIPA, DHCP clients can obtain IP addresses when DHCP servers are non functional.

How is APIPA used in a small network?

APIPA simplifies the assignment of IP address and subnet-mask configuration information to hosts in small networks. When APIPA is used, the operating system allows the assignment of a unique IP address to each station on a small local area network (LAN).
