How do I enable IIS client certificate mapping authentication?

How do I enable IIS client certificate mapping authentication?

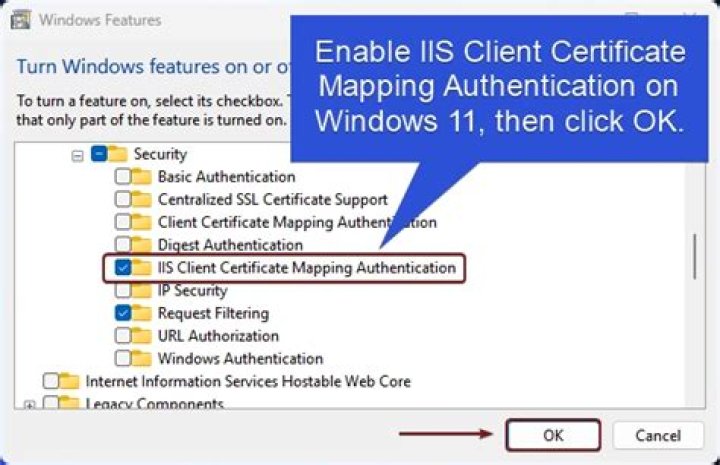

In Control Panel, click Programs and Features, and then click Turn Windows features on or off. Expand Internet Information Services, expand World Wide Web Services, expand Security, and then select IIS Client Certificate Mapping Authentication. Click OK. Click Close.

How does IIS validate client certificate?

The certificate is validated during security handshake for establishing SSL connection. When IIS is used to host WCF service this validation is done outside of WCF (in case of self hosting you can use custom certificate validation).

How can I get client certificate in IIS?

In IIS Manager, locate the Web application for which you want to change the SSL setting.

1. In Features View, double-click SSL Settings.
2. On the SSL Settings page, select the Accept option under Client certificates.
3. In the Actions pane, click Apply.

How do you implement client certificate authentication?

1. Purchase and Generate a Client Authentication Certificate.
2. Complete the Validation Process.
3. Download or Export the User’s Client Certificate.
4. Import the Client Authentication Certificate to Your OS & Browser Certificate Stores.
5. Configure Your Server to Support Client Authentication.
6. Test Your Certificate to Ensure It Works.

What is URL authorization in IIS?

IIS 7.0 and above uses URL Authorization. It allows you to put authorization rules on the actual URL instead of the underlying file system resource. Additionally, the IIS URL Authorization configuration is stored in web. config files– you can distribute authorization rules with the application content.

What is require SSL in IIS?

“Require SSL” just means it will only let the client access this application via https:// (and possibly try to upgrade from http:// to https:// if not, but this is not a complete solution). This is rather independent of the client certificate settings. (If you’re not using client certs, just choose ignore.)

How does client certificate auth work?

Just like in server certificate authentication, client certificate authentication makes use of digital signatures. For a client certificate to pass a server’s validation process, the digital signature found on it should have been signed by a CA recognized by the server. Otherwise, the validation would fail.

What is the difference between client certificate and server certificate?

Server certificates are used to authenticate server identity to the client(s). Client certificates are used to authenticate the client (user) identity to the server. Server certificates encrypt data-in-transit. No encryption of data takes place in case of Client certificates.

How do you set up a client certificate?

To install the client certificate in Chrome:

1. Open Settings.
2. Click Show advanced settings.
3. Under HTTPS/SSL, click Manage certificates.
4. Click Import.
5. Import the certificate you created earlier in Install the Client Certificate in a Web Browser.

How do you verify client certificate authentication?

How to Verify that Your Client Certificate Is Installed

1. In Internet Explorer, go to Internet Options.
2. In the Internet Options window, on the Content tab, click Certificates.
3. In the Certificates window, on the Personal tab, you should see your Client Certificate.

How do I configure IIS authorization and manager permissions?

In the Home pane, double-click IIS Manager Permissions. On the IIS Manager Permissions page, click Allow User… in the Actions pane. In the Allow User dialog box, choose IIS Manager, then click Select… In the Users dialog box, highlight the user account that you want to allow, and then click OK.

What is authorization rule?

An authorization rule specifies the policy that applies to an object and that is based on various conditions, such as context and environment. Each authorization rule has a unique name and can be applied to multiple objects in a domain.
