How do I find FortiGate configuration file?

How do I find FortiGate configuration file?

To download a configuration file:

1. Go to Device Manager > Device & Groups and select a device group.
2. In the lower tree menu, select a device.
3. In the dashboard, locate the Configuration and Installation Status widget.
4. In the Total Revisions row, click Revision History.
5. Select the revision you want to download.

How do you set up FortiSwitch?

Configure the FortiLink interface

1. Go to WiFi & Switch Controller > FortiLink Interface.
2. Select + in the Interface members field and then select the ports to add to the FortiLink interface.
3. Configure the IP/Network Mask for your network.
4. Select Automatically authorize devices.
5. Select Apply.

How do I backup my FortiSwitch config?

Go to System > Config > Backup….Select one of the Configuration Save options:

1. Automatically Save—The system automatically saves the configuration after each change.
2. Manually Save—You must manually save configuration changes from the Backup link on the System > Dashboard.

How do I import a config file into FortiClient?

To import a FortiClient profile:

1. Go to FortiClient Manager > FortiClient Profiles.
2. Select a profile package, and click Import. The Import dialog box is displayed.
3. Enter the following information:
4. Click OK. The profile is imported into the selected profile package.

How do I open a file config?

Programs that open CONFIG files

1. File Viewer Plus.
2. Microsoft Visual Studio 2019.
3. Adobe Dreamweaver 2021.
4. Microsoft Notepad. Included with OS.
5. Microsoft WordPad. Included with OS.

How do I access FortiSwitch GUI?

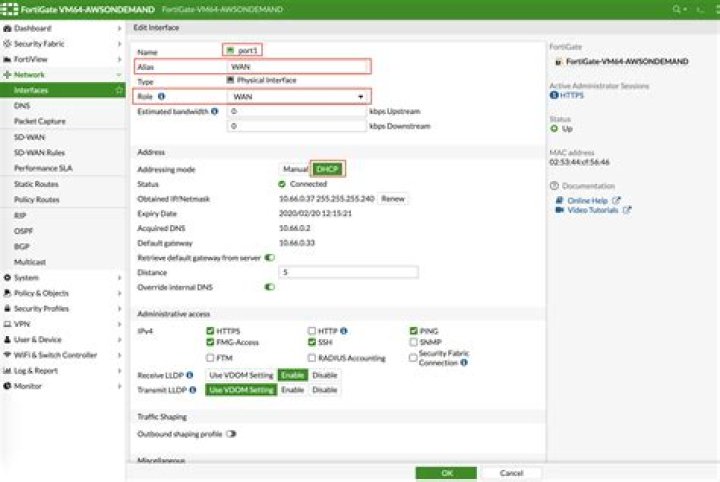

Using the GUI: Go to System > Network > Interface > Physical, select Edit for the internal interface. In the IP/Netmask field, enter the IP address and netmask. Select the appropriate protocols to connect to the interface for administrative access.

How do I monitor FortiSwitch?

To monitor FortiSwitch system information and receive FortiSwitch traps, you must first compile the Fortinet and FortiSwitch management information base (MIB) files….Using the GUI:

1. Go to System > Network > Interface > Physical.
2. Select Edit for the mgmt interface.
3. Select SNMP in the access section.
4. Select Update.

How do I save FortiGate command line configuration?

By default, a FortiGate does autosave the configuration, every time you press Apply or OK in the GUI. On the CLI the config becomes active and is saved when you leave a config block by typing next or end.

How do I restore FortiGate configuration?

To restore the FortiGate configuration using the GUI:

1. Click on the user name in the upper right-hand corner of the screen and select Configuration > Restore.
2. Identify the source of the configuration file to be restored: your Local PC or a USB Disk.
3. Click Upload, locate the configuration file, and click Open.

How do I change my FortiClient settings?

To enable FortiClient FSSO services on the interface:

1. Select System > Network > Interfaces. Select the interface and select Edit from the toolbar. The Edit Network Interface window opens.
2. Select the checkbox to enable FortiClient FSSO.
3. Select OK to save the setting.
