How do I know what Differential my Jeep has?

How do I know what Differential my Jeep has?

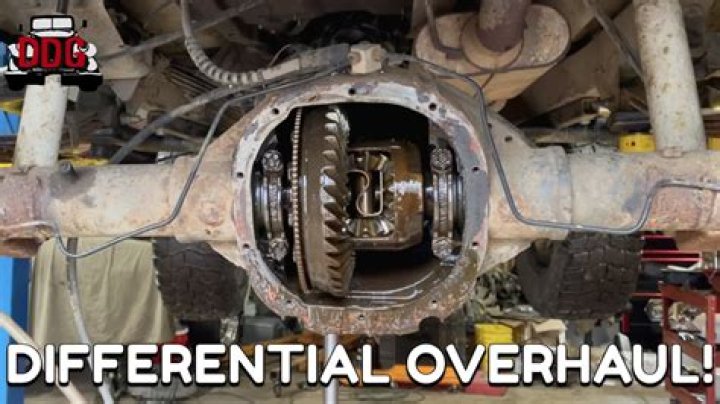

If your axle numbers aren’t legible, you can always tell what differential your rig is equipped with by simply examining the differential itself. This can be broken down by the distinctive shape of the cover, the number of cover bolts, the number of ring gear bolts, and the ring gear diameter.

How do I know if my XJ has limited slip differential?

It will most likely be an 8.25″ rear end, you can identify it by the flat bottom of the gear housing. Yes, there will be a sticker on the inside of the glove box cover warning you that it’s LSD. Also, almost all XJ’s that have a stock towing package and no ABS came with the 8.25” limited slip.

What year Cherokee has Dana 44?

XJ Cherokee/Wagoneer: 1987-1989 (some say up until 1990) XJ Cherokees with the Tow Package sometimes came with the Dana 44 rear axle. These are now hard to come by because of Wrangler and Cherokee owners using them to upgrade their weak Dana 35s and because it’s an easy bolt-in swap for Cherokees and Wranglers.

What is the difference between a Jeep Cherokee and a Jeep Cherokee Sport?

Most of the differences between the Sport and the Classic involve comfort and convenience features. The Classic has roof rails and a leather-covered wheel; the Sport had no rails and a plastic steering wheel. The Classic offers 66 cubic feet of cargo space, while the Sport offers 69 cubic feet of cargo space.

What rear end is in a 1999 Jeep Cherokee Sport?

1999 (and most 1997-2001 Cherokees) had the 29-spline Chrysler 8.25 rear axle, upgraded from earlier 27-spline axles. The C8. 25 was also used is Dodge Dakotas, Durangos, and Jeep Liberties, and is a much more preferable axle than the Dana 35 axle found in many Cherokees, Wranglers, and 6-cylinder Grand Cherokees.

How do I identify my differential?

Without an ID tag, differentials are identified by the number of cover bolts, the distinctive shape of the cover, the number of ring gear bolts, and ring gear diameter. They can also be identified by whether the center section is an integral or dropout design.

Is posi traction the same as limited slip?

Despite the fact that a lot of folks confuse the terms “posi” or “Positraction” with “limited slip,” the fact is that the two are basically one and the same. Today, all positive traction systems are referred to as limited slip systems.

What is the difference between Dana 35 and 44?

The ring gear on the Dana 35 measures 7.62 inches compared to the 8.5-inch ring gear on the Dana 44. That’s nearly an inch larger, which makes a world of difference especially when you’re running large tires. The Dana 44 axle shafts have 30 splines and a 1.31-inch diameter.

How do you tell if you have a Dana 30 or 44?

Aside from the Dana differential covers, the biggest difference between the axles is the size. The number in the name (Dana 30, Dana 44, etc.) is in reference to this. Dana 30: This axle size is the most common, and you’ll only find it on the front of Jeep. They have a ring gear diameter of 7 and 1/8 inches.

Is Jeep Cherokee Sport 4WD?

The Cherokee’s Sport, Latitude, Limited, and Overland are packaged as a 2WD with a 4WD option. The Trailhawk comes outfitted with 4WD. The Grand Cherokee’s trim models include the Laredo, Limited, and Summit, each standard with 2WD and offering a 4WD option.

What does sport mean on a Jeep Cherokee?

The Jeep Grand Cherokee has an available option known as “sport mode”. This mode does a couple of things for Your vehicle. First, it awakens the the Cherokee’s power via automatically changing shifting patterns. It also changes the height of the ride, and changes Your suspension settings without Your input needed.
