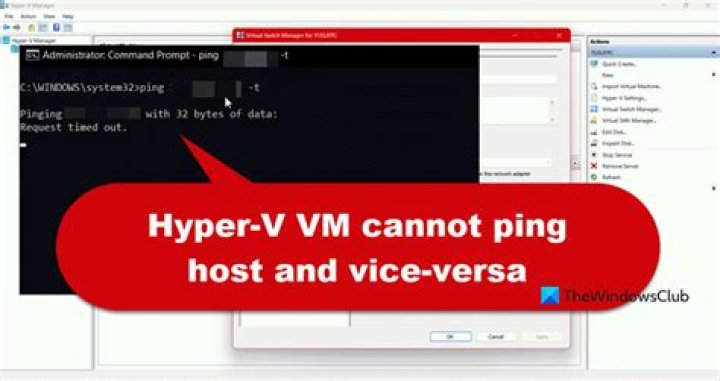

How do I ping a VM to host?

How do I ping a VM to host?

Log into the VM and go to Control Panel > System and Security > Windows Firewall > Allowed Apps. Then check all of the boxes next to “File and Printer Sharing” to enable file sharing. This should allow you to ping the VM.

How do I ping a VMware from another computer?

You can ping ip from one virtual machine to another machine by using these steps:

1. Go to menu VM -> Setting -> select network adapter: NAT.
2. Go to menu VM -> setting -> select options Tab and select.

What is host only in VM?

Host-only networking provides a network connection between the virtual machine and the host computer, using a virtual Ethernet adapter that is visible to the host operating system. This approach can be useful if you need to set up an isolated virtual network.

How do I create a host only network in VMware?

Launch VMware Workstation and open the virtual machine. Edit the configuration using the Configuration Editor (Settings > Configuration Editor). Windows host: Select Network Adapter, then select Host-only (VMnet1) from the drop-down list on the right.

What is the ICMP port?

ICMP has no concept of ports, as TCP and UDP do, but instead uses types and codes. Commonly used ICMP types are echo request and echo reply (used for ping) and time to live exceeded in transit (used for traceroute).

How do I setup a VirtualBox host-only network?

Add a Host-Only Adapter to the Guest Machine

1. Select the appropriate guest machine.
2. Click Settings > Network.
3. Under the Adapter 2 tab, input the following settings: Enable Network Adapter: Checked. Attached to: Host-Only Adapter.
4. Click OK.

Can other computer on the same host network ping to VM?

You cannot ping one from the other. You can only ping the netbox routers if you know their IP address. To be able to ping between the two VMs, they need to take ownership of the host network card. This is called “Bridged Networking” in VirtualBox.

How do I enable ping on Azure VM?

So here is how you enable or allow ping (ICMP) to an Azure VM. Click on add a new inbound port rule for the Azure network security group (NSG). Change the protocol to ICMP. As you can see, you can also limit the sources which can make use of that rule, as well as change the name and description.

What is the difference between NAT and host only?

Host-only only permits network operations with the Host OS. NAT mode will mask all network activity as if it came from your Host OS, although the VM can access external resources.

How do I create an isolated network in VMware?

Ensure the Virtual Machine radio button is selected and click Next. Select the physical NIC that you need to use to connect the virtual switch to other physical resources on the network and click Next. Assign a Network Label to the virtual switch, and a VLAN ID if necessary, and click Next.

What is host only IP?

A host-only network uses a private virtual network. The host and all virtual machines configured for host-only networking are connected to the network through a virtual switch. Typically, all the parties on this private network use the TCP/IP protocol suite, although other communication protocols may be used.
