How do I set compensation in flow cytometry?

How do I set compensation in flow cytometry?

How To Compensate A 4-Color Flow Cytometry Experiment Correctly

1. 4 Steps To Compensating A 4-Color Experiment.
2. Choose the correct carrier for compensation.
3. Step 2: Collect the data and make sure there is a sufficient number of events.
4. Calculate compensation correctly.
5. Apply the compensation values and inspect the results.

How does compensation work in flow cytometry?

The term “compensation,” as it applies to flow cytometric analysis, refers to the process of correcting for fluorescence spillover, i.e., removing the signal of any given fluorochrome from all detectors except the one devoted to measuring that dye.

Why do we need to compensate in flow cytometry?

Compensation is required for a flow cytometry experiment because of the physics of fluorescence. A fluorochrome is excited, and emits a photon in a range of wavelengths. Some of those photons spill into a second detector, causing single stained samples to appear double positive.

How do you make compensation controls?

The Three Rules of Compensation

1. Controls need to be as bright or brighter than any sample the compensation will be applied to.
2. Background fluorescence should be the same for the positive and negative control (e.g, positive cells vs negative cells, or positive beads vs negative beads).

Can you use FITC and PE together?

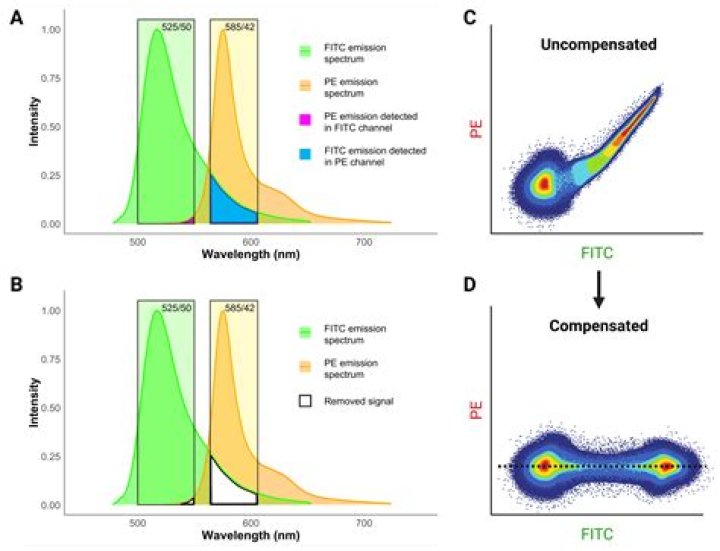

Relative contribution. In some experiments FITC may be combined with other dyes, for example PE, that emit yellow and orange photons. In those cases the relative contribution of each fluorophore to the signal in a given detector must be determined (Figure 11).

What is compensation matrix?

A compensation matrix is calculated using single color fluorescent control files that are collected on the ImageStream in the absence of brightfield illumination and SSC. Once the matrix is created it can then be applied to the experiment data when batch processing or opening a raw image file.

What is PE in flow cytometry?

R-PE is a large molecule used for fluorescence-based detection, primarily in flow cytometry, microarray assays, ELISAs, and other applications that require high sensitivity but not photostability.

What is spillover in flow cytometry?

Answer. When more than one fluorochromes are used to stain cells, one fluorochrome may add brightness to the others, creating significant background noise and affecting the accuracy of the signal. This phenomenon is called spillover.

When should you run compensation controls?

Compensation is the process of correcting for spillover when one fluorophore is detected in multiple channels. It is required for most experiments of four or more colors to identify the correct signal that should be measured in each channel.

Is APC brighter than PE?

Compared to PE, APC is not as”bright”. Compared to other red fluorophores such as Cy5, however, APC is still significantly brighter and an excellent choice for use in flow cytometry.

Can I use APC and PerCP?

PerCP overlap a bit with APC and PeCy7. Pe-‐CF594 spill over a lot from and to Pe, don’t use together. PeCy5 spill over a lot to APC (bad), Pe and PeCy7. Avoid these combinations if possible.
