How do I wire a 3 wire to a 4-wire?

Connect the ground wire of the 3-wire cable to the ground wire of the 4-wire cable. Connect the black wire of the 3-wire circuit to either the red or the black wire of the 4-wire circuit. The red and black wires are the”hot” wires. Either wire can be used to power a circuit.

Can you wire a 4-prong outlet with 3 wires?

In an existing installation (such as an older home built in the 1950s), it is considered Code-compliant for the kitchen range or the clothes dryer to be installed using a 3-wire cord and plug. The 4th wire in that cord and plug configuration is an equipment grounding conductor. …

What is the difference between 3 wire and 4-wire?

A “4-wire” 220v line would have 3 insulated copper conductors and 1 bare copper conductor. In a 3-wire 220v line, the two insulated wires each carry power to the appliance. These should be coloured black and red. This type of wire would be used to power for example an electric water heater.

How do you wire a 4-prong outlet to a range?

Insert the end of the 4-prong cord through the hole in the back panel of the range. Loosen or remove the screw on the center neutral terminal and attach the white cord wire to the terminal, tightening it down under the screw terminal. Attach the black cord wire to the hot terminal with the black wire.

Can you change a 4 wire dryer to a 3 wire?

Once the four-wire cord is removed, it is time to install the new three-wire cord and plug. The outer two wires can be interchanged, but never put the center wire of a flat, three-wire cord on anything but the center terminal. Your three-prong cord will not have a green ground wire.

Can you wire 220 with 3 wires?

A 220 volt outlet can take cables with 3 or 4 prongs. Not all 220 volt outputs use a neutral (white) cable, but all will have two hot wires (one red and one black) and a ground wire (green).

What wires go on a 3 prong plug?

Wiring a 3 Prong Plug The power cord has a white wire, green wire, and a black wire. The white wire is connected to the silver or light colored screw, the green wire is connected to the green screw and the black wire is connected to the gold or dark colored screw.

What is the difference between 2 wire 3 wire and 4-wire sensors?

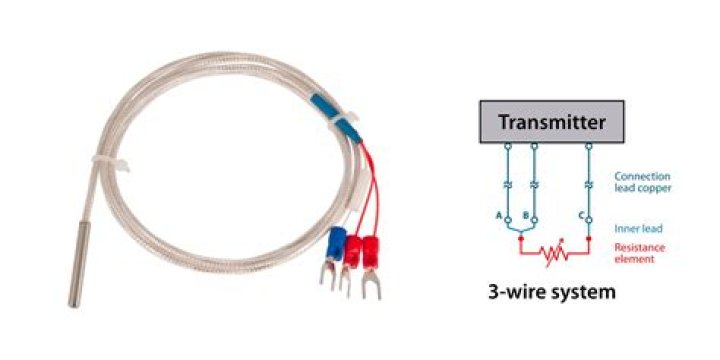

2-wire RTD’s are mostly used with short lead wires or where close accuracy is not required. third wire provides a method for removing the average lead wire resistance from the sensor measurement. The 4-wire circuit is a true 4-wire bridge, which works by using wires 1 & 4 to power the circuit and wires 2 & 3 to read.

Can I use a 50 amp breaker for a 40 amp stove?

Yes, in fact that is a common combination. In fact the standard plug for a 50 amp circuit is NEMA 14–50. They don’t make a 40 amp plug, so NEMA allows the 50 amp plug and circuit to be used for 40 amp appliances.

How do you change a 4 prong stove to a 3 prong?

When installing a four-prong cord, you remove the ground strap from the neutral terminal if the range was previously configured for a three-prong cord. You can leave the strap secured under the ground screw so it doesn’t get lost, but it must not connect to the neutral terminal.

Can you wire a 3 wire range to a stove?

Ground and Neutral Wiring for a 220 Volt Range. [ad#block] Electrical Question: Can I install a 3 wire cord on a new stove and strap the neutral and ground on the stove terminals? I have an older house with an old 3 wire range. The receptacle is wired with 2 hot wires and a un-insulated twisted aluminum conductor for ground.

How to adapt 4 wire to 3 wire 220 volt?

The three wires on the heater will be two phases (hots – red and black in the outlet box) and the frame ground (bare, green or green w/yellow stripe in the box, green or green w/yellow stripe in the heater cable) so those are the wires you need to connect to in the plug. You will not connect the neutral (white wire in the outlet box).

How many wires are in a 240V cooktop?

I have a new cooktop with 4 wires (see pic) – black, red, white and bare. The 240V supply cable has black, white and bare. I measured ~250V across the supply black & white (no load).

How to wire 240 volt outlets and plugs?

Description: How To Wire 240 Volt Outlets And Plugs with 3 Wire 220V Wiring Diagram, image size 750 X 278 px Description: Circuit Breaker Wiring Diagrams – Do-It-Yourself-Help pertaining to 3 Wire 220V Wiring Diagram, image size 500 X 327 px

I have a new cooktop with 4 wires (see pic) – black, red, white and bare. The 240V supply cable has black, white and bare. I measured ~250V across the supply black & white (no load).

How can I make a 240 volt 4 wire to 3 wire?

Then from the 30 ampere overcurrent protection, you’d run 30 ampere conductors to a NEMA 6-15 receptacle. Then you could plug the A/C into the 6-15 receptacle. Using an extension/adapter cord like this is dangerous, and can lead to loss of property and/or life. This is a theoretical device, that should never exist.

Can you hook up a 3 wire oven to 4 wire outlet?

For kitchen wiring, since Jan. 1, 1996, the National Electrical Code forbids 220 volt outlets, which are 3-wire Oven electrical outlets in all new construction, so you have to use the newer 4-wire outlets and remove the ground strap inside your new oven when you hook it up to four wire electrical outlets.

How do I wire a 3 wire to a 4-wire?
