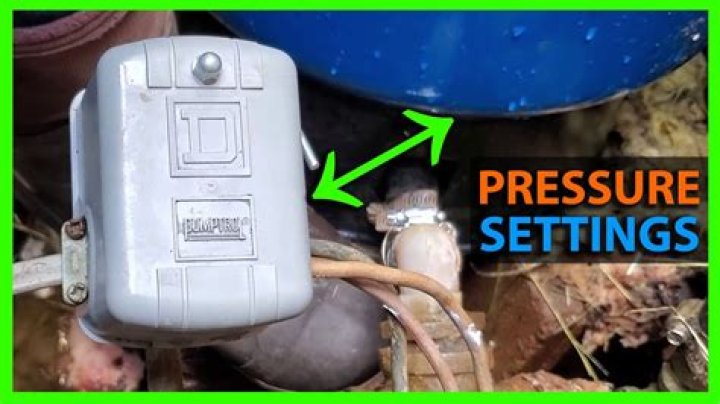

How do you adjust Furnas pressure?

How do you adjust Furnas pressure?

Screw A–Turn clockwise to increase and counter- clockwise to decrease pressure range (both cut-in and cut-out). Screw C–Turn clockwise to increase and counter- clockwise to decrease cut-in pressure.

How do I adjust the pressure on my compressor?

Step-by-step procedure:

1. Starting from an empty tank. Start the compressor and let it run until it reaches the cut-out pressure.
2. Open a drain to slowly let some air escape. Watch how the pressure slowly comes down.
3. Wait until the compressor starts.
4. Adjust the cut-in pressure with the big set screw.
5. Close the drain valve.

What is the normal operating range for an air brake system?

100 to 120 psi
Normal air brake system pressure range is around 690 to 828 kPa (100 to 120 psi). Drivers should know the normal pressure range of the vehicle they operate and should report any abnormal condition.

What psi should I set my air compressor to fill tires?

If you don’t know what your tire pressure should be set to, we suggest following the manufacturer’s recommended settings. Most modern vehicles have this information on a sticker inside the driver’s-side doorjamb; it’s usually somewhere between 30 and 35 psi.

What is a pressure switch on a compressor?

A pressure switch is a mechanical device that relies on air pressure to control the operation of an electric air compressor. This simple mechanism completes the circuit and allows power to the motor as long as system pressure is below a specified setting.

What happens if air pressure gets too low on air brake system?

The brakes may be sluggish. Pressing and releasing the brake pedal unnecessarily can let air out faster than the compressor can replace it, reducing the available air pressure. If the air pressure in an air brake system gets too low, the brakes will no longer work.

What is the maximum operating air pressure?

Actual cut-out pressure must never be higher than 1000 kPa (145 psi ). Actual cut-in pressure must never be less than 552 kPa (80 psi ). The air brake system is defective when cut-out pressure is above 1000 kPa (145 psi ) or cut-in pressure is below 552 kPa (80 psi ).

What is the pressure release valve of air compressor?

Pressure relief valves are used to control and limit the pressure build-up in a system. If pressure exceeds the amount allowed by the pressure relief valve, the pressure relief valve will automatically open and release air until the pressure is reduced.
