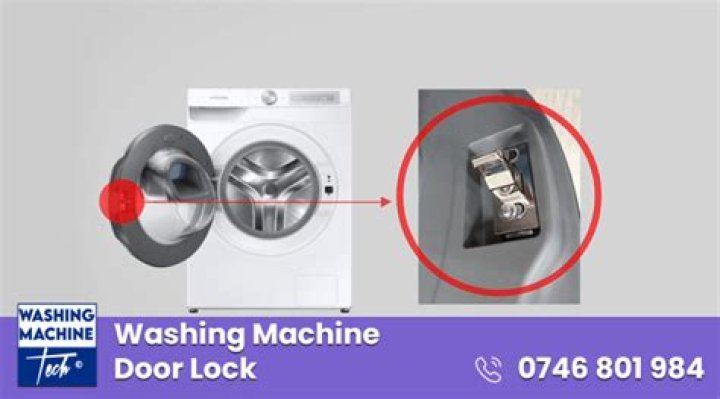

How do you bypass a washing machine door lock?

How do you bypass a washing machine door lock?

Trick the solenoid with a small replacement magnet. Tilt the machine and stick your hand in to manually unlock a stuck door. Replace the hinges, door interlock, or lock-release latch as needed. Use a piece of wood to hold the switch closed or open.

How do I reset the lid lock on my Whirlpool washer?

If your lid lock light is flashing, you can unplug your washer for 10 minutes and plug it back in to reset the washer and the flashing light. You can also press and hold the ‘End of Cycle’ button for 20 seconds to reset the washer and flashing lid lock light.

Why is my washer stuck on lid lock?

– Lock striker that presses down on the lid switch may be out of alignment. – A piece of lint or washing machine detergent has built up over time and hinders the locking of the lid. – Actuator motor is faulty or has loose wiring (If washer is VMW = Vertical Modular Washer).

How do I know if my washing machine lid switch is bad?

The lid switch ensures that the washer door is closed while the washer is spinning. If the lid switch is broken, the washer will not spin. If the washer won’t spin but will still agitate, the lid switch is likely defective.

How do I know if my washing machine lid switch is broken?

What problems can a failed lid switch cause?

1. Doesn’t work at all.
2. Doesn’t drain the water out of the tub.
3. Doesn’t move the agitator.
4. Doesn’t move the drum.
5. Leaves clothes too wet after the spin cycle has completed.

What do you do when your washer lid is locked?

Top Load Washer – Lid Lock Feature

1. Make sure the washer is paused (press Start/Pause). During spin, this can take up to 3 minutes for the basket to stop spinning and allow you to open the lid.
2. Unplug the washer for a minute to reset.

How do I reset my washing machine?

To reset your washing machine, unplug it from the power outlet. Then, plug the washer cord back into the wall. Finally, open and close the washing machine door six times to send the reset signal to the system components.

How do you open a jammed lock?

Use silicone thread lubricant to moisten the jammed lock, making it easier to insert the key. Consider putting a small dot of graphite in the keyhole if the lock still does not open. Once you have applied graphite to the key, try to open the jammed lock at least four times so the graphite has a chance to work.

What does a lid switch do on a washing machine?

The lid switch indicates to the washing machine when it is safe to proceed to the next cycle, particularly when that cycle is possibly hazardous, such as the agitate or spin cycle. If the switch is broken, the machine interprets that as the lid is open, and will not progress to the next cycle.

Can you bypass the lid lock on a whirlpool washer?

When this happens, you may need to bypass the lid lock as you wait for the lid lock switch replacement. We do not recommend using your washer without the lid lock.

How can I bypass the lid switch on my washing machine?

Remove the two Phillips-head screws from the front corners of the control panel. Pull the control panel slightly forward, and then flip it up over the back of the washer. Let the control panel hang by its hinges. Locate the lid-switch connector on the top of the washer body, under the control panel.

Is there a way to change the lid on a whirlpool washer?

On the wires coming from the control panel, strip the insulation, twist them together, wire nut, and electrical tape. Solder and heat shrink tubing is also acceptable and in fact preferred. If your washer has a lid lock, a play/pause button, or different color wires, this will not work.

Where is the lock switch on a whirlpool washer?

The lid lock switch assembly will still be connected to its wire harness, which is usually secured to the underside of the washer’s top panel via a series of clips. To avoid making more work for yourself, leave both of these attachments as they are.

How do you remove lid lock on Whirlpool washer?

Remove the lid lock switch assembly. Use a 1⁄4 inch (0.64 cm) nut driver to loosen the two mounting screws holding the box in place on the bottom of the panel. Lower the assembly carefully and let it dangle freely from its wire harness at around chest level.

Is there a way to bypass the lid on a washing machine?

DIY WASHING MACHINE FIX. Replace or bypass lid switch! – YouTube DIY WASHING MACHINE FIX. Replace or bypass lid switch! If playback doesn’t begin shortly, try restarting your device. Videos you watch may be added to the TV’s watch history and influence TV recommendations. To avoid this, cancel and sign in to YouTube on your computer.

How to install jumper wire to bypass the lid switch on a washer?

Remove the jumper wire, and connect the lid-switch harness after completing the diagnostic of the washer. Flip the control panel forward, and push it slightly back to seat it against the rear panel of the washer. Install and tighten the two Phillips-head screws in the front corners of the control panel.

Where is the lid switch on a washing machine?

Pull the control panel slightly forward, and then flip it up over the back of the washer. Let the control panel hang by its hinges. Locate the lid-switch connector on the top of the washer body, under the control panel. It is the only connector that goes into the top of the washer body.
