How do you calculate CFM for duct size?
How do you calculate CFM for duct size?
Duct CFM Calculation Formula
- Room CFM = (Room load/Whole house load) ✕ Equipment CFM.
- 24,000 BTUs ÷ 12,000 BTUs in 1 ton = 2 tons ✕ 400 CFM per ton = 800 CFM.
- Room A = (2,000 BTUs ÷ 24,000 BTUs) ✕ 800 CFM.
- Room A = 66.67 CFM.
How many CFM is a 12×12 duct?

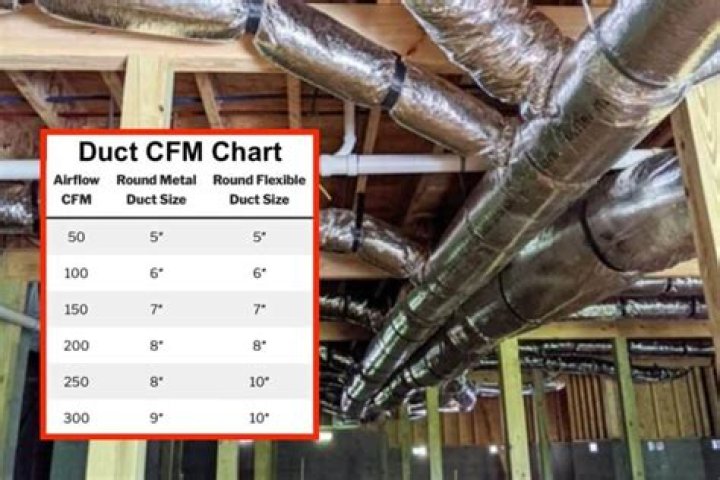

12-Inch Rectangular Ducts Size Chart (150-3,050 CFM)
| 12″ Duct | 12″ CFM |
|---|---|
| 8×12 | 400 CFM |
| 10×12 | 550 CFM |
| 12×12 | 680 CFM |
| 14×12 | 800 CFM |
How many CFM can a 12 round duct handle?
The rule of thumb for a 12 inch duct is 715 cfm. You would need a 20 inch duct to handle 2000 cfm.
Does reducing duct size increase CFM?
The key takeaway here is that air moves from a larger to a smaller duct, the velocity increases. When it moves from a smaller to a larger duct, the velocity decreases. In both cases, the flow rate — the amount of air moving through the duct, in cubic feet per minute — stays the same.
How many CFM does a 4 inch duct have?
Reviewing the chart, a 4” pipe will convey 395 CFM at 4500 FPM. This means that a 4” pick-up on a machine will use 395 CFM from the filtering system; or, if you know that a machine will require approximately 400 CFM to remove the waste, you should use a 4” pipe for that purpose.
What size ductwork do I need for a 3 ton unit?
Multiply the tonnage, 3.5, by the total BTU per ton and this will give you the total BTU rating. Multiply 6 x 42 to determine the duct size of 252 square inches The clear are of the duct must be at least 252 square inches This measurement also includes the opening in the floor at the bottom of the return.
What size duct is needed for 1000 cfm?
Rectangular equivalent diameter for air flows between 100 – 50000 cfm.
| Air flow – q – (Cubic Feet per Minute, cfm) (m3/s) | Rectangular Duct Sizes (inches) (mm) x (mm) | Friction Loss (inH2O / 100 ft duct) (Pa/100m) |
|---|---|---|
| 1000 (0.45) | 10 x 14 12 x 12 | 0.15 |
| 1300 (0.59) | 12 x 14 | 0.15 |
| 1400 (0.63) | 12 x 15 | 0.15 |
| 1700 (0.77) | 10 x 22 14 x 15 | 0.14 |
How do you increase airflow in air ducts?
5 Ways to Improve Airflow in Your Home
- Check Vents and Registers. One of the simplest things you can do to increase airflow in your home is to check the vents and registers in each room.
- Turn on Ceiling Fans.
- Schedule HVAC Maintenance.
- Consider Duct Cleaning.
- Invest in a Ventilator.
How large should return air duct be?
A typical supply vent is 4 by 10 to 12 inches and a typical return vent is 16 by 20 inches or larger. Houses often have two or more return collecting points, each with a filter, which join before re-entering the heating unit.
