How do you calculate conduit bending?
How do you calculate conduit bending?

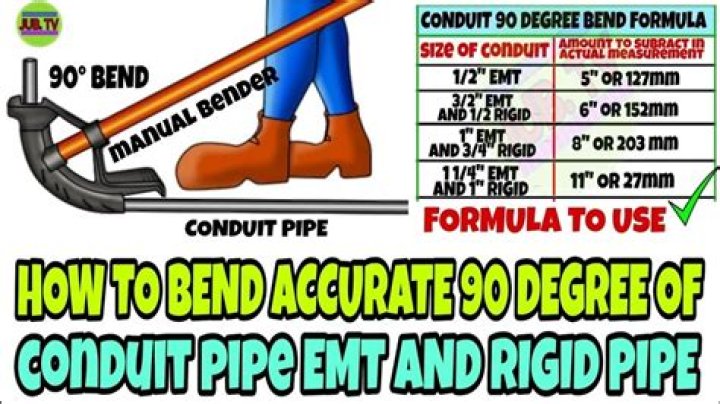

On the conduit, measure from the free end to be bent up the calculated number and mark the conduit. As an example, to bend 3/4” EMT conduit have a free end height of 8.5”, the table indicates to subtract 6” from the 8.5” which leave 2.5” from the end to bend up to make the mark.
How many bends are allowed in conduit run?
National Electrical Code or NEC limits the total number of bends in one continuous run to 360 degrees or four 90 degree bends. It specifically states, “There shall not be more than the equivalent of four quarter bends (360 degrees total) between pull points, for example, conduit bodies and boxes.”
What is the multiplier for 15 degree bend?
However, the calculator says the distance between bends should be 51 7/16 inches and the multiplier is 0.857….Mathematics of the Offset Bend.
| Degree of Bend in Degrees (Angle) | Multiplier | Shrinkage Multiplier in inches |
|---|---|---|
| 10 | 6 | 1/16 |
| 15 | 3.9 | 1/8 |
| 22.5 | 2.6 | 3/16 |
| 30 | 2 | 1/4 |
How do you bend a 1 inch conduit 90 degree?
3 Steps To Bend a 90 Degree Using the Reverse Method Measure the length of conduit where you need the 90 to be and mark. Place the bender on the conduit with the hook pointing towards to short end and align the mark with the tip of the star. Place one foot on the conduit and the other foot onto the bender foot.
What is the multiplier for 45 conduit bends?
Most conduit bends, in addition to a simple 90-degree bend, can be understood and calculated using the geometry of a right triangle….Multipliers for Conduit Offsets.
| Degree of Bend | Multiplier |
|---|---|
| 22 degrees | 2.6 |
| 30 degrees | 2.0 |
| 45 degrees | 1.4 |
| 60 degrees | 1.2 |
Can you bend conduit with wire in it?
In addition to saving money, bent sweeps make it easier to pull wires through the conduit. EMT is fairly rigid, but it’s also easy to bend, provided you have the right tool and technique.
What is the multiplier for 10 degree bend?
The distance between bends found by multiplying the height of the offset by the cosecant of the angle is a method given in many popular handbooks, manuals, and references. This is where the multipliers of 6 for 10 degrees, 2.6 for 22.5 degrees, 2.0 for 30 degrees, 1.4 for 45 degrees, and 1.2 for 60 degrees come from.
