How do you calculate CT knee voltage?

Importance of Knee Point Voltage for PS class CT:

Differential protection Scheme:

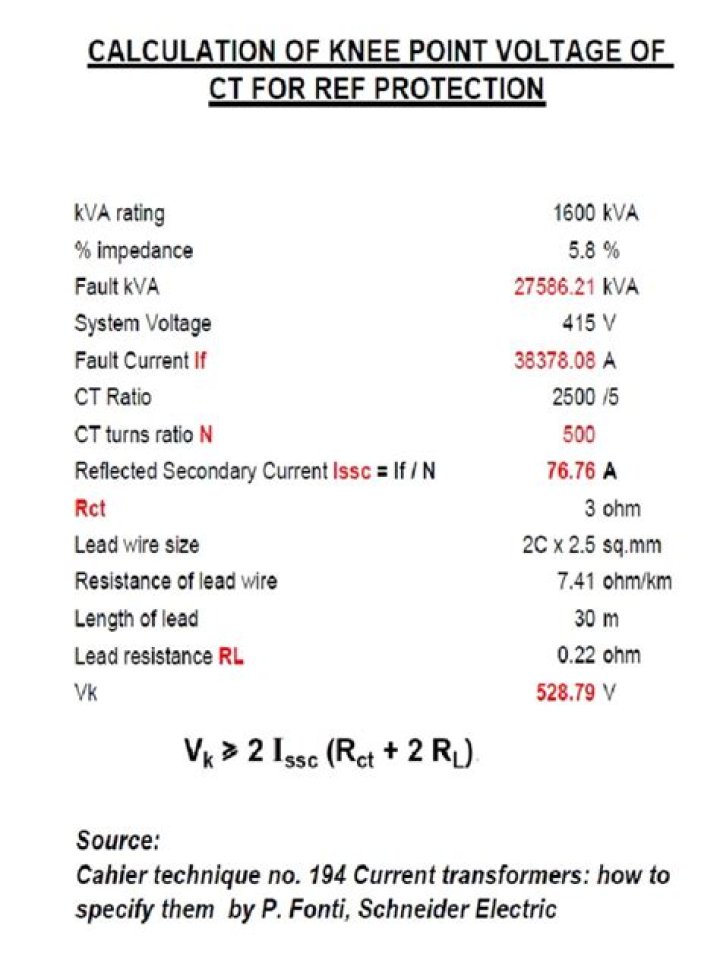

CT Knee Point Voltage can be calculated using the formula;
Related Article:
Example:
If the system fault current is 30 KA, CTR-600/5, RCT+RL+RR=0.5 Ohm.
Vkp = K * If/CTR * (RCT + RL + RR)
Vkp = 2*30000/120*0.5 =250 Volt.
Test Set-up:

What is the voltage on a CT?

333 mVac
The output voltage of the CT should be 333 mVac when the full-scale current rating of the CT is flowing in the conductor. Measured with clamp meter (or estimated) current through the CT.

What is nominal ratio of CT?

In current transformers, nominal ratio = rated primary current/rated secondary current. In potential transformers, nominal ratio = rated primary voltage/rated secondary voltage.

How is CT ratio set in energy meter?

For a 200:5A CT, the turns ratio is 40:1, giving the secondary current 1/40th of the primary current. For a 400:5A CT, the turns ratio is 80:1, giving a secondary current of 1/80th of the primary current.

How do you calculate CT resistance?

Example: If the relay resistance is 0.2 Ω, connecting wires resistance is 0.2 Ω, and secondary winding resistance of CT is 0.2 Ω. The total resistance of the secondary circuit is 0.2+0.2+0.2=0.6 Ω. Total burden of the CT is 0.6 Ω.

What is 5P10 in CT?

Similarly 5P10 can be explained as CT will sense the current with the specified accuracy of 5% even with 10 times of its secondary current flows in the secondary. For example, if the CT is 1000/1 , then in case of fault, when the fault current is 10000A, then the secondary current is 10 A +/- 5%

What is CT saturation?

CT Saturation When the primary current is so high that the core cannot handle any more flux, the CT is said to be in saturation. In saturation, there is no flux change when the primary current changes (as the core is already carrying maximum flux). Since there is no flux change there is no secondary current flow.

What is nominal ratio?

Nominal scale is a naming scale, where variables are simply “named” or labeled, with no specific order. Ratio scale bears all the characteristics of an interval scale, in addition to that, it can also accommodate the value of “zero” on any of its variables.

What is difference between transformation ratio and nominal ratio?

The actual ratio is also called transformation ratio. The nominal ratio is defined as the ratio of rated primary quantity to the rated secondary quantity, cither current or voltage. It is the ratio of transformation i.e. actual ratio to the nominal ratio.

How do you calculate CT knee voltage?
