How do you test a Ford Ranger coil pack?

How do you test a Ford Ranger coil pack?

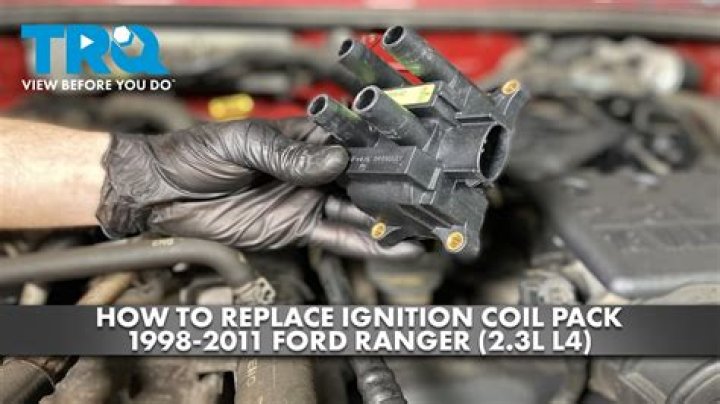

How to Test Ford Coil Packs

1. Start the vehicle and note the running condition of the cylinders.
2. Locate the coil pack for your Ford.
3. Check that each plug wire is firmly plugged into the coil pack and in the right order.
4. Inspect each wire connection for discoloration or damaged wires.

What gives power to the coil pack?

It gets power from the motion of a magnet near it’s coil. When you pull on the starting cord, a magnet in the flywheel moves past the coil and induces a spark in the plug.

Where do ignition coil wires go?

Connect the positive (+) coil lead wire to the positive (+) terminal of the coil using a small combination wrench. Connect the negative coil lead wire to the negative (-) terminal of the coil. Insert the high tension lead wire into the center post of the coil making sure it fully seats.

How can you tell if a Ford coil pack is bad?

Common Symptoms of a Faulty Coil Pack

1. A rough idle.
2. An unexplainably louder-than-usual engine.
3. A noticeable lack of power.
4. A significant drop in RPMs while accelerating for no apparent reason.
5. A blinking or intermittently activating check engine light.
6. An active gas warning light when the vehicle has plenty of gasoline.

Why am I not getting power to my coil pack?

You may have a bad ignition module. You can check it by removing the affected ignition coil, also remove the fuel injector fuse. Connect a test lamp across the two terminals on the ignition module. Take a look at the test light while you crank the engine over.

How ignition coil is connected to the distributor?

The connection is accomplished through a cap and rotor. The ignition coil connects to the rotor, and the rotor spins around inside the cap. This part breaks the current that’s going to the coil. The coil’s ground side connects to breaker points, which are connected by a lever to a cam in the middle of the distributor.

Does the positive wire on a coil go to the distributor?

Connect the positive coil wire to the positive terminal of the ignition coil. Locate the negative coil wire. On most cars made before 1980, this wire connects to the points switch, which is located on the distributor. The distributor connects all of the spark plug wires.
