How does a draft regulator work

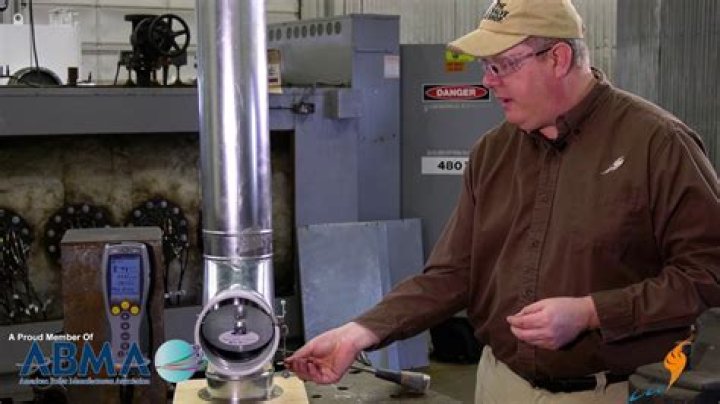

Draft regulators or barometric dampers are devices used to regulate the draft on oil-fired furnaces, boilers, and water heaters. … You adjust the weight to control the amount of the opening of this damper which in turn controls the amount of excess air that can enter the flue and chimney when the oil burner is operating.

How does a draft damper work?

The barometric damper is installed in the flue between the boiler and the chimney. … If the draft inside the chimney is greater than the setpoint, the damper will open and allow air from the boiler room inside the chimney, rather than stealing heat from the boiler.

What does a barometric damper control?

A barometric damper regulates the chimney draft. Over time pressure can build up in the chimney ducts and the barometric damper job is to regulate and release the built-up pressure. The barometric damper plays an important role in fire safety.

What is the purpose of the draft hood?

When properly installed, the draft hood cools the combustion products and allows them to . ow safely from the building. It also protects heater operation during updrafts and downdrafts that are caused by indoor/outdoor air pressure differences.

Do all oil furnaces need a barometric damper?

In short, draft matters because it impacts the functionality of the oil burner. That’s why it’s important to regulate, and you can do so using a barometric draft regulator or damper. With newer heating appliances you won’t need to, as they’re designed to operate without one.

Does a wood furnace need a barometric damper?

All wood-burning stoves do need a system that enables air to reach the fire. The airflow can be regulated by a barometric damper, a flue damper or simple vents that allow air to access the fire. … A great option is to install a barometric damper until you figure out the workings of your wood stove.

Why does my wood stove have two dampers?

Modern Stoves Open both front dampers completely before starting a fire. Modern, efficient wood stoves have dampers below the firebox, or combustion chamber, to supply air directly to the fuel source as well as an additional damper on the door to supply air to allow combustion of gasses released by the burning wood.

How do you adjust the flue damper?

1. Open the fireplace damper all the way when starting a fire.
2. Let the fire burn for a few minutes then adjust the damper so that it is partially closed (about half way) to see how it affects the fire.

How does a vent damper work?

What is the purpose of a vent damper? The idea is to retain the heat in the block during the boiler off cycle and to prevent the chimney from drafting air through the boiler and up the chimney. This raises the AFUE a point or two, and ideally saves the end user in fuel usage and operating cost.

What is stack damper?

Stack dampers are used to reduce heat loss and prevent rain water from entering your process. Due to the environment these dampers are subject to, it is important that you choose a durable damper from a reliable manufacturer.

Article first time published on

What's a barometric draft regulator?

Draft regulators or barometric dampers are devices used to regulate the draft on oil-fired furnaces, boilers, and water heaters. … You adjust the weight to control the amount of the opening of this damper which in turn controls the amount of excess air that can enter the flue and chimney when the oil burner is operating.

How is boiler draft calculated?

Normally we measure draft at two locations: over the fire or in the combustion chamber where typically we may see -0.02 to -0.03 inches of water column pressure, and in the breech or at the stack pipe (properly, the flue vent connector) measured just a few inches above the boiler or furnace top, and before the …

What is the air that is drawn into the draft hood called?

Dilution air is that air which is drawn in through the draft hood or draft diverter relief opening.

What is the air that is drawn into the draft diverter called?

Glossarystack draftDraft taken in between the combustion device and the draft diverter; also called a chimney draft or flue draftstack temperatureA combustion appliance’s flue gas temperature measured before the introduction of dilution air

Can you use a barometric damper on a wood stove?

A barometric damper should never be installed on a wood stove. It will allow cool air into the flue, both slowing flue gases and increasing the likelihood of the smoke condensing and forming creosote. A barometric damper will also cause very rapid feeding of a chimney fire if one were to start.

What is a draft diverter?

A draught diverter is a form of draught break intended to prevent conditions in the main length of flue from interfering with the combustion performance of an open-flued appliance. It allows the appliance to operate without interference from down-draughts that may occur in adverse wind conditions and excessive draught.

How does a furnace draft inducer work?

A draft inducer is a fan that’s located inside of your furnace near the heat exchanger. … By turning on before your furnace ignites its burners, the draft inducer is able to clear out any combustion gases that might be lingering in the heat exchanger from the previous heating cycle.

What is the purpose of a damper on a furnace?

A damper is a valve or plate that stops or regulates the flow of air inside a duct, chimney, VAV box, air handler, or other air-handling equipment. A damper may be used to cut off central air conditioning (heating or cooling) to an unused room, or to regulate it for room-by-room temperature and climate control.

What is the purpose of the oil delay valve?

The oil delay valve, operated by an electrical solenoid switch, closes to immediately stop the flow of oil to the oil burner assembly the second that electrical power to the oil burner is shut off.

How do you adjust the airflow on a wood stove?

Damper vents work just like large bolts with flat heads that close over the holes when you turn the knob. If the stove only has one vent, the knob will be centered on the door; if it has two, they will be side by side. Turn the knobs clockwise to reduce the airflow, or turn it counterclockwise to increase airflow.

Is the damper open or closed?

Before lighting a fire, you can tell if the damper is open by placing your hand into the fireplace. If you feel a draft coming down the chimney, it is a good indicator that the damper is open. If you don’t feel any cold air coming down the chimney, it means that the damper is closed.

How do I know if my wood stove damper is open or closed?

Conduct a visual check. Lean in under your chimney just outside of your wood burning stove. You should find a metal device just within the chimney or flue opening. The damper is open if you can see through the damper up to your chimney. If you only see a metal plate, the damper is in a closed position.

How far should I open my damper?

The damper should always be fully open before lighting a fire and when the fireplace is in use. Close it when it’s not it use. Operating the fireplace with the damper partially closed will not generate more heat. Instead, blocking the passage through the flue will result in smoke entering the home.

How does draft control work on a wood stove?

Draft Controls allow for regulated heat output and burn time. Fine threaded adjustment stud with balance weight on end, gives good regulation. Draft regulated by turning adjustment screw, in or out. Insures more heat on less fuel.

What vents should be open on a wood burner?

Most wood burning stoves and multi-fuel stoves have a bottom air vent and a top air vent. Wood burns best with a good bed of ash laid down in the bottom of the stove and an air supply from the top. When lighting your stove, open both air vents fully.

How does an automatic damper work?

An automatic vent damper not only restricts the flow of heated air up the chimney, but can also reduce the amount of cold outside air leaking in to replace the escaping warm air. It is placed in the flue pipe between the heating unit and the chimney to block the passage of heat after the unit has been shut down.

Can you leave damper open overnight?

Leave the damper open overnight. Yes, you will lose some heat up the flue, but you will save the occupants of the home from poisoning by colorless, odorless carbon monoxide. … Only when they are completely cold to the touch is it safe to shut the fireplace damper.

Should damper be open or closed in summer?

Even if you have a chimney cap, it is a good idea to keep the damper closed in the summer. Chimney caps can become damaged creating a pathway for rainwater or pests to get into your chimney. Closing the damper will ensure that they can’t get into your home through the fireplace.

What is a gravity backdraft damper?

Backdraft dampers (also called gravity dampers) allow airflow in one direction and prevent reverse airflow for use in exhaust or intake HVAC systems. Backdraft dampers can either be operated by gravity (where pressure or velocity opens and closes the damper) or motorized to open and close when required.

Where should the barometric damper be installed in the chimney connector?

On oil fired equipment the barometric damper, or draft regulator is typically a round Tee inserted in the flue vent connector between the heating appliance and the chimney.
