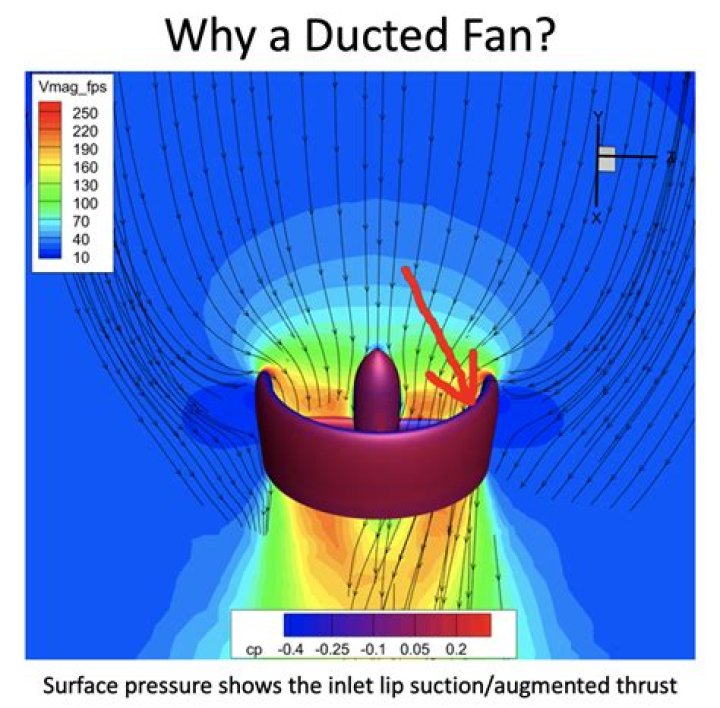

Ducted fans allow for a power loading superior to an open rotor of the same radius. The fan pulls air over the large inlet, causing suction and generating additional thrust. If similar ducted and open rotors are operating at the same power, the ducted fan will produce more thrust.
What is a fully ducted fan engine?
A ducted fan is a propulsion arrangement whereby a propeller is mounted within a cylindrical shroud or duct, the duct reduces losses at the tips of the propeller. Ducted fan propulsion is used in aircraft, airboats and hovercraft.
How much more efficient is a ducted fan?
Ducted fans have about 50-60% less static thrust than the same size prop if designed badly. If designed absolutely perfectly, they might have 90% of the efficiency of a prop. But that’s in a static setting. In the air, where you have drag created by the duct and duct inlet, that gets even worse.
What is a ducted engine?
The most common ducted fan arrangement used in full-sized aircraft is a turbofan engine, where the power to turn the fan is provided by a gas turbine. However, a ducted fan may be powered by any source of shaft power such as a reciprocating engine, Wankel engine, or electric motor.
What is EDF propulsion?
Abstract. Electric Ducted Fan (EDF) is an electric propulsion consist of duct, fan and electric motor with main power source is from battery which generates compression air for thrust. EDF is used as an alternative propulsion for high speed UAV especially for target UAV or “bomb” controlled UAV.
How do you calculate thrust of a ducted fan?
The thrust of a rotor is CT⋅ρ⋅Area⋅tip speed2.
- ρ = air density (1.225 kg m−3 at sea level).
- Area = area of rotor disc (m2)
- tip speed = the linear speed at the tip of the rotor = radial speed * radius.
- CT = coefficient of thrust. ( is usually in the order of 0.02 to 0.05 for small rotors)
What happened to the Unducted fan engine?
But what sparked the interest in developing a fuel efficient engine and aircraft became the demise of the UDF and the 7J7. The end of the oil embargo led to cheaper fuel prices. The 737 continued to be a workhorse for short to mid-range flights and the Airbus 320 offered even better performance.
How does EDF motor work?
The power system of an EDF model consists of a small fan or impeller, driven at high rpm by a suitable brushless electric motor. The principle of the fan is exactly the same as for a propeller driven model; the fan ‘sucks’ air in, and expels it at high speed, the result being that the model is propelled forward.
What is EDF in RC?
Electric duct fans (EDF) operate with less noise and more efficiency while still offering RC aeromodellers the potential to experience the thrill of seeing their winged replicas soar through the air. EDF planes run with multi-bladed propellers, taking in air and spinning at high speeds.
Do fans create thrust?
Turbofan Thrust. To move an airplane through the air, thrust is generated by some kind of propulsion system. Most modern airliners use turbofan engines because of their high thrust and good fuel efficiency. In the turbofan engine, the core engine is surrounded by a fan in the front and an additional turbine at the rear …
Do fans produce thrust?
In a bypass design extra turbines drive a ducted fan that accelerates air rearward from the front of the engine. In a high-bypass design, the ducted fan and nozzle produce most of the thrust.
