How does a water tempering valve work

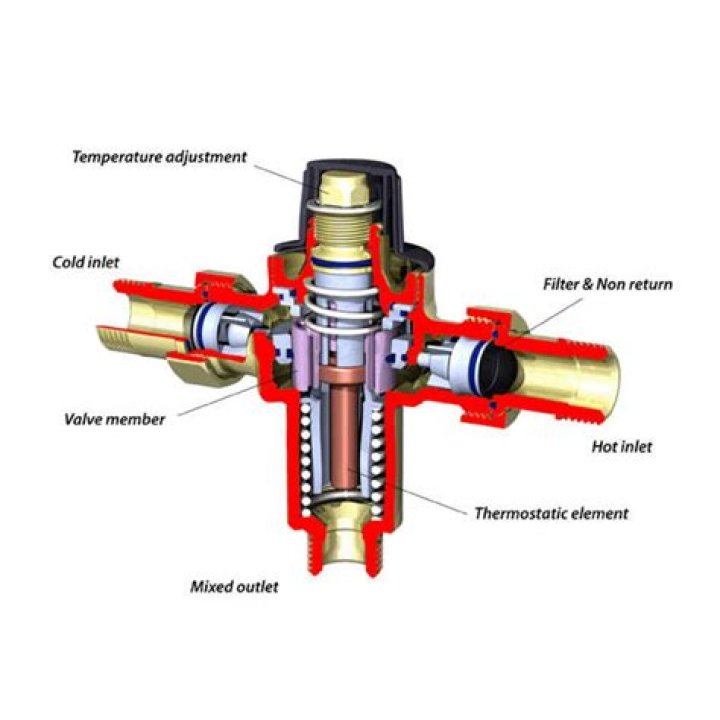

How Does A Tempering Valve Work? This valve works by mixing both hot and cold water together It produces the safest water temperature. … Tempering valves work by allowing the 60 c water inside the unit to be mixed with cold water and then safely flow out of the faucet with a temperature of 45 c to 50 c.

What happens when a tempering valve fails?

And if the tempering valve is not adjusted correctly, it will not be able to cool down the hot water enough to make it safe. … A failing valve may also result in water that’s too cold. Due to this, your water might not run at the right temperature at all consistently and may fluctuate between being too hot and too cold.

What temperature is a tempering valve set at?

A tempering valve is an adjustable 2-inlet mixing valve which is temperature activated and used to moderate a hot water flow by mixing the hot water with cold water to achieve ≅50°C (122°F). This reduced temperature water is then delivered to the taps and shower heads around your home.

Can I adjust my tempering valve?

CAN YOU ADJUST A TEMPERING VALVE? The answer is Yes. A tempering valve can be adjusted by setting the desired temperature with the adjuster on the tempering valve.

What is the difference between a thermostatic mixing valve and a tempering valve?

A tempering valve is accurate to around 3℃ +/-, while a thermostatic mixing valve can keep the water to 1℃ +/- and responds faster than a tempering valve to changes in incoming water temperature. … TMV’s are designed specifically for use in facilities used by high-risk persons such as: aged care centres.

How do you test a tempering valve?

The function of the valve can be checked by measuring the temperature of the water at an outlet nearest to the valve. If the temperature is within +/-2C of the initial set temperature, the valve is functioning correctly.

How do I know if my tempering valve is bad?

1. The water’s gone cold. …
2. The water pressure is down. …
3. The hot tap is dripping. …
4. The temperature fluctuates. …
5. Ask In Deep Plumbing to check your hot water.

Where is a tempering valve installed?

Tomson 5213 series tempering valves are designed to be typically installed at the hot water storage heater. In order to ensure a set temperature, the tempering valve must have a minimum flow rate of 4 l/min.

How do I make my tempering valve hotter?

A hot water tempering valve can be adjusted by 2-inlet mixing, through which water temperature is moderated by mixing cold water and hot water. Here, the tempering valve aims to achieve a temperature of 50-degrees. This decreased temperature is dispatched from the shower heads and taps.

Do tempering valves need to be serviced?

Used to mix hot tank streams with cold water, this valve type safely cools the hot water line. … Even a momentary glitch in this critically important hot water mixer could invite catastrophe, which would occur as a nasty burn. That risk is unacceptable, which is why tempering valve maintenance is such a vital service.

Article first time published on

How long should a tempering valve last?

Like any other plumbing fixture, tempering valves don’t last forever, with a lifespan of 5-8 years. Fortunately, identifying when something’s wrong with one of yours is fairly straightforward. If your water is coming out far too hot, chances are your valve is malfunctioning and it needs to be replaced.

How often should a tempering valve be replaced?

a tempering valve has on average a 5yr lifespan. We recommend replacement after 5 years or when you notice a problem. if the safety valve fails to operate it is to be replaced.

How do I adjust my hot water flow?

Adjusting Water Pressure To do this, you need to find the pressure regulator on the incoming water line, which usually isn’t far from the water heater. You increase pressure by loosening the locknut and turning the adjusting screw clockwise.

Do all hot water systems have tempering valves?

Realistically, this means that all hot water system replacements should be installed with a tempering valve, however, the requirements do not extend to some repairs – it is still highly recommended however that you arrange for the installation of a hot water tempering valve to ensure your safety.

How much does it cost to install a tempering valve?

Non 50-degree pre set models require the installation of a tempering valve at an additional supply and install cost of $185 Incl GST. High performance solar tempering valve if required starts at a supply and install cost of $230.

What temperature should hot water?

Professionals recommend keeping your water heater set at a temperature between 130 and 140 degrees Fahrenheit. Any higher, or lower, could actually be dangerous for you and your family. While turning the temperature up higher can result in burns, turning it lower than the recommended setting can also be dangerous.

How do you test a tempering valve on a water heater?

The first thing to check if your hot water is too hot is obviously to adjust the temperature dial on the front of the water heater, wait an hour and then check the temperature again at the tap. If this doesn’t change the temperature at all then there is a problem and you should contact a plumber to investigate.

Can a shower mixing valve cause low water pressure?

Low pressure in a shower can be caused by several issues such as a clogged showerhead, a worn-out mixing valve, closed valve, leaking pipe, or even a faulty water heater.

Do tempering valves need testing?

Tempering Valves: (yes they are required to be tested as well!) – Basically all of the requirements under thermostatic mixing valve testing but full tempering valve replacement every 5 years as you cannot replace the temperature actuator within a tempering valve.

How do you tell if a mixing valve is bad?

1. Your water temperature isn’t right. If a TMV valve stops working correctly, then you may notice that your hot water suddenly starts to run hotter than it should. …
2. Your water doesn’t flow normally. …
3. You have leaks or drips.

Which way do you adjust a tempering valve?

To adjust the mixed outlet temperature of the tempering valve the cap should be removed > to gain access to the adjusting spindle. Using the special tool moulded into the top of the cap rotate the adjusting spindle to achieve the required temperature.

How do you adjust a blending valve?

To adjust the temperature supply remove the plastic cap on top of the valve and adjust with a close fitting spanner. To increase the temperature turn anti-clockwise To decrease the temperature turn clockwise To set the valve to a maximum recommended mixed water temperature, see table below.

How do you adjust the temperature on a mixing valve?

To adjust the mixed outlet temperature of the valve, remove the cap to gain access to the adjusting spindle. The spindle should be rotated-clockwise to reduce the temperature, counter-clockwise to increase the temperature until the desired set point is reached.

What is a tempered water system?

In plumbing design, tem- pering can be defined as “moderating system water temperature by combining or mixing water systems of different temperatures to- gether to achieve a mixed temperature.” Tempered water system designs are not limited to reducing hot water temperatures by introducing a cold water admixture.

How do you adjust the tempering valve on a caravan?

To change the output temperature place a flat headed screwdriver into the adjustment slot at the top of the Tempering Valve, twist clockwise to increase output temperature and anti clockwise to decrease temperature.

Why doesn't my hot water work in my shower?

The reason why you’re not getting enough hot water from your shower could be because the mixing valve isn’t working. The rubber parts found in the mixing valves get worn down over time, and you will need to replace it.

What causes a mixing valve to fail?

Inconsistent Hot Water Older model hot water mixing valves age over time and can break down with usage. As a result they can begin to fail in correctly controlling water temperature.

How much does it cost to replace a mixing valve?

Valve typeValve unit costTotal replacement cost*Pressure-balancing$50 – $300$150 – $600Thermostatic$150 – $600$250 – $900

Why does my hot water run slower than the cold?

If your hot water pressure is slow in just one fixture, you’ll want to check to make sure the hot water valve is turned all the way on. … But if you’ve found that your hot water pressure is weak in all of your home’s appliances, it’s most likely due to sediment build-up in your water heater.

Why is my hot water tap running slow?

The cause of your low hot water pressure could be debris and sediment in showerheads and taps, water leaks, blocked filters, a faulty tempering valve or something else.
