How is a stepper motor controlled?
How is a stepper motor controlled?
They use open-loop control, and are operated by having a controller generate pulses that are input to a driver, which in turn supplies the drive current to the motor. Stepper motors are controlled by input of electrical pulses, such that the speed of motor rotation is proportional to the input pulse rate.
What is NI motion?
NI motion control is for NI test, measurement, and control platforms. Engineers are using LabVIEW system design software, versatile controllers, and a complete drive and motor portfolio to build advanced motion applications faster and at a lower cost.
What is stepper motor Arduino?
Advertisements. A Stepper Motor or a step motor is a brushless, synchronous motor, which divides a full rotation into a number of steps. Unlike a brushless DC motor, which rotates continuously when a fixed DC voltage is applied to it, a step motor rotates in discrete step angles.
How does stepper motor control speed?
The speed of the rotors rotation in a stepper motor may be controlled in a variety of ways. Three such possibilities are through a series resistance, gearbox and voltage regulation.

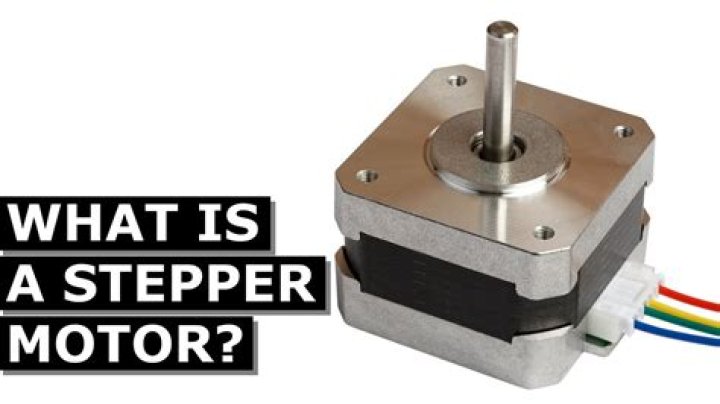

What is the stepper motor function?
A stepper motor is a brushless, synchronous electric motor that converts digital pulses into mechanical shaft rotation. Its normal shaft motion consists of discrete angular movements of essentially uniform magnitude when driven from sequentially switched DC power supply.
What is NI SoftMotion?
The LabVIEW SoftMotion Module helps you integrate motion control with your I/O and vision applications. This module features advanced functions for custom motion application design including trajectory generation and multi-axis functionality such as gearing and coordinate spaces.
Is an interactive tool with which you can configure moves using a point and click environment and generate LabVIEW code?
For prototyping, National Instruments offers an interactive tool called the NI Motion Assistant, which you can use to configure moves using a point-and-click environment and generate NI LabVIEW code based on the moves you configure.
How does Arduino control stepper motor?
The stepper is controlled by with digital pins 8, 9, 10, and 11 for either unipolar or bipolar motors. The Arduino board will connect to a U2004 Darlington Array if you’re using a unipolar stepper or a SN754410NE H-Bridge if you have a bipolar motor.
