How is aircraft climb gradient calculated?
How is aircraft climb gradient calculated?
If a climb gradient table is not available, the rate of climb can be calculated manually. Take your ground speed in nautical miles per hour, divide by 60 minutes per hour, and multiply by the climb gradient in feet per nautical mile. The result will be the required rate of climb in feet per minute.
How is aircraft climb rate calculated?
Calculation Examples:
- Temperature Conversion.
- Crosswind Component.
- Short Field Takeoff Performance.
- Load Factor.
- Stall Speed Banked.
- True vs Magnetic North Course Conversion.
- Mach Number.
- Pressure Altitude.

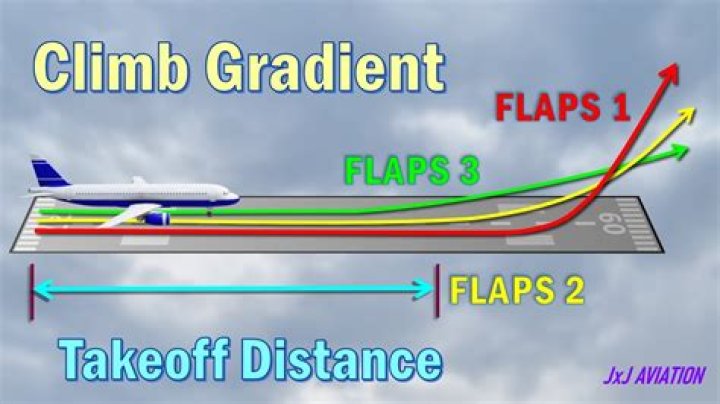

What is aircraft climb gradient?
In aerodynamics, climb gradient is the ratio between distance travelled over the ground and altitude gained, and is expressed as a percentage. The angle of climb can be defined as the angle between a horizontal plane representing the Earth’s surface and the actual flight path followed by the aircraft during its ascent.
How Is approach climb gradient calculated?
Normally, instead of calculating the nonstandard ROC value, the required climb gradient is calculated directly using the formula: h ÷ (0.76d). [TERPS Chap. 2, ¶ 202d.] In the case of a missed approach procedure, the climbing flight path starts at the height of MDA or DA minus height loss.
What is rate of climb in aircraft?
Best Rate-of-Climb: Best rate of climb, or Vy, maximizes velocity to obtain the greatest gain in altitude over a given period of time. Vy is normally used during climb, after all obstacles have been cleared. It is the point where the largest power is available. Occurs above L/Dmax for a jet.
What is the standard climb gradient?
200 feet per nautical mile
The standard climb-gradient requirement is 200 feet per nautical mile after crossing the departure end of the runway (DER) at a height of 35 feet agl. After that, climb gradients can increase if terrain or obstacles are factors surrounding, or within, the designated departure-path surface.
What is climb gradient percentage?
The climb gradient is the percentage of the rise over run (100% if you are climbing at 45 degrees) that your aircraft is climbing at while the rate of climb is the speed at which you are climbing based off the airspeed and climb gradient (given in feet per minute).
How do you calculate an angle climb?
For those who enjoy them, the formula for angle of climb (c) is c =sin-1( Tx/W), where Tx represents excess thrust or total thrust minus total drag, and W represents weight.
How do you calculate max climb rate?
At any given airspeed we can go into the plot and find the power available and power required, take the difference and divide by the weight and obtain the rate of climb.
What is the minimum climb gradient?
Unless specified otherwise, required obstacle clearance for all departures, including diverse, is based on the pilot crossing the departure end of the runway at least 35 feet above the departure end of runway elevation, climbing to 400 feet above the departure end of runway elevation before making the initial turn, and …
How is climb percentage calculated?
To find the percent of incline of a grade, solve the rise/run fraction as a decimal, then convert to a percentage. For example, if the grade is 5/16, solve as a decimal, which is . 3125. To find the percentage multiply this decimal by 100, like this: 100 × .
How do you calculate the best airspeed climb rate?
Simply subtract Vx from Vy and add the difference back to Vy, i.e. Vy + (Vy – Vx). For example, if Vx is 64 knots and Vy is 76 knots, the calculation would be 76 – 64 = 12 followed by 76 + 12 = 88.
