How is Fresnel zone calculated?
How is Fresnel zone calculated?

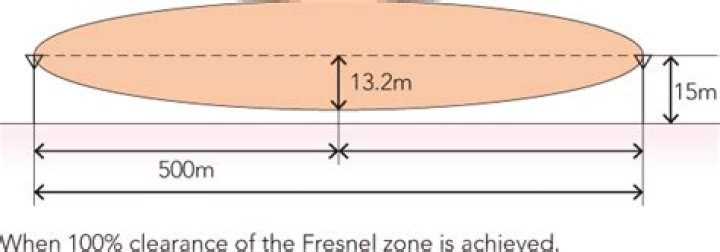

The formula for determining the radius of the widest point of the fresnel zone (in meters) is:
- 17.32 * square root of (d/4f) where d is the distance (in kilometers) between the two antennas and f is the frequency (in GHz) at which you are transmitting.
- 72.05 * square root of (d/4f)
What is Fresnel height?
The Fresnel Zone: This is a electromagnetical phenomenon, where light or radio. signals get diffracted or bent from solid objects near their path. See Table showing the 60% of Fresnel Zone Values (Accepted clearing on path). Add this to the Earth curvature height.
Which parameter determines Fresnel zone?
For establishing Fresnel zones, first determine the RF line of sight (RF LoS), which in simple terms is a straight line between the transmitting and receiving antennas. Now the zone surrounding the RF LoS is said to be the Fresnel zone.
What is the radius of Fresnel zone?
The radius of the Fresnel Zone is at its highest value (greatest distance) directly at the centre of the RF LoS and for the practical application of planning Wireless Networks, it is useful to know the maximum radius of the 1st Fresnel Zone.
What is first Fresnel zone?
The first Fresnel zone is defined as a series of imaginary rings surrounding the centerline of the direct path such that the distance from the transmitting antenna to each ring plus the distance from the ring to the receiving antenna is equal to one-half wavelength more than the direct path between the antennas.
What is Fresnel zone in ultrasound?
Beam focusing refers to creating a narrow point in the cross-section of the ultrasound beam called the focal point. It is at the focal point where the lateral resolution of the beam is the greatest also. Before the focal point is the near field or Fresnel zone, where beams converge.
How do you measure antenna height?
Measure your distance from the base of the antenna or tower, using a tape measure. Generally, the farther away you are, the more accurate your calculation will be. Measure the angle of your line of sight to the top of the tower relative to the ground.
Which of the following has the longest Fresnel zone?
U. T. ASNT Lvl I
| Term | Definition |
|---|---|
| Which of the following has the longest fresnel Zone? * 0.5 inch (13mm) diameter 1 MHz * 0.5 inch (13mm) diameter 2025 MHz * 1.125 inch (28.5mm) diameter 1 MHz * 1.5 inch (38mm) diameter 2 MHz | 0.5 inch (13mm) diameter 2025 MHz |
How many Fresnel zones are there?
Multiple Frensel Zones The Fresnel zone is a 3-D cylindrical ellipse shape (like a cigar or sausage) and is made up of multiple zones, Zone 1 being the strongest area for signal strength, Zone 2 being the weaker, Zone 3 being weaker still and so on.
How do you find the first Fresnel zone?
How do I calculate the first Fresnel zone?
- Get the distance D between the transmitter antenna and the receiver antenna. Define it in kilometers.
- Select the frequency f that you are going to use for wireless communication.
- Compute the square root of D / f .
- Finally, multiply the result of the last operation by 8.66 .
What is the difference between the Fresnel zone and the Fraunhofer zone?
This parallel component is referred to as the Fresnel zone (near-field) and diverging portion is called the Fraunhofer zone (far-field) [ Figure 1]. Pressure amplitude varies greatly in the Fresnel zone, and it decreases at a steady rate with the increasing distance from the transducer in the Fraunhofer zone. …
Which of the following describes the far zone?
Which of the following describes the far zone? The far zone, far field or from Fraunhofer zone is the region beyond one near-zone length. The beam width increases with increasing imaging depth.
