How many different types of 220V plugs are there?
How many different types of 220V plugs are there?

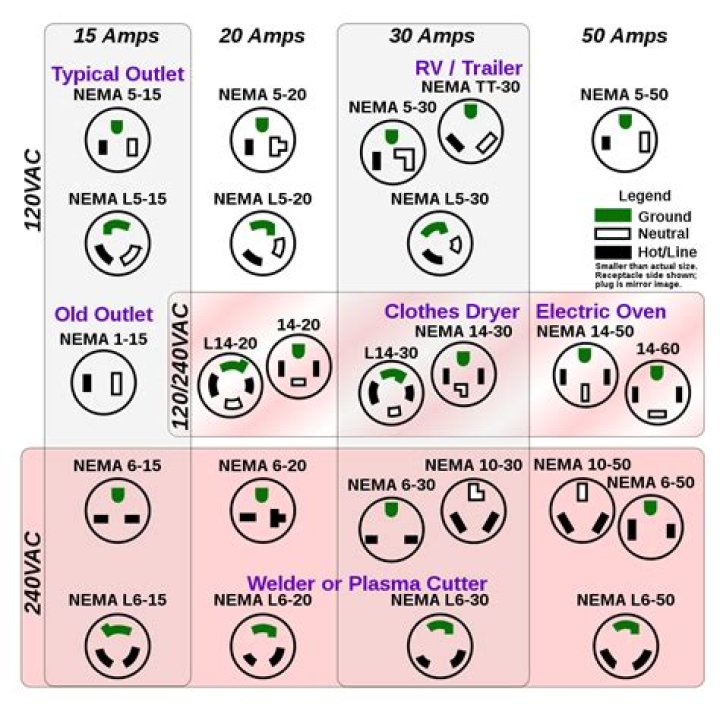

Most US homes are wired with 110-volt breakers and power outlets (which actually range from 110 to 125 volts). However, some larger appliances use higher voltage and may need 220 outlets. There are two main types of 220 outlets, and they require extra precautions and special equipment for wiring.
Are 4 prong adapters Safe?
If you are still worried about using an adapter, just know that it is perfectly safe to use 3-4 prong adapters. The only time you might run into trouble is if the flexible prongs do not bend because of a break in their continuity. There will be no danger if the prongs bend but stay in contact with the outlet.
What volt is a 4 prong plug?
120/240-volt
A 4-prong dryer outlet is wired as a 120/240-volt circuit. The 120-volt service is for the dryer’s timers, sensors, and other electronics, while the 240-volt service supplies power to the heating elements. The NEC requires that dryers have a dedicated circuit with a minimum of 30 amps.
Are 4 prong to 3 prong dryer adapters Safe?
If you were to change from a four prong to a three prong and your dryer is designed to use 120 volts at some point, then that current will have to be returned on the ground leg. This is not acceptable by NEC code, nor is it safe.
Are all 220V plugs the same?
220V Power. You may see 220-volt service described as 230, 240 or 250 volts. They are all the same, just as 110-volt service can also be described as 115, 120 and 125 volts. Electricity comes into the home from the power line transformer in a pair of hot wires with an effective voltage of 240 volts between them.
Are 220 plugs different?
There is one major difference between a 3-prong and 4-prong 220-volt outlet and that’s the missing prong. In a 4-prong outlet, there is two power lines at either side of the outlet.
Why does my dryer have a 4-prong plug?
The switch to a 4-prong outlet was due to a flaw in the 3-prong outlet design. In a 3-prong outlet, the ground and neutral wires are contained in the same prong. The 4-prong dryer cord is comprised of two hot wires, a neutral wire and a ground wire. This creates a separate return path for unused current.
Can you use a 3 wire plug on a 4 wire dryer?
You need to find out just where those three wires in the outlet are going in the electrical panel and get a 3 wire outlet, properly wired, into the wall, followed by a 3 wire cord to the dryer. It is neither legal nor safe to use only 3 wires to hook up a 4 wire wall outlet.
What is a 4-prong outlet called?
The 4-prong dryer cord is comprised of two hot wires, a neutral wire and a ground wire. 4-prong dryer cord and take that into consideration when shopping for new appliances. In general: 3-prong plugs are used for homes built before the year 2000. 4-prong plugs are used for homes built after the year 2000.
Are all new dryers 4-prong?
The National Electrical Code currently requires 4-prong dryer outlets in all new home construction. Existing homes may still use 3-prong outlets. The switch to a 4-prong outlet was due to a flaw in the 3-prong outlet design. In a 3-prong outlet, the ground and neutral wires are contained in the same prong.
