How many hydraulic systems does the 737 have?
How many hydraulic systems does the 737 have?
three hydraulic systems
The airplane has three hydraulic systems: A, B and standby. The standby system is used if system A and/or B pressure is lost. The hydraulic systems power the following airplane systems: Either A or B hydraulic system can power all flight controls with no decrease in airplane controllability.
Do Cessnas have hydraulics?
The Cessna Citation Mustang has one of the simplest hydraulic systems. Traditionally these jobs have been tasked to hydraulic systems. As airplanes become heavier, it’s a general rule that more systems become “clients” of the hydraulic system.
Are airplane flaps hydraulic?
Hydraulic Principles. Hydraulic systems are used on aircraft to move and actuate landing gear, flaps and brakes. Larger aircraft use these systems also on flight controls, spoilers, thrust reversers and what not.
How does an aircraft hydraulic system work?
The aircraft hydraulic systems are the system that performs a function to move and actuate landing gears, flaps, and brakes. The system acts by pressurizing fluids upon every section of vessels. Thus, creating force and transmitting pressure on every part.
What the three hydraulic system of Boeing?
The Boeing 737 Next Generation has three 3,000 psi hydraulic systems: system A, system B, and standby. The standby system is used if system A and/or B pressure is lost. The hydraulic systems power the following aircraft systems: Flight controls.
Does Cessna 172 have hydraulics?
A Cessna 172, for example, uses a single-disc system. When you press on the toe brake, a master cylinder that’s attached to the brake pedal pushes hydraulic fluid through hoses and rigid lines to a brake-unit housing attached to the landing gear strut.
Can a plane fly without hydraulics?
The pilots will lose control of the airplane to turn right or left, climb in case there is a total hydraulic failure. The only way to fly a plane with full hydraulic failure is by increasing and decreasing the power of engines but only if they are mounted on the wings.
Do airplanes use hydraulics or pneumatics?
Hydraulics are used in planes of all sizes to operate most of their equipment, such as landing gear, brakes, flaps, thrust reversers and flight controls.
What are the differences between Airbus and Boeing hydraulic system?
There are differences in the hydraulic systems. The B737 has two hydraulic systems with a very small standby system for the rudder. The A320 has three hydraulic systems. The leading edge slats on the A320 are a bit more effective than the B737.
What are the aircraft hydraulic system components?
The primary components of the “plumbing” portion of the hydraulic system include the following:
- Reservoir.
- Filters.
- Shut Off Valves.
- Control Valves.
- Pressure Relief Valve.
- Hydraulic Fuses.
- Accumulators.

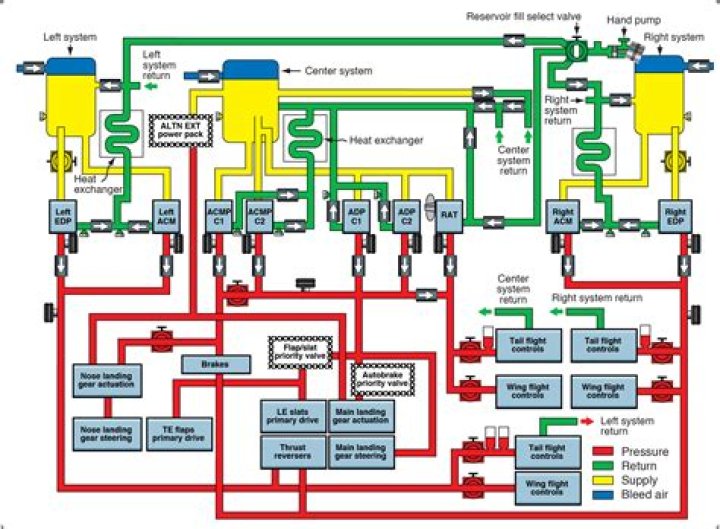

What is large aircraft hydraulic system?
The center system provides hydraulic power for the engine thrust reversers, primary flight controls, landing gear, and flaps/slats. Under emergency conditions, hydraulic power is generated by the ram air turbine (RAT), which is deployed automatically and drives a variable displacement inline pump.
