How thick is a chain link fence

9 Gauge is the most common wire sized used for both residential and commercial applications. 11 and 11-1/2 gauge are typically used for temporary fencing, while the 6 gauge is used in high security applications.

What is the thickest gauge of chain link fence?

Generally speaking, wire gauge ranges from about 6 gauge (. 192” thickness) to 11 gauge (. 120” thickness). The standard gauge for residential and commercial chain link fence is 9 gauge.

What diameter is chain link fence?

Commonly, 2-1/8″, 2″ and 1-3/4″ are recommended for residential chain link fence, while 2″ and smaller opening are for commercial fence. 5/8″, 1/2″ and 3/8″ are typically used for high security requirements (see Table – 1).

Which is stronger 9 gauge or 11 gauge?

Gauges range from 13 down to 6 but the most common gauges are between 11-1/2 and 9. The 9 gauge is referred to as “light commercial duty” and is most often found in public and government projects. It is considered better than the 11-1/2, which is not as strong.

How deep does a chain link fence need to be?

The answer -— as it often does in fencing construction — depends. As a general rule, Fencing Direct recommends at least a 24-inch footing depth for a 4-foot fence, plus an extra 3 inches for every foot of height (for example, 27 inches for a 5-foot post).

Is 11 gauge chain link fence strong?

The smaller the gauge number, the more steel, the higher the quality and the stronger the wire. We recommend using nothing less than 11 ½ gauge (. 1121 inches in diameter) wire for residential and 9 gauge (. 1494 inches in diameter) for commercial fencing.

What's the difference between 9 gauge and 11 gauge chain link fence?

The higher the gauge number the smaller (thinner) the wire diameter. … 9 Gauge is the most common wire sized used for both residential and commercial applications. 11 and 11-1/2 gauge are typically used for temporary fencing, while the 6 gauge is used in high security applications.

Which chain link fence is best?

Stainless Steel—Stainless steel wires are the strongest and most durable (but also most expensive). They do not fall victim to the issues that other types can have. Stainless steel chain link fences are typically found at high-grade enclosures or barriers at airports, railroads, or on the side of highways.

What is the top of a chain link fence called?

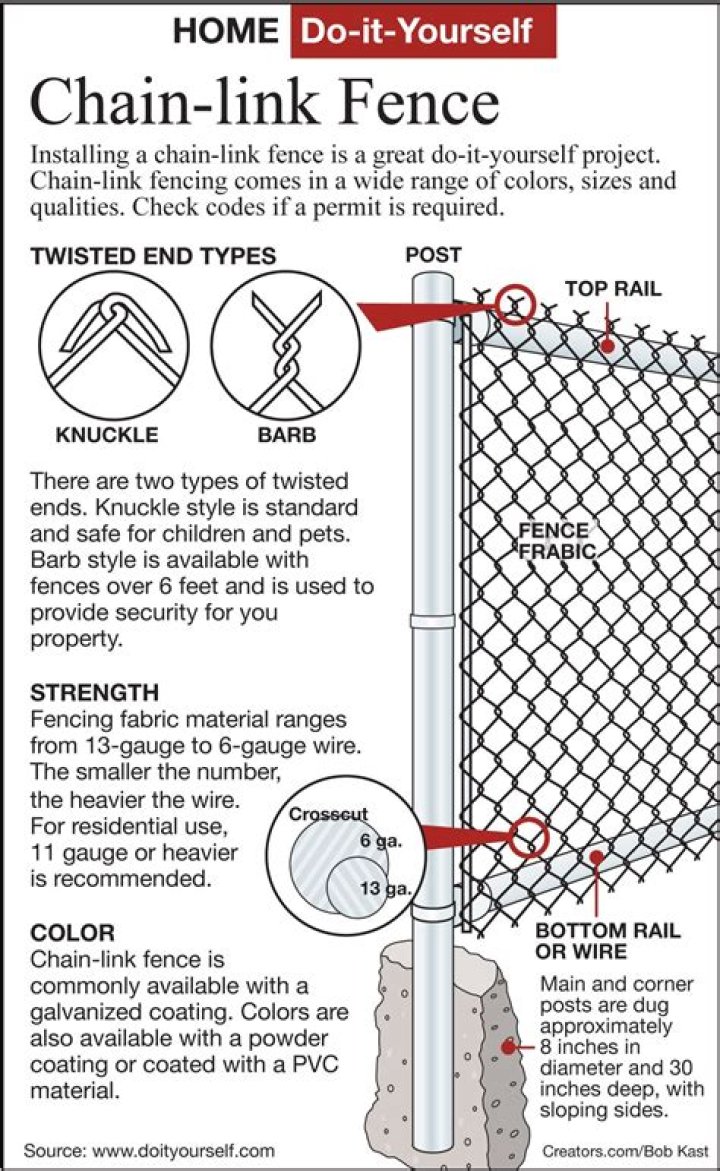

Top Rail The railing along the top of the wire mesh in a chain link fence is called the top rail. Repairing the top rail usually requires more than one person.

How long are chain link fence sections?

What is the standard length of a chain link fence panel? 10 feet. The standard length of a chain link fence panel is 10 feet, and the standard height is between 6 and 8 feet.

Article first time published on

How do I set the size of a chain link?

1. Pitch is measured by finding the distance from the center of one pin to the center of the next pin in line. …
2. Determine your side plate height and thickness by measuring both inside and outside the roller chain to ensure that you’re seeing a good average size.

What is the standard width of a chain link fence gate?

The most common size is 4′ inches wide and can range from 3′- 6′ wide. This gate is perfect for those looking to purchase the most simple and affordable fencing option to accommodate foot traffic.

How do you measure for a chain link fence?

Measure along the staked fence line to determine the total length of chain fabric needed. Be sure to allow for any gates that will go in the fence. The total length minus the total width of all the gates will be the amount of chain link fabric needed.

Do chain link fence posts need to be cemented?

You can install a chain link fence without using concrete, but it is not recommended. Anchoring each fence post in concrete is the best way to ensure your fence will stand straight and tall for many years.

Does chain link fence go in the ground?

Generally, it is not recommended for a chain-link fence to touch the ground. Ground contact makes the bottom of the fence more vulnerable to corrosion. It can also make yard maintenance more difficult. … The fence touching the ground can prevent rodents and other small animals from getting inside for garden areas.

How do you secure the bottom of a chain link fence?

The simplest way to reinforce your chain link fence at the bottom is by using tent stakes. Tent stakes can be bought at any hardware store, and they are very cheap. If you don’t want to do any kind of installation or you’re just not the DIY person, then using tent stakes is a simple and straightforward solution.

Which is thicker 9 gauge or 12 gauge wire?

The Larger the Number, the Smaller the Wire A 7-gauge wire was pulled through seven dies, while a 12-gauge wire (which remember, is thinner) would have been pulled through twelve times. A 20-gauge wire, for example, is thinner than a 9-gauge wire.

How much did your chain link fence cost?

Chain Link Fence CostsZip CodeLinear ft.BasicBetterChain Link Fence – Installation Cost$700.00 – $775.00$800.00 – $900.00Chain Link Fence – Total$1550.00 – $1725.00$1800.00 – $2000.00Chain Link Fence – Total Average Cost per Linear foot$16.38$19.00

What gauge fence do I need?

Fence gauge is kind of like a bass guitar: just as the lowest strings are thickest, so the lowest number gauge is the strongest, most durable and the biggest in diameter. For a strong fence, you want a low gauge, such as an 11 or 11.5. A very thin gauge would be over 20.

What gauge are fence posts?

Both 7′ and 8′ high fences will often feature a 3″ (2-7/8″ actual) terminal post and 2-1/2″ (2-3/8″ actual) line posts. Fabric – Most customers will opt for an 11 gauge or heavier option when they are already upgrading to an HF20 framework.

What gauge are metal fence posts?

The fence posts shown here are standard 2 – 3/8″ x 8 ft. x 0.065″ thick (or 16 gauge) tubular steel posts.

How tall is the average chain-link fence?

Height— Most chain link mesh comes in heights ranging from three to 12 feet and generally comes in 50-foot rolls. Gauze size—Gauze sizes range from 13 to 6. The average gauze size is 11. The lower the gauge number, the thicker is the mesh.

What is a frost fence?

Strength, durability and excellent cost value are what make chain link fences so popular. These “Frost” fences and their slats are available in a variety of colours, including white, black, brown, taupe, green and galvanized steel, ensuring perfect harmony with your decor.

How strong is a chain-link fence?

The strength of chain link fence framework is directly related to the gauge (ga.) of the steel. Common gauges of residential chain link fence include 20, 19, 18, 17, 16 and 15. Residential chain link fence framework should be manufactured from steel that has minimum yield strength of 45,000 pounds per square inch.

Are chain link fences trashy?

Any type of fence in a front yard can make a property look trashy, if it is not properly maintained. If there are weeds growing up along the fence and a post or two are leaning over, it could give the impression that the homeowner is lazy.

Are chain link fences outdated?

Chain link fences may still have a place on some industrial properties, but for a much more aesthetically pleasing look, aluminum is the way to go. They require virtually no maintenance, and they’re secure, private, affordable and easy to install yourself.

How can I make my chain link fence look nice?

1. Slide privacy slats into the links of the fence. Install privacy slats, into the mesh of the chain link fencing, to create privacy and add color. …
2. Cover the chain link fence with climbing vines. …
3. Painting chain link renews the look. …
4. Rolled bamboo creates a serene wooded atmosphere.

How much does 200 ft of chain link fence cost?

Linear feetAverage cost to install100$900 – $3,000150$1,350 – $4,500200$1,800 – $6,000300$2,700 – $9,000

How many feet apart should chain link fence posts be?

SPACING FENCE POSTS As chain link fence posts are smaller and sturdier than many other types, the holes should be smaller and can be farther apart. Follow the fence manufacturer’s instructions for spacing, which typically ranges from 4-10′ apart—spacing should not exceed 10′ on-center.

How much is a 6ft chain link fence?

HEIGHT OF FENCEPRICE RANGE * includes materials and professional labor costs4 feet$9 – $19 per linear foot6 feet$11 – $24 per linear foot8 feet$13 – $27 per linear foot10 feet$16 – $31 per linear foot

How is chain thickness measured?

So how do you measure your anchor chain size? Anchor chain is measured in two primary ways – thickness of the metal in the link, and the length of the link. The most precise method is to use Vernier calipers, though with care a measuring tape can get a close enough estimate.
