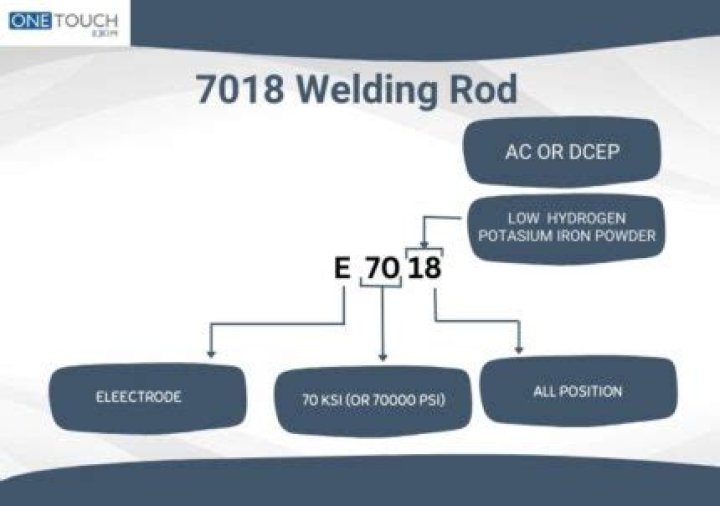

Is 7018 welding rod AC or DC?

Is 7018 welding rod AC or DC?

The 7018 welding rods are used for pipe welding and structural steel welding and repair welding. This low-hydrogen, usually DC, all-position electrode can also be used with AC, which not many welders may know. The 7018 provides a good bead appearance and smooth, strong welds. It also works on higher strength steels.

Is 6013 welding rod AC or DC?

6013 electrodes may be used in any position with AC or DC (straight or reverse polarity). recommended. Operate by holding a short arc or using the drag technique.

Is 6011 Rod AC or DC?

6011 runs on AC and direct current electrode positive (DCEP), while 6010 runs only on DCEP. This gives 6011 an advantage if you have an AC-only machine.

How do I know what size welding rod I need?

Generally the size of the electrode that should be used depends on the thickness of the part to be welded. For thin metals the electrode is only slightly larger than the metal to be welded. For example if a plate is of 2.0 mm thick the electrode of 2.5 mm should be used.

Can I use 7018 AC on DC?

The 7018 electrodes are for all position welding. It means they are ideal for both AC and DC polarity applications. It is a low-hydrogen iron powder that makes it have appealing and robust weld beads.

Can 7018 be ran AC?

The 7018 arc welding rod is commonly used for general-purpose welding of carbon steel. per square inch, provides medium-penetration welds, can be used in all positions and can be used with either AC or DC welders.

What is the difference between AC and DC welding rods?

AC and DC welding are forms of arc welding that use different currents to produce an electric arc. ‘ The DC polarity is constant while the AC polarity flows in one direction for half of the time and half of the time in the other, reverse, direction.

Can you use 6011 on DC?

While the 6011 was specifically designed for AC machines, it can also run on DC giving it an advantage over the 6010 electrodes (which can only do Direct Current Electrode Positive). A common mistake for Stick welders is to treat their 6013 electrodes like 6011 or 6010 rods.

What welding rods are DC?

E6010 electrodes can only be used with direct current (DC) power sources. They deliver deep penetration and the ability to dig through rust, oil, paint and dirt. Many experienced pipe welders use these all-position electrodes for root welding passes on a pipe.

Is 6010 welding rod AC or DC?

E6010 electrodes are intended for direct current (DC) only. While E6011 electrodes can be used on alternating current (AC), as well as DC. More specifically, an E6010 electrode has a high cellulose sodium type coating and an E6011 electrode has a high cellulose potassium type coating.

How many amps is a 6011 Rod?

6011 (blue spot)
