Is BACnet IP TCP or UDP?

Is BACnet IP TCP or UDP?

BACnet/IP uses the User Datagram Protocol (UDP), a connectionless protocol. Here is why UDP was chosen: UDP is well supported and has a clean API for all operating systems.

What port does BACnet use?

47808
The UDP port number 47808 (in hexadecimal, X’BAC0′) identifies BACnet messages and is the UDP port used by PAD devices. BACnet/IP devices use this UDP port by default but may be configured to use a different number if necessary.

Is BACnet a communication protocol?

BACnet is “a data communication protocol for building automation and control networks.” A data communication protocol is a set of rules governing the exchange of data over a computer network that covers everything from what kind of cable to use to how to form a particular request or command in a standard way.

How does BACnet communication work?

BACnet works by dividing the problem of interoperability into three distinct areas, and by defining methods and standards for implementing each. BACnet devices actually exchange information and do things by sending and receiving electronic messages containing this coded application language.

Does BACnet use TCP?

Since the BACnet protocol itself provides for the guaranteed delivery of packets, resequencing and flow control, it does not require the use of TCP and therefore utilizes UDP. UDP/IP was added to the BACnet specification first in Annex H.

How is BACnet wired?

BACnet MS/TP networks must be wired in a daisy chain configuration. A daisy chain means that there is only one main cable, and every network device is connected directly along its path. This type of network is low bandwidth, but reliable and good for long distance multi-drop runs.

What type of protocol is BACnet?

data communication protocol
BACnet®, short for “Building Automation Control Network”, is a data communication protocol for building automation and control networks. BACnet is both an international (ISO) and ANSI standard for interoperability between cooperating building automation devices.

Is rs485 a BACnet?

The BACnet MS/TP protocol uses EIA-485 (RS-485) as the physical layer standard for data transmission.

What is BACnet IP?

The “IP” in BACnet over IP is “Internet Protocol,” one of the main protocols that allow computers to talk with each other over a network. BACnet over IP allows for communication between different IP subnets, multi-campus control systems, and can even use fiber and gigabit-ethernet.

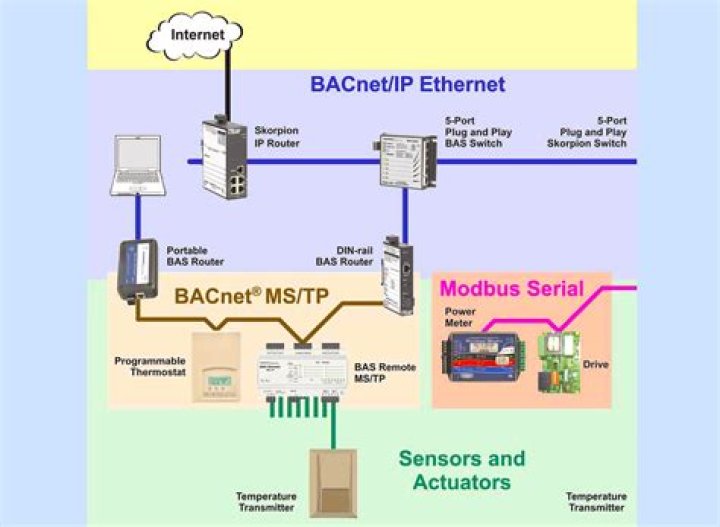

What is BACnet IP and BACnet Mstp?

BACnet IP is an Ethernet based protocol, while BACnet MSTP is a Serial Protocol. An Overview of the two protocols: BACnet IP: The BACnet/IP allows users to transfer data to and from devices over Ethernet using BACnet/IP Protocol.

What is BACnet server?

The BACnet OPC Server from MatrikonOPC provides secure and reliable real-time data access between all BACnet objects/devices and any OPC-enabled applications such as Historians, HMIs, and SCADA …etc to maximize your control over your Building Automation Systems.

Does BACnet use Ethernet cable?

BACnet over IP allows for communication between different IP subnets, multi-campus control systems, and can even use fiber and gigabit-ethernet. Communications in BACnet over IP rely upon the protocol rules of IP and Ethernet.
