What are formant frequencies?
What are formant frequencies?

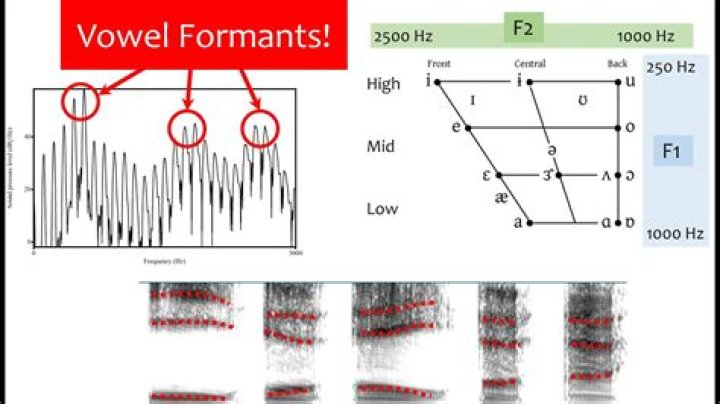

A formant is a concentration of acoustic energy around a particular frequency in the speech wave. There are several formants, each at a different frequency, roughly one in each 1000Hz band for average men. The corresponding range for average women is one formant every 1100Hz.
How do you calculate formant frequency?
I’m aware of the formula: L = c / 4F, where the “c” is the speed of sound (34029 cm/s) and “F” is the first formant frequency.
What is F1 and F2 formants?
Within speakers, the first (F1) and second (F2) formants are the principal determinants of vowel type—F1 varies as a function of vowel height and F2 varies as a function of vowel backness (the third formant (F3) primarily cues rhoticity, Broad and Wakita 1977).
What is a formant on a spectrogram?
A formant is a dark band on a wide band spectrogram, which corresponds to a vocal tract resonance. Technically, it represents a set of adjacent harmonics which are boosted by a resonance in some part of the vocal tract.
What is spectrogram analysis?
A spectrogram displays the strength of a signal over time at a waveform’s various frequencies. For vibration testing, spectrograms can be used to analyze the frequency content of a waveform to distinguish different types of vibration. …
What spectrogram means?
A spectrogram is a visual way of representing the signal strength, or “loudness”, of a signal over time at various frequencies present in a particular waveform.
How do you plot F1 and F2?
Use F1 as the vertical axis (high F1 at the bottom, low at the top) and F2 as the horizontal axis (high F2 to the left, low F2 to the right), so that the graph will more closely resemble a traditional vowel chart. For each vowel token, place the IPA symbol at the appropriate place given its F1 and F2.
What is the difference between fundamental frequency and formant frequency?
All Answers (24) Pitch is the fundamental frequency of vibration of the vocal folds, which are present at the top of one’s trachea. The formant frequencies are due to the frequency shaping of the signal from the vocal folds by the vocal tract.
Where is F2 on a spectrogram?
Right at the end of the vowel, you can see F2 and F3 start to approach one another in a formant transition pattern (often called the “velar pinch”) that usually marks the onset phase of a velar consonant.
What is the relationship between F2 and tongue position?
the higher the tongue is elevated during vowel production, the lower the value of F1. F2 – directly related to tongue advancement. the more fronted the tongue placement during vowel production, the higher the value of F2.
What is the relationship between fundamental frequency and formant frequencies?
A formant frequency is independent of the fundamental to the point that a formant frequency can be between the multiples of the fundamental (e.g. can be at 500 Hz when the fundamental is 300 Hz).
