What are the advantages of differential amplifier?
What are the advantages of differential amplifier?

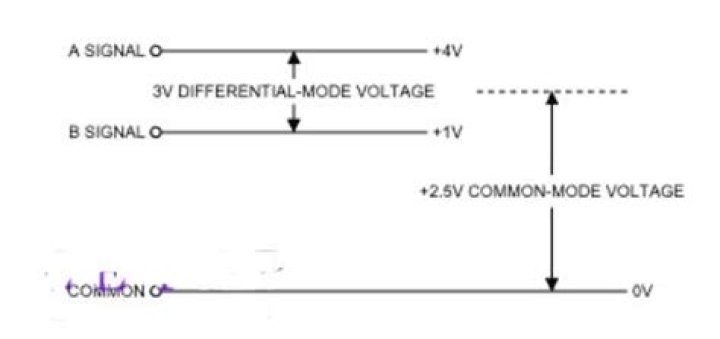

Differential amplifiers offer many advantages for manipulating differential signals. They provide immunity to external noise; a 6-dB increase in dynamic range, which is a clear advantage for low-voltage systems; and reduced second-order harmonics.
What is the purpose of using a differential amplifier?
Differential amplifiers are used mainly to suppress noise. Noise consists of typical differential noise and common-mode noise, of which the latter can easily be suppressed with an op-amp.
What are the advantages of instrumentation amplifier over differential amplifier?
Instrumental amps are designed to offer low noise, high stability, high common mode rejection dc precision and gain accuracy maintained within a noisy environment, and where large common-mode signals (usually at the ac power line frequency) are present. They usually offer input buffers too.
What does a differential amplifier amplify?
The differential amplifier circuit amplifies the difference between signals applied to the inputs (Figure 3.5). Superposition is used to calculate the output voltage resulting from each input voltage, then the two output voltages are added to arrive at the final output voltage.
What is the advantage of differential output?
Differential signals also have the added benefit of being able to operate at lower voltages than single-ended signals, all while maintaining their signal-to-noise ratio (SNR). And with lower voltages, you get the benefit of being able to use lower supply voltages, reduced power consumption, and reduced EMI emissions.
What is the difference between differential amplifier and instrumentation amplifier?
An instrumentation amplifier is a special kind of differential amplifier. In general, it is a differential amplifier, but the input impedances on the two inputs are very high (meaning very small input currents), and the same for each input. There is usually a way to change the gain with one resistor.
What is the difference between difference amplifier and differential amplifier?
Amplifier is a circuit which basically amplifies the power of the signal. Differential amplifier is one which amplifies the difference among two voltages and suppress any common input voltages of the two.
What is the benefit of differential signal?
What are the advantages of instrumentation amplifier?
Advantages of Instrumentation amplifier
- It has very low DC offset.
- There is low drift.
- It has low noise.
- It has a very high open-loop gain.
- It has very high common-mode rejection ratio(CMRR).
- It has very high input impedances.
