What are the different mates in SolidWorks?

What are the different mates in SolidWorks?

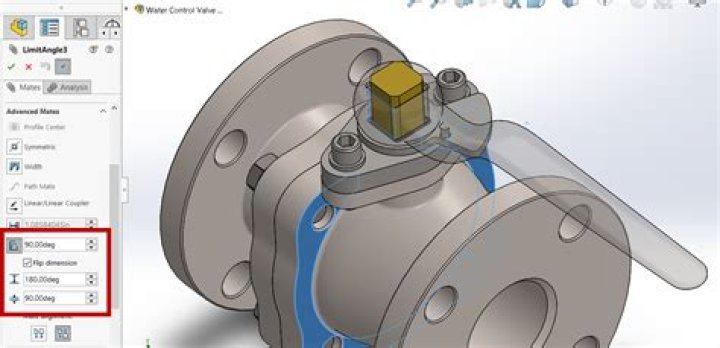

Standard mates include angle, coincident, concentric, distance, lock, parallel, perpendicular, and tangent mates. Advanced mates include limit, linear/linear coupler, path, profile center, symmetry, and width mates.

Which of the following configuration is possible with mate?

Do you ever need to set up different mates vales (Distance and Angle mates) for different configurations in the Assembly. You can download the files used from here to do this exercise/tutorial. 1. Open the Assembly the switch to configuration manager.

How do I create assembly configurations in SolidWorks?

To create a configuration manually:

1. In either a part or assembly document, click the ConfigurationManager tab at the top of the FeatureManager design tree to change to the ConfigurationManager.
2. In the ConfigurationManager, right-click the part or assembly name and select Add Configuration.

What are the assembly mates in SolidWorks?

Mates create geometric relationships between assembly components. As you add mates, you define the allowable directions of linear or rotational motion of the components. You can move a component within its degrees of freedom, visualizing the assembly’s behavior.

How do you switch between configurations in an assembly?

To configure a component:

1. In an assembly, right-click a component and click Configure Component .
2. In the Modify Configurations dialog box, you can: Create new assembly configurations. Change the component configuration used in each assembly configuration.

How do you mate multiple parts in Solidworks?

Select the faces, edges, planes, and so on that you want to mate together. Select the entity to which you want to mate several other components. Select entities on two or more other components to mate to the common reference. A mate is added for each component.

How do you change mates in configurations in SolidWorks?

Open the Mate Controller (Insert > Mate Controller). Collect all the supported mates (or mates required) Leave “Position 1” at a time of zero and select “Add Configuration” Change the position of a desired mate to move the assembly into a new position.

Which of the following configuration is not possible?

The electronic configuration 3f12 is not possible as third energy level can have s,p and d orbitals only.

How do you change mates in configurations in Solidworks?

How do you mate two parts in Solidworks?

To add a mate:

1. Click Mate (Assembly toolbar), or click Insert > Mate.
2. In the PropertyManager, under Mate Selections, select the entities that you want to mate together for Entities to Mate .
3. Click to close the PropertyManager, or click before you click to create a new mate.

How do I change the configuration of a part in assembly in SolidWorks?

How do I use assembly in Solidworks?

Creating an Assembly from a Part

1. Click Make Assembly from Part/Assembly (Standard toolbar) or File > Make Assembly from Part. An assembly opens with the Insert Component PropertyManager active.
2. Click in the graphics area to add the part to the assembly. SOLIDWORKS makes the first component fixed.
