What are the parts of polarimeter?
What are the parts of polarimeter?

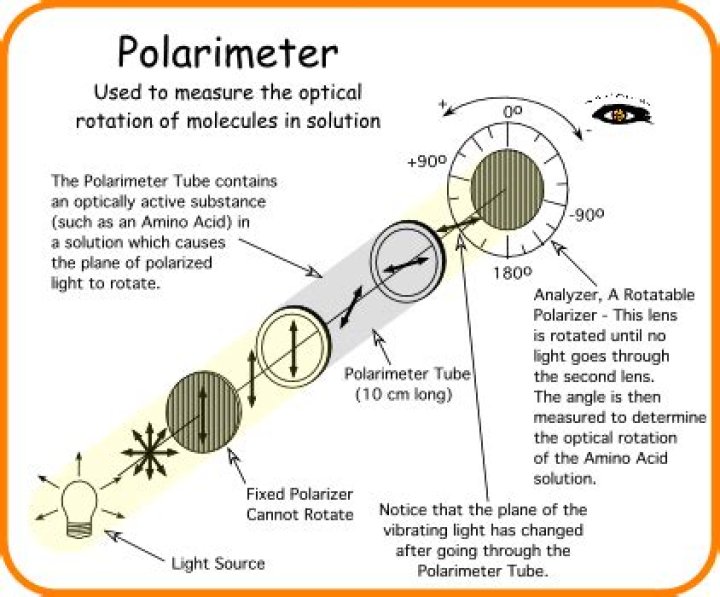

A polarimeter consists of a light source, a monochromator (filters out all but a specific wavelength of light), a polarizer (converts the light beam to plane polarized light), a sample tube (holds the sample being measured), a second polarizer (to determine the degree of rotation), and a light detector.
What is the working principle of polarimeter?
The basic operation principle of a polarimeter comprises the following: One generates light with an accurately prepared linear polarization state, usually by passage through a polarizer. That light is sent through the optically active sample, which somewhat rotates the polarization direction.
What are the applications of polarimeter?
Polarimetry is employed in quality control, process control and research in the pharmaceutical, chemical, essential oil, flavor and food industries. It is so well established that the United States Pharmacopoeia and the Food & Drug Administration include polarimetric specifications for numerous substances.
How much does a polarimeter cost?
However, while functionality has improved tremendously over the past fifty years, equipment costs have changed very little: in 1965, a manually operated high-resolution polarimeter from a leading manufacturer cost US$3300, equivalent to $27000 now; today, automatic high resolution polarimeters from the same supplier …
Which light is used in polarimeter?
sodium lamp
In a typical polarimetry experiment, monochromatic light is passed through the sample. A sodium lamp is usually used as the light source and the wavelength of its D line is 589.3 nm.
How do you calibrate a polarimeter?
5.2. 20 Rinse the tube with 10% solution and fill the solution in Polarimeter tube….5.2 Calibration
- Switch ‘On’ the mains.
- Wait till sodium lamp glows with the full intensity of yellow light.
- Rinse the Polarimeter tube with distilled water.
- Adjust the vernier scale and main dial scale to zero.
Which lamp used in polarimeter?
Mercury (Hg) lamps can be used as light sources for a polarimeter because they produce many emission lines from the ultraviolet to the visible region. The wavelength of the mercury green line at 546.1 nanometres is also used.
What is the wavelength of polarimeter lamp?
589.44nm
Sodium Lamp Polarimeter, Wavelength 589.44nm
| Scale Value | 1 Deg |
|---|---|
| Vernier | +-0.05 Deg |
| Magnifier | 3X |
| Light Source | Sodium Lamp |
| Wavelength | 589.44nm |
How do you standardize a polarimeter?
How do you clean a polarimeter tube?
5.0 PROCEDURE 5.2 Switch off the mains. 5.3 Remove the solution /sample from the polarimeter tube. 5.4 Clean it with a respective solvent in which solution of the sample is prepared. 5.6 Clean it thoroughly with water.
