What are the three main components of an X-ray diffractometer?
What are the three main components of an X-ray diffractometer?

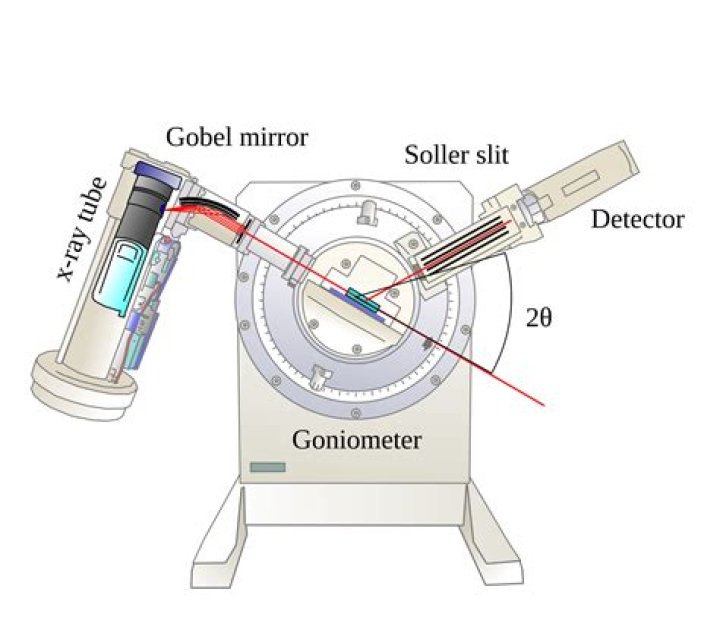

X-ray diffractometers consist of three basic elements: an X-ray tube, a sample holder, and an X-ray detector. X-rays are generated in a cathode ray tube by heating a filament to produce electrons, accelerating the electrons toward a target by applying a voltage, and bombarding the target material with electrons.
What is 2 theta value in XRD?
2 θ is the angle between transmitted beam and reflected beam. In any experiment the transmitted and reflected beam can be observed, so 2 θ is an experimentally measurable quantity. But the crystallographic plane cannot be observed.
What are the conditions for x-ray diffraction?
A given number of x-rays must pass through a crystal, regardless of its size, to produce a desired number of counts in each diffraction spot. Thus, as the number of unit cells in a crystal decreases, the x-ray exposure per unit cell must increase proportionately.
Why are 2 theta diffraction angles measured?
Only those crystallites whose bragg planes are at an angle θ with respect to the incident angle will diffract at an angle 2θ with respect to the incident beam (or at an angle θ with respect to the diffracting planes). So that is the reason, you always use 2θ instead of θ.
How do you calculate d spacing from 2 theta?
The first order Bragg diffraction peak was found at an angle 2theta of 50.5 degrees. Calculate the spacing between the diffracting planes in the copper metal. We can rearrange this equation for the unknown spacing d: d = n x wavelength/2sin(theta).
What are the factors that determine the intensity of X-ray diffraction peaks?
The position of the diffraction peaks are determined by the distance between parallel planes of atoms. from X-rays scattered by parallel planes of atoms will produce a diffraction peak. – In most diffractometers, the X-ray wavelength λ is fixed.
What is 2 theta in Bragg’s law?
This is due to Bragg’s equation. Here theta is the angle between incident beam of x ray and crystallographic reflecting plane, which is also equal to the angle between reflected beam and crystallographic plane. On the other hand, 2- theta is the angle between transmitted x-ray beam and reflected beam.
What is diffraction angle in XRD?
The diffraction angle, 2θ, is defined between the incident beam and the detector. • The incident angle ω is always ½ of the detector angle 2θ . – In a θ:2θ instrument (e.g. Rigaku H3R), the tube is fixed, the sample rotates at θ °/min and the. detector rotates at 2θ °/min.
WHAT IS D-spacing in Xray diffraction?
The d-spacing can described as the distance between planes of atoms that give rise to diffraction peaks. Each peak in a diffractogram results from a corresponding d-spacing. The planes of atoms can be referred to a 3D coordinate system and so can be described as a direction within the crystal.
How do you calculate d-spacing from diffraction pattern?
It can be calculated by the Bragg’s law: λ=2dsin(Ɵ) where λ is the wavelength of the X-ray beam (0.154nm), d is the distance between the adjacent GO sheets or layers, Ɵ is the diffraction angle.
What is the book on X-ray diffraction?
The book is a collection of principles and methods stressing X-ray diffraction rather than metallurgy. The book is written entirely in terms of the Bragg law and can be read without any knowledge of the reciprocal lattice. It is divided into three main parts— Fundamentals; experimental methods; and applications.
What is the purpose of the X-ray theory book?
Intended to acquaint the reader with the theory of x-ray diffraction, the experimental methods involved, and the main applications. The book is a collection of principles and methods stressing X-ray diffraction rather than metallurgy.
What is X-ray action?
X – ray action is a the fine structure tool for investigation of matter. Astonishing, simply the greatest, the best of the best, fine, nice, absolutely a blast i need to read this book to review the X-ray characteristics.
