What are the types of linear motion bearings?

What are the types of linear motion bearings?

Linear Bearing Types Choices for linear bearing styles include air, flat ball cage, ball spline, ball bushing, needle roller cage, cam follower, crossed roller, guide wheel, hydrostatic, plain or journal, linear motion guide, flat roller cage, and linear roller.

How many types of needle roller bearings are there?

There are two main types of needle roller bearings with machined rings – needle roller bearings without inner rings, and needle roller bearing with inner rings. Needle roller bearings without an inner ring are used with hardened and ground shafts, which allows for use of a larger shaft, offering increased stiffness.

What is linear ball bearing?

Linear ball bearings provide linear movement in one direction. A roller bearing, carries a load by placing rolling balls or rollers between two bearing rings called races. These bearings are comprised of an outer ring and several rows of balls retained by cages.

What is a linear bearing used for?

Linear bearings are used in machine tool applications such as sliding doors, 3D printers, and automation settings where reducing friction and guiding linear motion is needed.

How do I choose a linear guide?

How to choose linear guide accuracy

1. Height tolerance of the rail and block assembly.
2. Permissible difference in height between multiple blocks on the same rail.
3. Width tolerance of the rail and block assembly.
4. Permissible difference in width between multiple blocks on same rail.

What are linear motion guides?

A linear guideway allows a type of linear motion that utilizes elements such as rolling balls. By using recirculating elements between rail and block, linear guideways can achieve high precision linear motion and greatly enhanced moving accuracy.

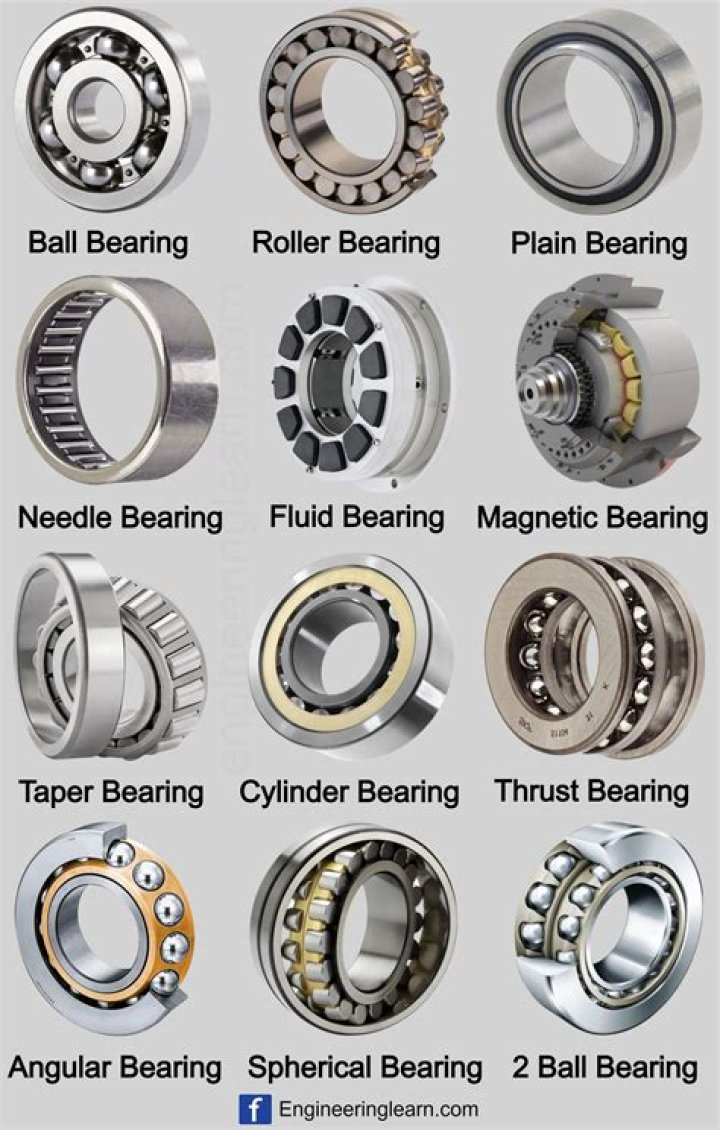

How many types of bearings are there?

There are many different types of bearings, each used for specific purposes and designed to carry specific types of loads, radial or thrust. Here, we’ll look at the 6 most popular types: plain bearings, rolling element bearings, jewel bearings, fluid bearings, magnetic bearings, and flexure bearings.

Why is it called a needle roller bearing?

Needle roller bearings are the smallest and lightest of the roller bearing family. That gives them specific advantages for certain applications, particularly those requiring reduced weight and space. The high roller length-to-diameter ratio helped give the bearings their name as well as their operating characteristics.

Where are linear motion bearings used?

Linear bearings are used in machine-tool ways, in sliding doors, 3D printers, and in a variety of automation settings where reducing friction and guiding linear motion is needed.

How do you choose linear bearings?

Choosing a Linear Bearing: A Quick Reference Guide

1. Loading.
2. Low profile.
3. Temperature resistance.
4. Corrosion resistance.
5. Price.
6. Environmental performance.
7. Adjustable clearance availability.

How accurate are linear bearings?

They hold from 0.0002 to 0.001 in. over a length of 10 ft, with typical 3 to 10-μm/m parallelism between the bearing guide and rail. They also maintain this precision under moment loads; a single carriage and rail is often better suited for this than around rail.
