What degree is the flare on a JIC fitting?
What degree is the flare on a JIC fitting?
37 degree

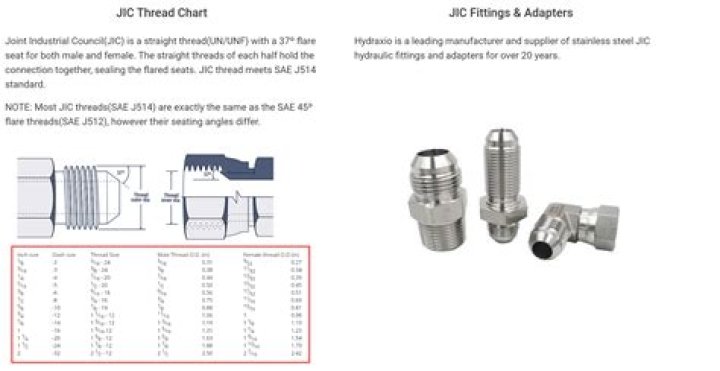

JIC (or Joint Industry Council) fittings, defined by SAE J514, are compression fittings machined with a 37 degree flare seating surface and parallel threads. They are commonly manufactured in nickel alloys, brass, carbon & stainless steel.
What is 37 degree flare used for?
37° flare fittings perform well in severe applications where vibration, high pressure, and thermal shock exist. The flare fitting sleeve insures tube alignment with the fitting body axis and minimizes mechanical strain on the tube.
How do you flare 37 degrees?
Starts here1:13How to Flare Tubing for AN Fittings – Quick Tip – YouTubeYouTubeStart of suggested clipEnd of suggested clip44 second suggested clipTool you’re using mine. Tells you to go ahead and turn three to four full turns. Down into that tubeMoreTool you’re using mine. Tells you to go ahead and turn three to four full turns. Down into that tube to get the proper 37 degree flare.
Why is JIC 37?
JIC Steps In The Joint Industries Council (JIC), sought to clear the air by standardizing the specifications on this type of fitting by creating the “JIC” fitting standard, a 37-degree fitting with a slightly lower class of thread quality than the military AN version.
How is flare angle measured?
Starts here2:20How To Tell The Angle On SAE Fittings? – YouTubeYouTube
How do you read a JIC fitting?
Starts here10:33JIC Fittings / Thread – Identification & Installation – Heads Up for HosersYouTube
What are flare fittings used for?
Flared fittings are also a good option for use with heavy machinery, and industrial and construction equipment. They are the fitting is most commonly used to connect tube or hose in high-pressure and high-temperature applications. The flare fitting is commonly used world-wide because it is a simple construction.
What does JIC stand for?
JIC
| Acronym | Definition |
|---|---|
| JIC | Joint Intelligence Committee |
| JIC | Jewelry Information Center |
| JIC | Just In Case |
| JIC | Joint Intelligence Center |
What the difference between 37 and 45 degree flare?
JIC 37 degree flare union fittings is in most hydraulic systems in high pressure application such hydraulic excavator, loader and tractor etc. SAE 45 degree flare fittings is used in low to medium pressure applications such as military and aerospace equipment. they doesn’t interchangeable into each other.
What is a female flare fitting?
Flare fittings A flare fitting has a tapered end that fits into a flared piece of tubing and is secured in place with a sleeve and flare fitting (threaded nut) to produce a pressure-resistant, leak-tight seal.
Should you use thread sealant on hydraulic fittings?
You don’t need or should use any teflon tape or pipe dope on hydraulic fittings. Neither are designed for those kinds of pressures and using them could create a less then perfect mating between connection surfaces causing more harm than good.
