What does APL valve stand for
The adjustable pressure-limiting (APL) valve is part of the anaesthesia machine breathing circuit. The APL releases anaesthetic gases into the scavenging system and is intended to provide pressure control in the breathing circuit during manual bag ventilation.
What is APL valve in Anaesthesia machine?
The APL valve, also known as the pop-off valve, has two functions. It limits the maximum pressure during manual ventilation. It also exhausts excess gas into the scavenger system during manual and spontaneous ventilation. The APL valve is connected to the patient airway through the ventilator.
Why APL valve is important?
The APL valve controls the fill of the breathing circuit and provides an interface between the breathing circuit and the scavenging system. It needs to be closed completely, or at least partially, when providing a positive pressure breath to the patient.
What does open APL valve mean?

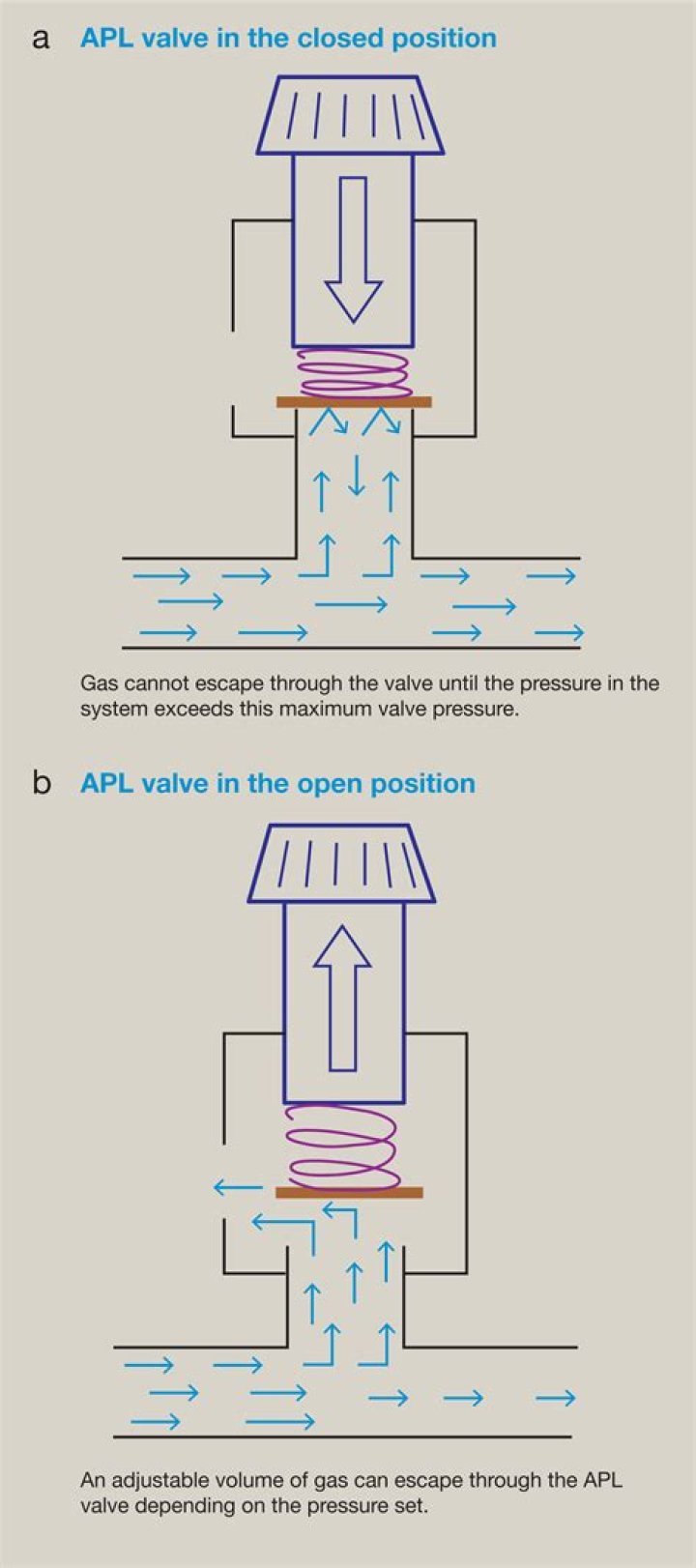

The APL valve can either be completely closed (no gas vented), completely open (all gas vented – this makes it impossible to ventilate the patient – no gas buildup is possible and the manual breathing bag stays fully deflated), or any position in between.What does it mean when APL valve is closed?
When the adjustable pressure limiting (APL) valve is closed and all the exhaled gases without carbon dioxide are returned to the patient, the system becomes a totally closed one. Such a circle system can be used with flows as low as 250 to 500 mL and clinically can be termed as low-flow systems.
How do I open my APL valve?
You should not hear any gas escaping. With the end of the tube still covered, open the APL valve by turning it anti-clockwise. This sets the valve to ‘low pressure’ meaning gas in the breathing system will escape to the scavenging system.
Does the APL valve provide peep?
The Ultra APL valve maintains a sensitive and accurate control of inspiratory pressures whilst an adjustable PEEP valve maintains prescribed PEEP enabling manual ventilation for the PEEP dependent patient.
What is oxygen flush valve used for?
The oxygen flush valve is a device to allow direct communication between the oxygen high-pressure circuit and the low-pressure circuit. When the oxygen flush button is depressed, the oxygen flush valve will open and deliver 100% oxygen flow of 35 to 75 L/min to the breathing circuit and mainly provide jet ventilation.What happens when pop-off valve is left closed?
Pop-off valve related morbidity and mortality is an often discussed adverse anesthetic outcome. Left closed, excessive pressure build in the anesthetic system. In the short term the patient is unable to ventilate which increases PaCO2 and decrease PaO2.
What is the function of the expiratory valve set?The main tasks of the expiratory valve sets are to control the respiratory phases and the positive end-expiratory pressure (PEEP). Their design also prevents internal ventilator components from coming into contact with the patient’s exhaled gas.
Article first time published onWhat is the use of soda lime in anesthesia?
Soda lime is a mixture of NaOH & CaO chemicals, used in granular form in closed breathing environments, such as general anaesthesia, submarines, rebreathers and recompression chambers, to remove carbon dioxide from breathing gases to prevent CO2 retention and carbon dioxide poisoning.
What is ACGO?
The Auxiliary Common Gas Outlet (ACGO) port is used to provide fresh gas to an auxiliary manual breathing circuit. It comes under the Breathing Gas Circuit (BGC) manifold in an anesthesia delivery system with an integrated breathing system.
What is Peep measured in?
This pressure is typically achieved by maintaining a positive pressure flow at the end of exhalation. This pressure is measured in centimeters of water.
What is a ventilator machine?
A ventilator is a machine that helps you breathe when you’re sick, injured, or sedated for an operation. It pumps oxygen-rich air into your lungs. It also helps you breathe out carbon dioxide, a harmful waste gas your body needs to get rid of.
What is a Jackson Rees circuit?
The Jackson-Rees Circuit is commonly used in pediatric general anesthesia due to its low resistance and minimal dead space. Patient inhales fresh gas from the machine.
What is the ventilator relief valve?
The ventilator relief valve or spill valve has a minimum opening pressure of 2-4 cm of H2O with ascending bellows design. [13] This enables the bellows to fill during expiration. This causes all ascending bellows ventilators to produce 2-4 cm of H2O positive end-expiratory pressure (PEEP) within the breathing circuit.
What is a peep valve?
A PEEP valve is simply a spring loaded valve that the patient exhales against. PEEP prevents ventilator induced lung injury – The loss of lung units taking part in gas exchange as a result of collapse at end expiration impairs oxygenation.
How does an anesthesia machine work?
The anesthesia machine receives medical gases from a gas supply, controls the flow and reduces the pressure of desired gases to a safe level, vaporizes volatile anesthetics into the final gas mixture, and delivers the gases to a breathing circuit that is connected to the patient’s airway.
What will happen if you hit the oxygen flush button on an anesthetic machine?
(B) Pushing the oxygen flush button inward forces the ball valve off the valve seat and the oxygen flows into the common gas outlet of the anesthesia machine.
What is a Bain circuit?
– A Bain circuit is an anesthesia delivery system that connects a patient’s airway to the anesthesia machine. It creates an artificial atmosphere through which a patient breathes in and out.
What is flush rate oxygen?
NRB mask with flush rate oxygen is a reasonable preoxygenation method for spontaneously breathing patients undergoing emergency airway management. The authors acknowledge Robert Carney, BS for his assistance in determining the actual flow rates of the flowmeter.
How do you exhale on a ventilator?
During a natural exhalation, the diaphragm muscle relaxes and air leaves the lungs. A ventilator works by pushing air into the lungs. The air is pushed in until it reaches a pre-set volume or pre-set pressure. Once the lungs are full, the vent stops pushing the air into the lungs.
Where does exhaled air from a ventilator go?
When over pressure is released, the patient will exhale passively due to the lungs’ elasticity, the exhaled air being released usually through a one-way valve within the patient circuit called the patient manifold.
What type of valves are used in ventilators?
Gems Sensors manufactures sub-miniature solenoid valves that are used within medical ventilators. Unfortunately, this past year we all learned more about this medical device from its use in treating patients ill with COVID-19.
What plants convert the most CO2?
So the plants that are considered the most adept at locking away carbon dioxide from the atmosphere are the longest-living ones, with the most mass – hardwood trees. It’s all temporary though. Eventually every plant returns all the carbon dioxide it uses back to the atmosphere.
What does anesthesia gas smell like?
The anaesthetic gas has a funny smell, kind of like a permanent marker.
What is the name of the waste product produced by a patient's breathing during anesthesia?
Waste anesthetic gases include both nitrous oxide and haloge nated anesthetics such as halothane, enflurane, isoflurane, desflurane, sevoflurane, and methoxyflurane (no longer used in the United States).
What is common gas outlet?
Common gas outlet: This connects to the anaesthetic breathing circuit to deliver the combined product of gases and anaesthetic agent to the patient. It is also used by the oxygen flush, in the case of an emergency.
What is FiO2 and PEEP?
Initial Adult Ventilator Settings. You have to start somewhere ✓ Fraction of inspired oxygen (FiO2)—100% ✓ Positive End Expiratory Pressure (PEEP)–5 cmH20 ✓ Respiratory Rate—12 breaths per minute ✓ Tidal Volume 6-8 ml per weight in kilograms (ideal body weight). Most adults will require at least 500 ml.
What does a PEEP of 5 mean?
A higher level of applied PEEP (>5 cmH2O) is sometimes used to improve hypoxemia or reduce ventilator-associated lung injury in patients with acute lung injury, acute respiratory distress syndrome, or other types of hypoxemic respiratory failure.
What is normal PEEP?
Applying physiologic PEEP of 3-5 cm water is common to prevent decreases in functional residual capacity in those with normal lungs. The reasoning for increasing levels of PEEP in critically ill patients is to provide acceptable oxygenation and to reduce the FiO2 to nontoxic levels (FiO2< 0.5).
