What does gusset mean in construction?
What does gusset mean in construction?

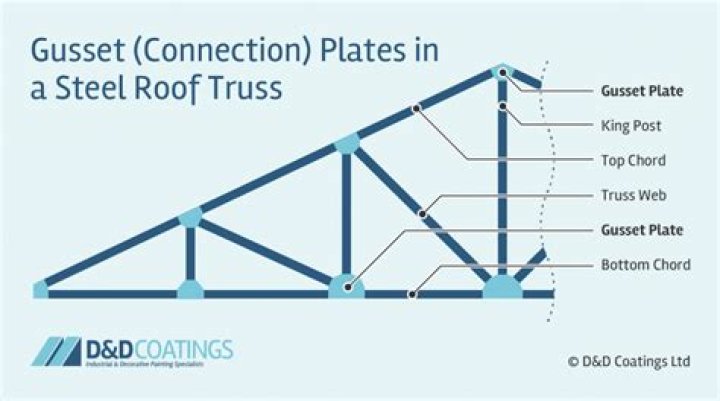

A gusset is a bracket that strengthens an angle of a structure in the construction business. Engineers use thick solid steel or iron plates (gusset plates) that connect girders and beams to the columns or connect truss members in a building, bridge and other complex industrial structures.
What does gusset mean?
Definition of gusset 1 : a usually diamond-shaped or triangular insert in a seam (as of a sleeve, pocketbook, or shoe upper) to provide expansion or reinforcement. 2 : a plate or bracket for strengthening an angle in framework (as in a building or bridge)
What is a gusset framing?
Gussets are the most common connector here at Framing Tech. They allow the fastening of two pieces of extrusion at a 90° angle without the need for machining. One of their features is an alignment tab that helps hold the position in the T-slot, and also prevents the gusset from rotating.
What is gusset plate in construction?
A gusset plate is a thin metal object, typically made of steel, that is used to affix independent members of a structure to each other or to a beam to aid alignment. Gusset plates are used in joint, bend or otherwise disjointed structural locations that require additional support to withstand stresses.
Where are gussets used?
In sewing, a gusset is a triangular or rhomboidal piece of fabric inserted into a seam to add breadth or reduce stress from tight-fitting clothing. Gussets were used at the shoulders, underarms, and hems of traditional shirts and chemises made of rectangular lengths of linen to shape the garments to the body.
How do gussets add strength?
In a similar fashion, gussets are support features that reinforce areas such as walls or bosses to the floor. Just as bridge beams and columns are supported at their vertex with gussets to add critical strength to the structure, the same concept applies to plastic injection molding.
What is another word for gusset?
What is another word for gusset?
| enlargement | extension |
|---|---|
| insert | inset |
| patch | reinforcement |
| support |
How does a gusset work?
In sewing, a gusset is a triangular or rhomboidal piece of fabric inserted into a seam to add breadth or reduce stress from tight-fitting clothing. As with other synthetic underwear, these gussets are often made of moisture-wicking breathable fabrics such as cotton, to keep the genital area dry and ventilated.
What is gusset support?
Gusset plates are used to connect beams and columns together or to connect truss members. They can be either the only way of connecting the beam and columns or they can be used with bolts and welds. Gusset plates provide an easy way to retrofit structures that can no longer safely support the applied loads.
How big do gussets need to be?
Gussets in the Trusses
| No. 1 Lumber Size | Max Span 16” Centers | Max Span 24” Centers |
|---|---|---|
| 2”x 4” | 9′ – 3” | 7′ – 9” |
| 2”x 6” | 13′ – 8′ | 11” – 2” |
| 2”x 8” | 17′ – 3” | 14′ – 1” |
| 2”x 10” | 21′ – 1” | 17′ – 3” |
What is the minimum thickness of gusset plate?
Explanation: The thickness of gusset plate in any case should not be less than 12mm. Structurally a gusset plate is subjected to shear stresses, direct stresses and bending stresses and therefore it should be of ample thickness to resist all these at the critical section.
