What is a 12 3 wire for?

What is a 12 3 wire for?

ROMEX® 12/3 wire is used in buildings for circuits that use higher amperage than the standard 20 amps. Most people are not familiar with this type of wire because it is used to hook up heavy-draw appliances such as water heaters and central air conditioning.

What is the difference between 12 to wire and 12 three wire?

Bottom line is that you use 12/2 when you need two conductors plus ground, and 12/3 when you need three conductors plus ground. This is somewhat like asking the difference between a 2-inch screw and a 3-inch screw.

What is the black wire in 12 2?

Cable refers to two or more wires encased in a protective sheathing. Cable packaging indicates the gauge and number of wires. For example “12/2 WG” means two (black and white) 12-gauge wires plus a ground wire.

What is 14 3 electrical wire used for?

What is 14 3 electrical wire used for? 14–3 cable (14 AWG–3 insulated conductors) allows you to have two separate hot conductors sharing the same neutral. This is generally required for three- and four-way switches, but I also prefer to use it for the last leg of a circuit from the switch to the fixture.

Can I use 14 3 wire for outlets?

14–3 contains 4 wires: one ground, one neutral and two hot wires (one black and one red). Fred is correct that a 14–3 wire should be used for what is called a three way switch, but it can be used in several other places as well. They can share a common neutral and ground wire.

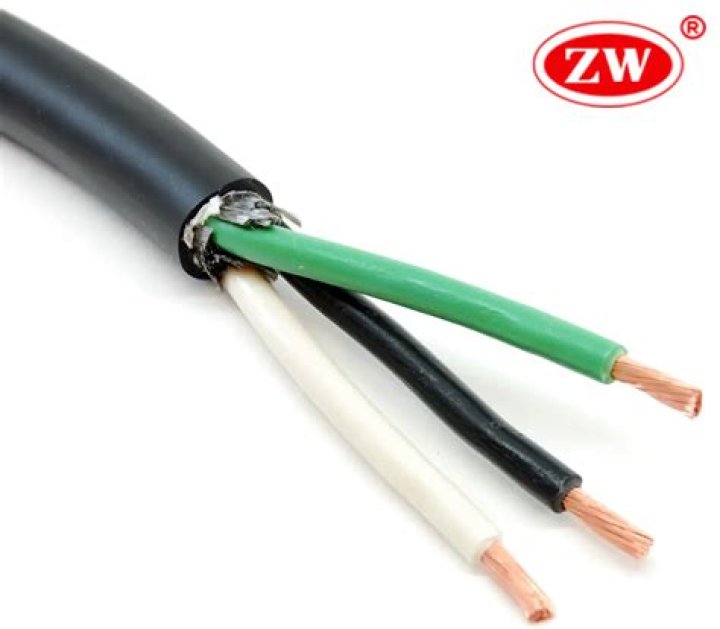

What does 12-3 wire look like?

12-3 cable is four wire cable, all 12 gauge. One conductor is black, one is white, one is red. and one is bare (no insulation). Except for a switch loop, the black and red are used for hot wires and the white is used for the neutral.

What is 12 2 the same as?

“12-2” means 12 gauge, two insulated current carrying wires, plus a bare ground. 12-3 wire usually has a black, red, white and bare ground wire. 12-3 wire is used for 220V with neutral or in three-way switch applications as the traveler between the switches where you need an extra wire.

Is the existing 3 wire service feed to sub panel acceptable?

@Tester101 explained if the existing feed to the subpanel is 3 wire with a grounded neutral and two hots and is not electrically connected to your main panel, your sub should have a bonded ground/neutral. Is this an acceptable way to ground the sub panel?

Can a sub panel be run with a power cable?

You can have the best of both worlds. You are allowed to retrofit a separate equipment ground wire. Just run a bare copper wire from the sub-panel grounding system to the main panel ground. Use any practical route you please, there’s no requirement that it run with the power cable.

When was 4 wire conductors required for sub panels?

Does anyone know when 4 wire conductors were required for the feed between the service panel and the sub panel. I inspected a home today that was built in 1974. It has one service panel with a 225 AMP breaker and 3 sub panels fed from the main with a 100 AMP, a 125 AMP and a 150 AMP breaker.

Can a neutral be connected to a service panel?

Now the neutrals and grounds are only permitted to be connected together at the service panel. Otherwise you run the risk of the panel being energized. That is why you should not see a bonding screw installed in a distribution panel. I believe it was ’96 when a four-wire feed became the norm, but don’t quote me on that.

Where is the neutral wire on a breaker panel?

The location of the neutral bus bar varies depending on the panel manufacturer, but it is always located well away from the two hot bus bars. It is a silver-colored bar with many smaller screws and connection points, with one larger hole for the main service neutral wire.

Do you need a 4th wire for a subpanel?

You will need to add a fourth wire. The subpanel is likely to arrive from the manufacturer with a bonding screw which you must remove to isolate the neutral from the ground. I think a separate ground rod is okay, but the grounds must be connected between panels through a #6 (or heavier) ground wire.

Is there a limit on the number of sub-panels in a breaker panel?

The amp rating of the circuit in the main breaker panel must be the same or less than the rating of its connected sub-panel. Also, the only limit for the number of sub-panels you can have is the number of available circuits in your main breaker panel. Note that sub-panels do not increase the amount of available power.

What’s the difference between 120V and 240V main panel?

Both supply voltage levels are single phase supply system except two hot wires provide out of phase (180°) voltage as compared to 120V between hot and neutral. These three wires enter to the meter box and then connect to the main panel box.
