What is a die angle?
What is a die angle?

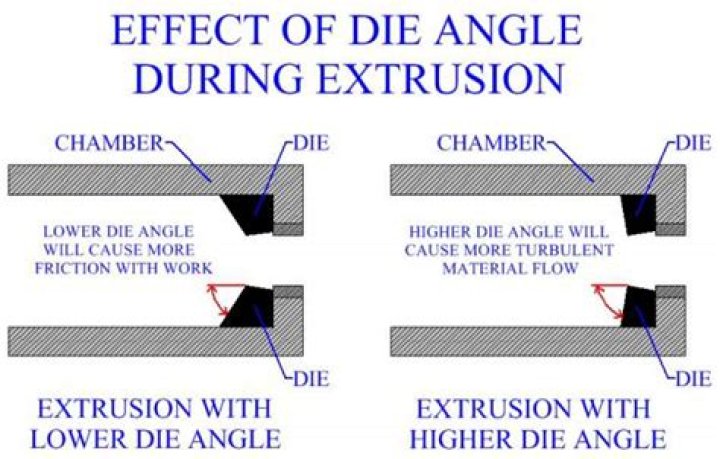

4.2. Note that α is the angle between the die wall and the drawing centerline, sometimes actually called the “half-angle” or “semi-angle,” with the “included angle” of the die as 2α. Die half-angles and included angles are usually given in degrees.
What is the optimum number of dies for wire drawing?
Summary. Wire drawing is one of the processes where optimization techniques have proved able to provide improved solutions in terms of drawing force, but also of strain and stress homogeneity—essential for damage and for residual stresses, two major characteristics of the drawn wire.
Why do we create a degree angle the cutting punch in a cutting operation die?
The reason die angles change in part is to compensate for springback. A narrower die angle allows for a greater amount of available penetration into the die space while forcing the material further around the punch nose during the forming process.
What is a wire drawing die?
Wire drawing dies are tools with highly-polished, specially-shaped holes through which wire is drawn to reduce its diameter. They have a metal case and a nib made of: tungsten carbide (TC) polycrystalline diamond (PCD)
What are wire drawing dies?
Why is lubrication difficult in wire drawing?
The wire rod has hard oxide layer or scale on its surface, which must be removed, because otherwise, the abrasive scale will decrease die life as well as damage the surface quality of drawn wire.
What do you understand by shear on punch and die?
A shear is a tool for cutting metal and other materials by a closing motion of two sharp, closely adjoining edges. punching. A general term describing the process of die cutting a hole in material such as sheet metal, plate, or some structural shape. A punch is the male part of a die set and usually the upper member.
Why shear is provided on punch and die?
This angle of inclination is called shear. In punching and blanking operations the shear is provided respectively on punch face and die face respectively because of the cutting action will occur accordingly. Shear reduces the punch load, acts gradually and it is always less than equal to the thickness of sheet metal.
How can we tell the size of a die?
die size = core size + pad height + power ring width.
What is die measurement?
The die size of a specific chip is the physical dimensions of a bare die. In other words, the length and width of the integrated circuit.
What are diamond dies?
Definition of diamond die : a wiredrawing die made of diamond for drawing fine wire of hard metals (such as tungsten)
