What is a Dyna bolt used for?
What is a Dyna bolt used for?
The Dynabolt is a sleeve-type anchor that is specified for anchoring into concrete, hollow concrete block, grout-filled concrete block and brick base materials.
What size hole do you drill for a 12mm DynaBolt?
Product range
| Item Description | Anchor Thread Diameter (Metric) | Drill Hole Diameter |
|---|---|---|
| M10 x 59mm | M10 | 12 mm |
| M10 x 75mm | M10 | 12 mm |
| M10 x 105mm | M10 | 12 mm |
| M12 x 110mm | M12 | 16 mm |
Can you DynaBolt into brick?
The DynaBolt™ Plus is a masonry anchor for use in concrete, brick or block, with a unique “pull-down” section that closes gaps of up to 5mm.
How much can a Dynabolt hold?
The DynaBolt™ Plus patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load and provide improved security….
| Material | Carbon Steel, Stainless Steel 316 (A4) |
|---|---|
| Indicative Working Loads in 32MPa Concrete* | Max Tensile 2.7kN -16.6kN Max Shear 2.5kN – 15.6kN |
How do you tighten a DynaBolt?
Insert the DynaBolt™ Plus through the fixture and drive with a hammer until the washer contacts the fixture. 3. Tighten the DynaBolt™ Plus, allowing the sleeve to twist and pull down the fixture firmly onto the substrate. For optimum performance, a torque wrench should be used.

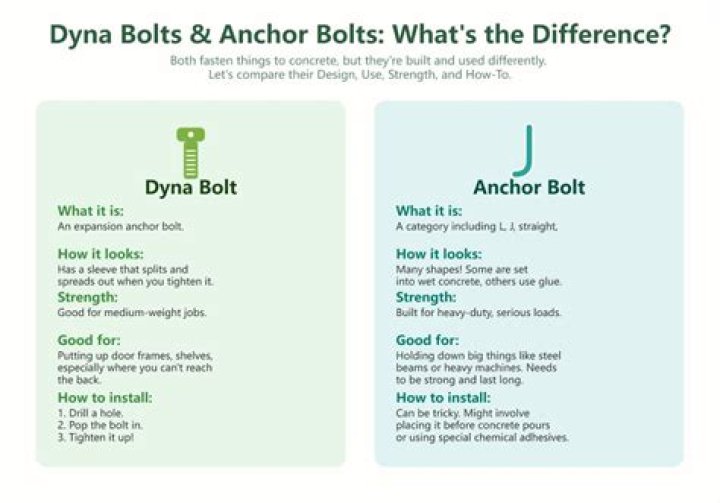

What is the difference between anchor bolt and expansion bolt?
The anchor bolt allows a smooth screw to be stressed by mechanical locking force; The expansion bolt mainly generates friction by pressing, and the force is applied.
How much bigger should a hole be than a bolt?
Select a drill bit 1/32 inch larger than the bolt diameter for a tight fit hole or a drill bit 1/16 inch greater than the bolt diameter for a loose fitting hole.
Can you drill out a Dynabolt?
Dynabolts are designed for concrete and brick and are not designed to be removed. This can make removing them difficult, but there are ways to remove them. If you simply try to pull them out, they will not come out because they expand in the hole and will resist being pulled out.
