What is a good cleaning procedure of dye penetrant inspection?
What is a good cleaning procedure of dye penetrant inspection?
All penetrant should be removed with clean, dry, lint-free rags until thoroughly clean. The part or material should be rubbed vigorously until the penetrant is not visible on the dry rags.
What are the properties required for a good penetrant?
A penetrant must:
- spread easily over the surface of the material being inspected to provide complete and even coverage.
- be drawn into surface breaking defects by capillary action.
- remain in the defect but remove easily from the surface of the part.
Which method is acceptable for penetrant application?
Penetrant Application and Dwell Time The penetrant material can be applied in a number of different ways, including spraying, brushing, or immersing the parts in a penetrant bath. Once the part is covered with penetrant it must be allowed to dwell so the penetrant has time to enter any defect that is present.
What is the prerequisite for a penetrant test?
The PCN requirements for Penetrant Level 1 are: 16 hours training, previous to the exam, and 1 month supervised work experience, to be obtained either before the examination, or within 24 months after passing the exam.
How do you clean penetrant dye?
Removing Penetrant When sufficient penetration time has been allowed, wipe the surface clean with a clean towel or cloth. Repeat if necessary. Some surfaces will require only wiping. In general, however, remove excess surface penetrant with clean cloths premoistened with cleaner/remover.
What are the five essential stages of dye penetrant?

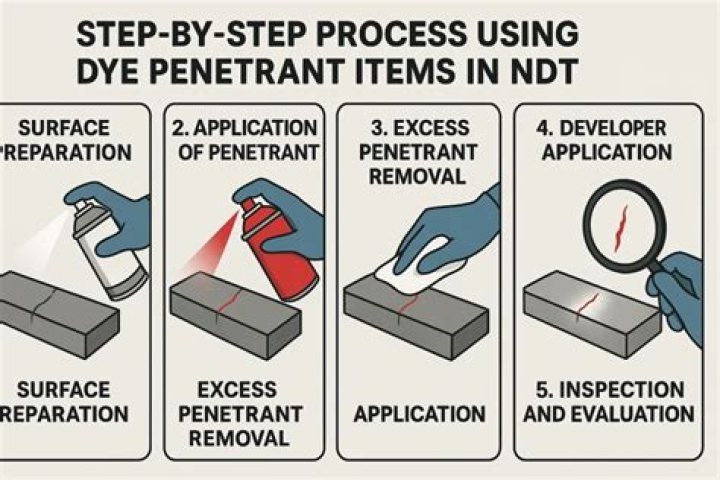

Below are the main steps of Liquid Penetrant Inspection:
- Pre-cleaning:
- Application of Penetrant:
- Excess Penetrant Removal:
- Application of Developer:
- Inspection:
- Post Cleaning:
What does liquid penetrant testing detect?
Liquid Penetrant Testing (PT) is used to detect casting, forging and welding surface defects such as hairline cracks, surface porosity, leaks in new products, and fatigue cracks on in-service components.
What are the limitations of liquid penetrant testing?
Liquid penetrant testing has the following disadvantages:
- Extensive, time-taking pre-cleaning critical—surface contaminants can mask defects.
- Sensitive to surface-breaking defects only.
- Direct connection to the surface under test necessary.
- Works on relatively non-porous surface materials only.
- No depth sizing.
What Cannot be inspected by DPT?
We can only detect any surface discontinuity (or irregularity) such as surface cracks, porosity, pinholes, etc. by this test method. Principle: DPT is based on the principles of CAPILLARY ACTION.
Why pre-cleaning is important in liquid penetrant testing?
Pre-cleaning of parts is critical since contaminants can mask defects, and post-cleaning is required to remove residues. Liquid penetrant inspection can be used successfully on nonporous and fairly smooth materials such as metals, glass, plastics and fired ceramics.
What is the disadvantage of the liquid penetrant test?
Liquid penetrant testing has the following disadvantages: Extensive, time-taking pre-cleaning critical—surface contaminants can mask defects. Sensitive to surface-breaking defects only. Direct connection to the surface under test necessary.
What is the purpose of dye penetrant test?
Dye Penetrant Inspection (DPI) is widely used to detect surface breaking flaws. This non-destructive testing technique, also known as liquid penetrant inspection (LPI), is a cost-effective method used to locate surface breaking flaws such as cracks, porosity, laps, seams and other surface discontinuities.
