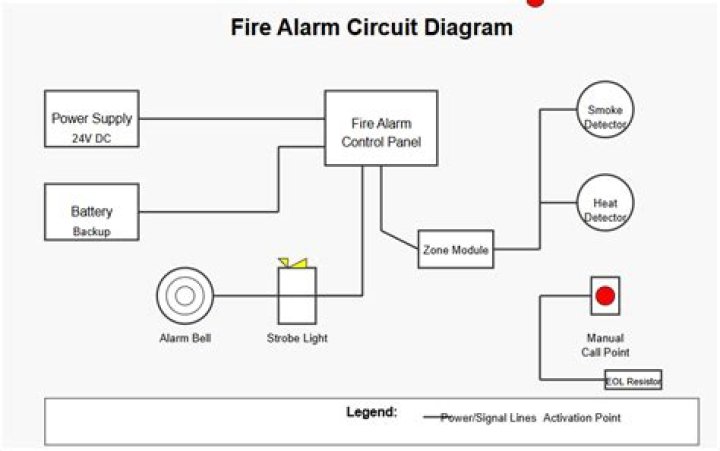

What is a non power limited fire alarm circuit
For example, a nonpower-limited fire alarm (NPLFA) circuit is a circuit that can’t operate at more than 600V. Neither power nor current for such circuits is limited. An NPLFA circuit is similar to a Class 1 circuit.
What are power limited circuits?
Class 1 power-limited circuits have a current limiter on the power source that supplies them. This limiter is an OCPD that restricts the amount of supply current on the circuit in the event of an overload, short circuit, or ground-fault. A transformer or other type of power supply supplies power to Class 1 circuits.
What is non power limited fire alarm cable?
Non-power limited cables is a fire alarm circuit powered by a source that complies with NEC sections 760-21 and 760-23. Power limited cables is a fire alarm circuit powered by a source that complies with section 760-41.
What is non power limited circuits?
Nonpower-limited fire alarm circuits cannot operate at more than 600 volts, and there is no other power or current limitation for these systems. Usually these are used in 120- volt alternating current (AC) systems which have been rendered generally obsolete by the advent of low-voltage, direct current (DC) systems.What is a power limited source?
A Limited Power Source (LPS) as defined in IEC 62368-1 and IEC 60950, is a secondary circuit with an open circuit output voltage, UOC, not exceeding the SELV circuit limits of 42.4 VPEAK or 60 VDC. … The output power must not exceed 100W.
What class circuit is a doorbell?
A common example of Class 2 circuitry in your home is the doorbell wiring and associated transformer. The doorbell button on the front and rear of your home is a switch, opening and closing the connection between two low-voltage conductors, as you press the button.
What is the maximum voltage limit for a Class 1 non power limited circuit?
(ii) A Class 1 remote control circuit or a Class 1 signaling circuit has a maximum voltage of 600 volts; however, the power output of the source need not be limited. (b) Class 2 and Class 3 circuits.
What is the difference between a Class 1 and Class 2 circuit?
Class 1 wiring is actually required to exceed standards for power and lighting wiring. … Major differences in the installation of Class 2 wiring are that conductor sizes 18 and 16 AWG are permitted and splices, such as with wire nuts, are permitted outside of conventional enclosures.What are the two main types of circuits in a dwelling?
- Series Circuit. A series circuit has only one path for electricity to flow from one point to another. …
- Parallel Circuit. A parallel circuit has multiple paths for electricity to flow from one point to another. …
- Series-Parallel Circuit. …
- Application to the Human Body.
The circuits must be 150V or less. You must provide support at intervals of not more than 18 in., if the cables are within 7 ft of the floor. You can’t install Types NPLFP, NPLFR, or NPLF in plenums or ducts.
Article first time published onWhat is the maximum voltage rating of Plfa cable?
The cable shall have a voltage rating of not less than 300 volts. The cable shall have a temperature rating of not less than 60°C (140 °F).
What is a Class 1 electrical circuit?
A class 1 circuit is the portion of the wiring system between the load side of the overcurrent protection device (OCPD) or the power-limited supply and the connected load. … Class 1 circuits can be 600 volts or less, but 120 volts are more common and are usually preferred by OSHA inspectors for safety reasons.
What is a non ferrous non magnetic metal that has no heating due to hysteresis heating?
Informational Note: Because aluminum is not a magnetic metal, there will be no heating due to hysteresis; however, induced currents will be present. They will not be of sufficient magnitude to require grouping of conductors or special treatment in passing conductors through aluminum wall sections.
What is linear power supply?
A linear power supply is a power supply unit (PSU) that does not contain any switching or digital components. It has some outstanding characteristics compared to switching PSUs such as very low noise and ripple, immunity from mains-borne noise, simplicity, robustness, ease of design, and repair.
What is a Class 3 power supply?
Class 3 circuits limit the output power to a level that usually will not initiate fires. But, they can and do operate at higher voltage levels and, therefore, can present a shock hazard.
What does Class 2 wiring mean?
Class 2 In-Wall Rated Wire provides an extra layer of installation that is more resistant to cracking or melting, and is approved by the NEC to be installed inside walls. Lighting. As we mentioned earlier, all low-voltage lighting fixtures must be certified by an NRTL to pass inspection.
What is a Class 3 transformer?
Class 2 and Class 3 transformers are by definition, inherently limited, (self-limiting by impedance or PTC devices) or non-inherently limited, (relying on over current and or over temperature protection). … Class 3 Non-Inherently Limited transformer maximum voltage is 150V.
Do doorbell wires have power?
Doorbells get their power from the home’s electrical system. … The transformer is a metal box with two terminals connected to the doorbell wires. It takes the standard electrical voltage in your home, in most cases 110 to 120 volts, and lowers it to about 10 to 24 volts.
Do doorbells use electricity?
When you press a doorbell button, you complete an electrical circuit that allows household electricity to flow through the doorbell’s internal electromagnet. The magnetic field generated by the electromagnet is then used to power a mechanism that creates the doorbell sound. Doorbells are low-voltage devices.
Can you get shocked from doorbell wires?
If you come in contact with the wires, the doorbell circuit will not give you a shock. A transformer reduces the 120-volts carried by most electrical circuits to the 10 to 16volts needed to run the doorbell.
Can dining room and kitchen be on the same circuit?
At least two small-appliance branch circuits are required to feed the receptacles that serve countertop surfaces in a kitchen. … Any of the circuits feeding kitchen countertop receptacles, regardless of the number, can also supply receptacles in the pantry, breakfast nook, dining room and in the same kitchen.
What are the 4 parts of a circuit?
Every electric circuit, regardless of where it is or how large or small it is, has four basic parts: an energy source (AC or DC), a conductor (wire), an electrical load (device), and at least one controller (switch). Visualize what happens when you switch on a room light.
Which type of circuit must the one used at home be?
Most standard 120-volt household circuits in your home are (or should be) parallel circuits. Outlets, switches, and light fixtures are wired in such a way that the hot and neutral wires maintain a continuous circuit pathway independent from the individual devices that draw their power from the circuit.
Why is earthing necessary?
Earthing is used to protect you from an electric shock. It does this by providing a path (a protective conductor) for a fault current to flow to earth. It also causes the protective device (either a circuit-breaker or fuse) to switch off the electric current to the circuit that has the fault.
What is Class A circuit?
A circuit that is wired in Class A will have a pair of wires going out from panel, through all the devices, and returning to the panel to a separate set of terminals. The redundancy of a Class A pathway allows it to perform under more adverse conditions.
Does Class 2 wiring require conduit?
Class 2 and Class 3 The NEC does not require you to install Class 2 and 3 in a raceway. But, if you do install them in a raceway, you should do so per the BICSI Cabling Installation Manual. This installation guideline recommends that raceway runs: Be limited to 100 ft.
Does fire alarm wiring need to be in conduit?
I am often asked do I need conduit when installing fire alarm wiring? … When installing a fire alarm system according to NFPA and NEC 90 articles, any fire alarm wiring below 7 feet or in non-accessible areas must be installed in a metallic raceway. This includes behind drywall walls or hard ceiling surfaces.
Should fire alarm cable be in conduit?
Fire alarm cables should not be installed within the same conduit as the cables of other services, to avoid the risk of mechanical damage. … MICS and SWA cables may be used throughout all parts of a fire detection and alarm system without additional mechanical protection, except in particularly arduous conditions.
Can you run fire alarm cables with data cables?
Communications raceways are now permitted for use with Class 2 and Class 3 cables (Article 725), power-limited fire alarm cables (Article 760), communications cables (Article 800), CATV cables (Article 820) and low-powered network-powered broadband communications cables (Article 830).
Which of the following cable types may be used for a power-limited fire alarm circuit in the vertical run of a riser?
1) FPL which is a power-limited fire alarm riser cable is usually the least expensive because it is the most basic type of fire alarm cable and is also recognized by the NEC (National Electric Code). FPLR cables are suitable for use in a vertical run through a shaft or from floor to floor within a building.
Is fire alarm cable rated for wet locations?
Cable used in a wet location shall be listed for use in wet locations or have a moisture-impervious metal sheath. Non-power-limited fire alarm cables shall have a temperature rating of not less than 60°C (140°F).
