What is a packaged air conditioning unit?
What is a packaged air conditioning unit?

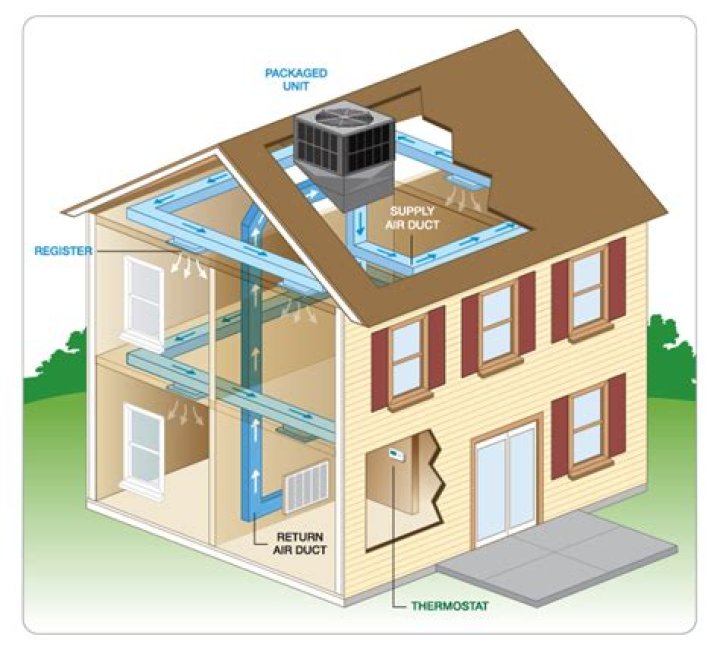

A package HVAC unit combines multiple units, such as an air conditioner and heater, into a single unit. The unit is usually placed outside. Split systems, on the other hand, divide each system into its own unit, so your heater and air conditioner are separate.
What is air conditioning simple definition?
noun. a system or process for controlling the temperature, humidity, and sometimes the purity of the air in an interior, as of an office, theater, laboratory, or house, especially one capable of cooling.
What is the function of an airconditioning unit?
The air conditioner pulls heat out of the air in your home, cools it over a set of cold pipes (an evaporator coil), and releases the cool air into your home. The evaporator coil remains cold thanks to a liquid refrigerant that absorbs hot air and changes it to gas.
What unit is used to measure air conditioner?
Ton is the commonly used unit of measure for rating an air conditioner. A ton is the cooling capacity of an air conditioning system. One ton is equal to the amount of heat required (288,000 Btu) to melt one ton of ice in a 24-hour period. A one-ton air conditioner is rated at 12,000 Btu per hour (288,000/24).
What is a packaged system?
Packaged systems are all-in-one solutions, with most of the components for heating and/or cooling housed in a single cabinet.
How do packaged units work?
Packaged Units Are Very Similar to Split Systems The way they heat/cool works on the same principal and using identical components. A compressor places refrigerant under high pressure that makes it circulate between two sets of coils. In the other coil, the refrigerant goes through evaporation and absorbs heat.
What kind of machine is an air conditioner?
An air conditioner is a system or a machine that treats air in a defined, usually enclosed area via a refrigeration cycle in which warm air is removed and replaced with cooler air. In construction, a complete system of heating, ventilation, and air conditioning is referred to as HVAC.
What are the classification of air conditioning?
Individual air conditioning systems can be classified into two categories: Room air conditioner (window-mounted) Packaged terminal air conditioner (PTAC), installed in a sleeve through the outside wall.
How does air conditioning unit works during summer?
So how does a typical air conditioning unit work and keep you sane during the heat of summer? The basic concept is that a chemical called a refrigerant loops from inside the home to outside and back again, absorbing and casting out heat in the process.
What is the meaning of 12000 BTU?
Twelve thousand (12,000) BTUs equals one ton. This term is more often used when talking about Air Conditioners, Refrigeration Systems, Heat Pumps, and Geothermal systems. A typical home would need somewhere around 36,000 BTUs, or 3 TONs, of cooling per hour on a very hot day.
How do I calculate air conditioner size?
To calculate the size, simply multiply the length times the width of the room or area to be cooled. Then, as a practical number, multiply that total times 25 BTU.
