What is a pier and curtain wall foundation

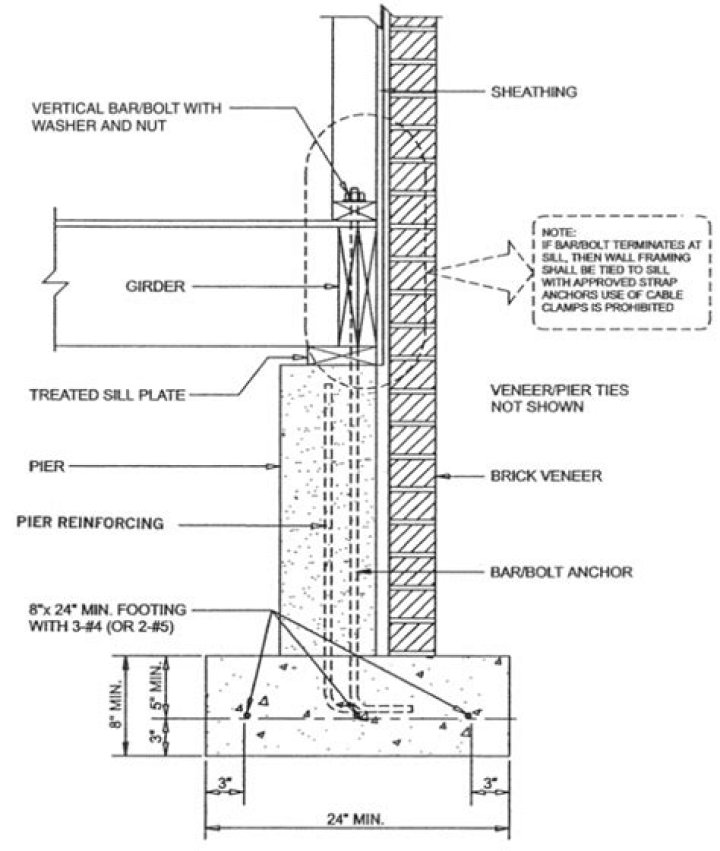

Pier and Curtain Foundation – a foundation system where load bearing piers are spaced around the footing with a thin non load bearing curtain wall filling in spaces between the piers.

What does it mean to pier A foundation?

Using Piers to Fix Concrete Foundations. … Piling or piering is the technique of driving steel pipe pilings to remedy failing building foundations and to correct foundation settlement. Push piers consist of sections of galvanized or epoxy-coated steel pipe that are driven into the soil with a hydraulic ram.

Are pier and beam foundations bad?

Today, pier and beam foundations are not used in new homes, primarily because of the cost factor. Even though they do make a stable foundation, a downside to them is their tendency to deteriorate. Since repairing them is less expensive than a slab foundation, they are still a favorite.

What is a post and piers foundation?

A post and pier foundation—also sometimes called a pier and beam foundation—is one of two major types of home foundations. … Spanning up from the concrete piers are either concrete or wooden posts, and along the tops of the posts run horizontal wooden beams that provide the bed on which the structure will be built.

What is the difference between footings and piers?

A pier is a concrete columns that’s cast atop of a footing and is connected to the footing by steel rebar. … When pouring a footing that will support a pier, rebar is placed into the footing, which extends vertically out of the surface of the footing, according to the BestDeckSite website.

What are the 3 types of foundations?

Foundation types vary, but likely your house or home’s addition does or will have one of these three foundations: full or daylight basement, crawlspace, or concrete slab-on-grade.

Is pier foundation a deep foundation?

Pier foundation is a type of deep foundation that basically consists of a cylindrical column of large diameter.

Can you put a pier and beam house on a slab?

A pier and beam foundation is installed in a concrete slab — it needs the concrete bed for support. This slab does not come in contact with the actual house, but it can certainly be repaired if cracks or flaws occur.

What is the cheapest type of foundation?

Concrete Slab Cost Concrete slabs are generally the cheapest type of foundation to install. Because they’re built slab-on-grade, they don’t require much excavating or ongoing maintenance, and they typically don’t promote moisture problems.

Is a pier foundation considered permanent?

Post and pier homes, manufactured homes, modular homes, and mobile homes are just a few homes supported by piers. Furthermore, piers can be made from stacking concrete blocks. So, often you will find piers considered a permanent foundation.

Article first time published on

Why are pier foundations more expensive?

Disadvantage: Pier and beam foundations often cost more due to the added time and expertise involved in the construction process. However, if you are considering purchasing an older home with a pier and beam foundation you won’t have to worry about construction costs since the home was built years ago.

Which is better slab foundation or pier and beam?

While pier & beam systems do create very stable foundations, and are preferable in some situations, they can deteriorate over time. However, they are usually easier and less expensive to repair than a slab foundation. It’s also easier to install, repair and add plumbing with this kind of system.

Where can you use pier foundation?

As stiff clays offer a lot of resistance when driving a bearing pile, pier foundations can be conveniently used in such situation. It is used if the house is built from log, timber, frame as the pillars are small relative to other foundations. If structure needed to be built on a slope, pier foundation is used.

What does a pier do?

A pier is a raised structure that rises above a body of water and usually juts out from its shore, typically supported by piles or pillars, and provides above-water access to offshore areas. Frequent pier uses include fishing, boat docking and access for both passengers and cargo, and oceanside recreation.

How much does it cost to pier A foundation?

Piering cost Hydraulic piers are a long-term solution for stabilizing foundations that have shifted. Each pier costs around $1,340 and repairs for an average-size home require 8 to 10 piers. This puts the cost for this method between $10,720 and $13,400.

How much does a post and pier foundation cost?

Pier & Beam Foundation Cost Pier and beam foundations, also called post and pier, cost $8,000 to $15,000 or $6 to $12 per square foot. They were the most common type of foundation before home builders started installing slab-on-grade foundations in the 1960s.

How is a house built on piers?

A post-and-pier house is built on wooden posts or concrete piers set into the ground to bear the weight of the house. … To best withstand the effects of earthquakes, post-and-pier houses should receive a new continuous-perimeter foundation, with any cripple walls bolted and braced.

Is pier foundation the same as pile?

The main differences between the pier and pile foundation are given below. In pile foundation, the loads are transferred by means of vertical timber, concrete or steel. Pier foundation consists of cylindrical columns to support and transfer large superimposed loads to firm strata. … Pier foundations are of shallow depth.

Are piles and piers the same thing?

Very similar to piles, piers are also deep foundation elements which are used to provide structural support. Piers, however, will invariably include the use of concrete/masonry and have a larger minimum-diameter than that of piles. There is no specific diameter at which a pile would become a pier.

What is the difference between caissons and piles?

Caissons are watertight structures made up of wood, steel or reinforced concrete built above the ground level and then sunken into the ground. Pile foundation is a type of deep foundation, in which the loads are taken to a low level by means of vertical timber, concrete or steel. … Pile doesn’t have a footing.

What type of house foundation is best?

Slab – The Most Popular Foundation Type Because a slab is by far the most cost-effective choice, customers flock to this budget-friendly option. It’s quick and easy, as far as foundations go – a slab can often be poured directly on the ground or on a bed of gravel.

Is a crawl space or slab better?

Slabs resist moisture but crack more easily when soil shifts. Crawl spaces work better on sloped properties but cost more. Slabs provide more durability, while crawl spaces hold up better in earthquake- and flood-prone areas.

What are the 6 types of foundation?

• Shallow foundation. Individual footing or isolated footing. Combined footing. Strip foundation. Raft or mat foundation.
• Deep Foundation. Pile foundation. Drilled Shafts or caissons.

Is pier and beam cheaper than slab?

Concrete slabs can be constructed very easily and are cheaper than pier and beam foundations. However, you should know that repairing and maintaining a concrete slab can be more expensive in the long run than taking care of a pier and beam foundation.

How much does a 1500 sq foot foundation cost?

Square FeetPouring LaborAverage Total1,000$2,600$6,4101,200$3,120$7,6921,500$3,900$9,6152,400$6,240$15,384

How much does it cost to pour a 24x24 slab of concrete?

A typical 24×24 garage slab costs between $3,057 and $5,944 with prices ranging from $5.31 to $8.31 per square foot for a 4” reinforced slab of concrete, and $6.83 to $10.32 per square foot for a 6” slab of reinforced concrete.

How deep are pier and beam foundations?

These foundations sit 20-30 inches above ground level, making the homes they support look bigger. Homes with pier and beam foundations don’t have basements and typically have crawlspaces that can be accessed from the home’s exterior.

Is pier and beam the same as crawl space?

Pier and beam foundations are one of the oldest types of foundations, typically built prior to the 1960s. With this type of foundation, the floor of the home is elevated around 18 inches off the ground, supported by concrete piers or blocks. This space creates what is typically called a crawl space.

How long do pier and beam foundations last?

How Long Should Foundation Piers Last? A pier and beam foundation lifespan depends on the quality of materials and its installation. Some concrete and steel beams might last 75 years or longer, depending on their thickness and a property’s soil conditions.

What is a mobile home pier?

Footers and piers create the foundation that will support your mobile home once it is placed on a lot. Typically, the footers are made of concrete and the piers are cinder blocks that are stacked and fastened with mortar. … The piers will be built to the height of the mobile home frame to provide support to the floors.

What is not a permanent foundation?

Non-permanent foundations can be detached from your home, meaning they are on the whole easier to transport. … Slab Foundations – This type of foundation comprises of a single slab of poured concrete. The home will rest on the slab using piers.
