What is a preset variable resistor?
What is a preset variable resistor?

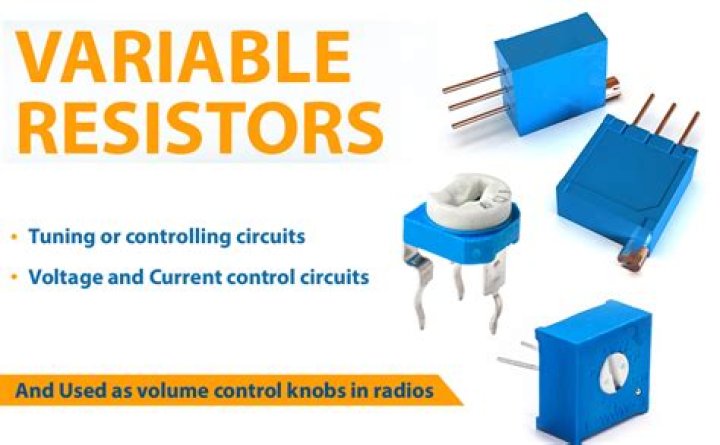

Presets are miniature versions of standard variable resistors. They are designed to be mounted directly onto circuit boards and adjusted only when the circuit is built. For example they may be used to set the frequency of an alarm tone or the sensitivity of a light-sensitive circuit.
How do you represent a variable resistor?
The variable resistor is represented by a zig-zag line and an arrow across (or above) it, like that shown in the figure below.
What are standard resistor symbols?
2.3 Resistor Symbols and Marking Symbols In general, resistors are usually represented by symbols such as R, RN, RF, and FS. In the circuit, the symbol of the fixed resistor and trimming resistor is R, and the symbol of the potentiometer is RP.
What is a rheostat symbol?
The zigzag lines with three terminals represent the American standard symbol of rheostat and the rectangular box with three terminals represents the international standard symbol of rheostat.
Is mark of variable resistor?
The resistance value and type of track are marked on the resistor itself. For example when a variable resistor is marked as 5K9 LIN means it has maximum 5.9 kilo Ω resistance and has a linear resistance track.
Which of the following is symbol of variable resistor?
Explanation: the variable resistor is represented by a zig zag line and an arrow across.
Why is the resistor symbol a zig zag?
The “zig-zag” pictorial for a resistor symbolizes that, for this component, the pathway for the current is not straight-away, but is impeded by a succession of abrupt changes in direction.
Which of the following symbols represent variable resistor?
the variable resistor is represented by a zig zag line and an arrow across.
What is a preset in circuits?
A preset is a three legged electronic component which can be made to offer varying resistance in a circuit. The resistance is varied by adjusting the rotary control over it. So whenever only the back terminals are used, a preset acts as a fixed resistor. Presets are specified by their fixed value resistance.
